00218OT3V145TC-S WEG AC Motors
Part#:00218OT3V145TC-S
Manufacturer:WEG
Alt. Part#:7909158885084
Product Lifecycle:Active
Get a quick Quote!

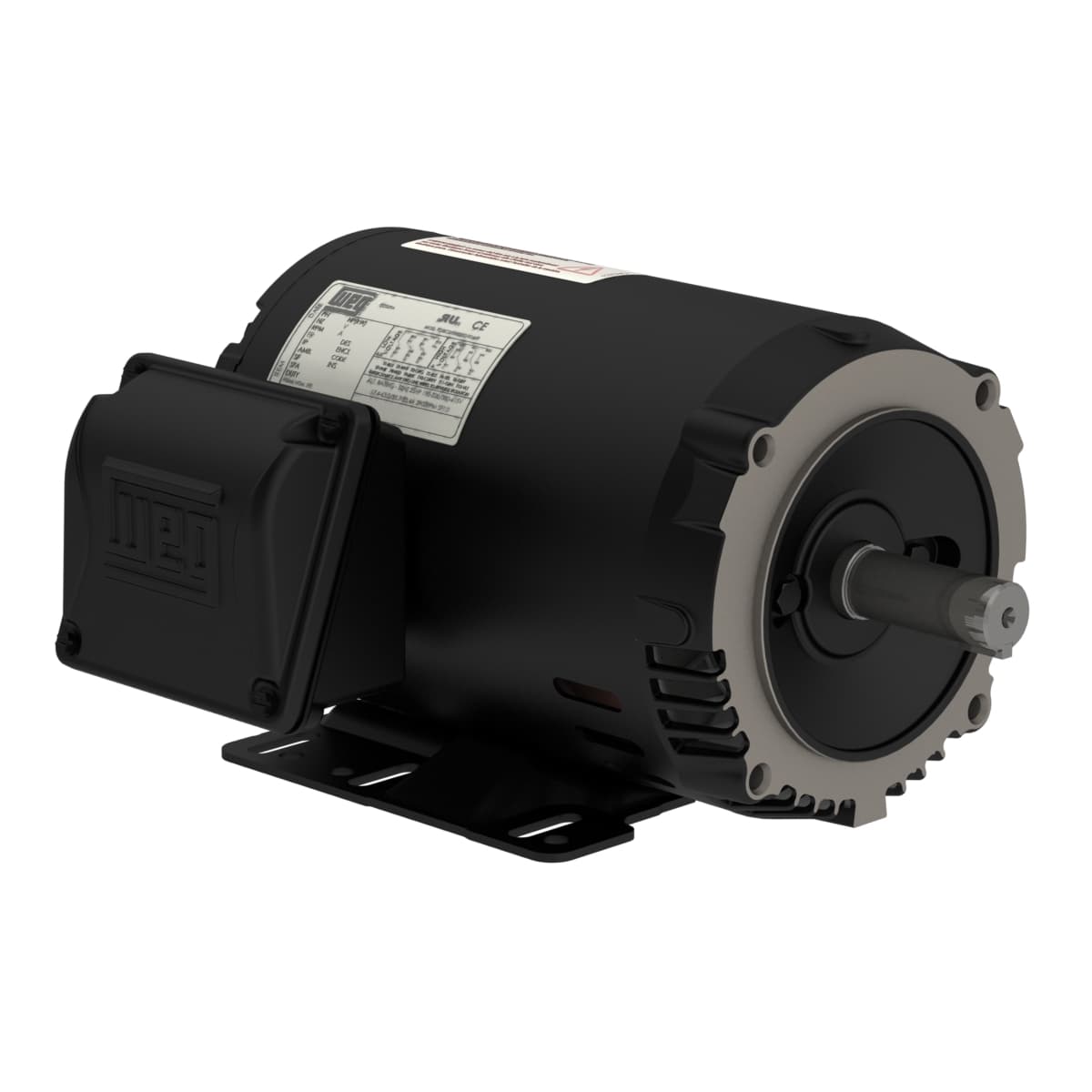

Rolled Steel NEMA Premium Efficiency 2 HP 4P 143/5TC 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00218OT3V145TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1740 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeC
- Number of Poles 4
- Design B
- Ambient temperature -20°C to +40°C
- Frequency 60 Hz
- Rated torque 6.04 ft.lb
- Starting Method Direct On Line
- Flange C
- Rated speed 1740 rpm
- Service factor 1.15
- Enclosure IC01 - ODP
- LRC 7.7x(Code K)
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 3.33 %
- Insulation Class F
- Noise level² 52.0 dB(A)
- Synchronous speed 1800 rpm
- L. R. Amperes 47.6/23.8 A
- Moment of inertia (J) 0.1168 sq.ft.lb
- Mounting F-1
- Output 2 HP (1.5 kW)
- Locked rotor torque 260 %
- Duty Cycle Cont.(S1)
- Output rating 2 HP
- Rated current 6.19/3.09 A
- Breakdown torque 320 %
- Rotation¹ Both (CW and CCW)
- Rated voltage 200/400 V
- No load current 3.16/1.58 A
- Approx. weight³ 40.2 lb
- Terminal box¹ Left position
- Frame 143/5TC
- Locked rotor time 30s (cold) 17s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Voltage 200/400 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00218OT3V145TC-S Specs
