00236ET3E56-S WEG AC Motors
Part#:00236ET3E56-S
Manufacturer:WEG
Alt. Part#:7909712038758
Product Lifecycle:Active
Get a quick Quote!

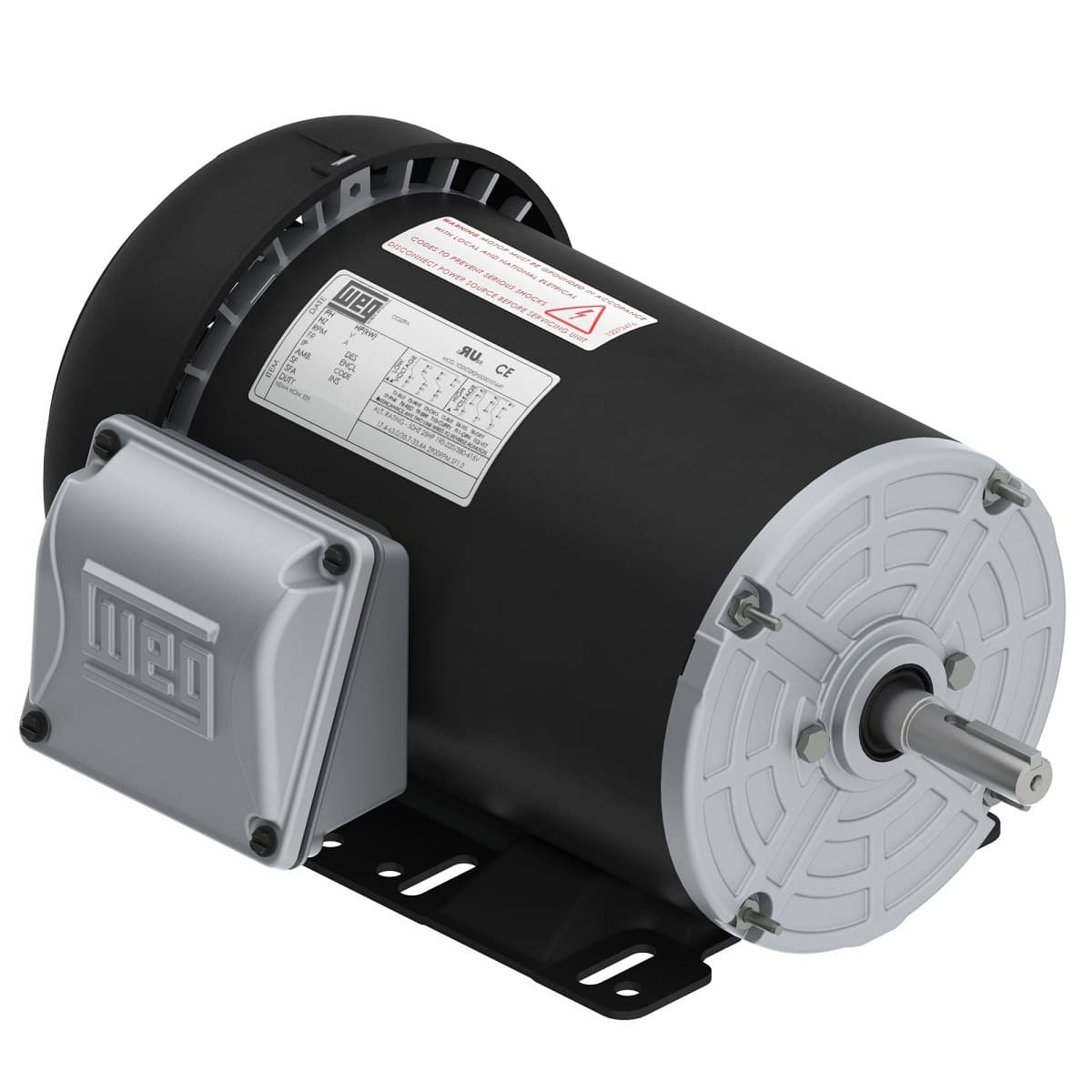

Rolled Steel Premium Efficiency 2 HP 2P 56H 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00236ET3E56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Output 2 HP (1.5 kW)
- Breakdown torque 300 %
- Duty Cycle Cont.(S1)
- Number of poles 2
- Frame 56H
- Ambient temperature -20°C to +40°C
- LRC 9.9x(Code L)
- Locked rotor time 23s (cold) 13s (hot)
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Rated current 4.94/2.47 A
- Temperature rise 80 K
- Voltage 230/460//190-220/380-415 V
- Frequency 60 Hz
- Design B
- Rotation¹ Both (CW and CCW)
- Moment of inertia (J) 0.1279 sq.ft.lb
- Service factor 1.15 (1.00 @ 208V)
- Enclosure IC411 - TEFC
- Noise level² 68.0 dB(A)
- Slip 2.22 %
- Locked rotor torque 250 %
- Mounting F-1
- L. R. Amperes 48.9/24.5 A
- Rated torque 2.98 ft.lb
- Flange Without
- Terminal box¹ Left position
- Rated voltage 230/460 V
- Number of Poles 2
- Starting Method Direct On Line
- Output rating 2 HP
- Rated speed 3520 rpm
- No load current 2.13/1.06 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Approx. weight³ 40.2 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00236ET3E56-S Specs
1-year warranty
