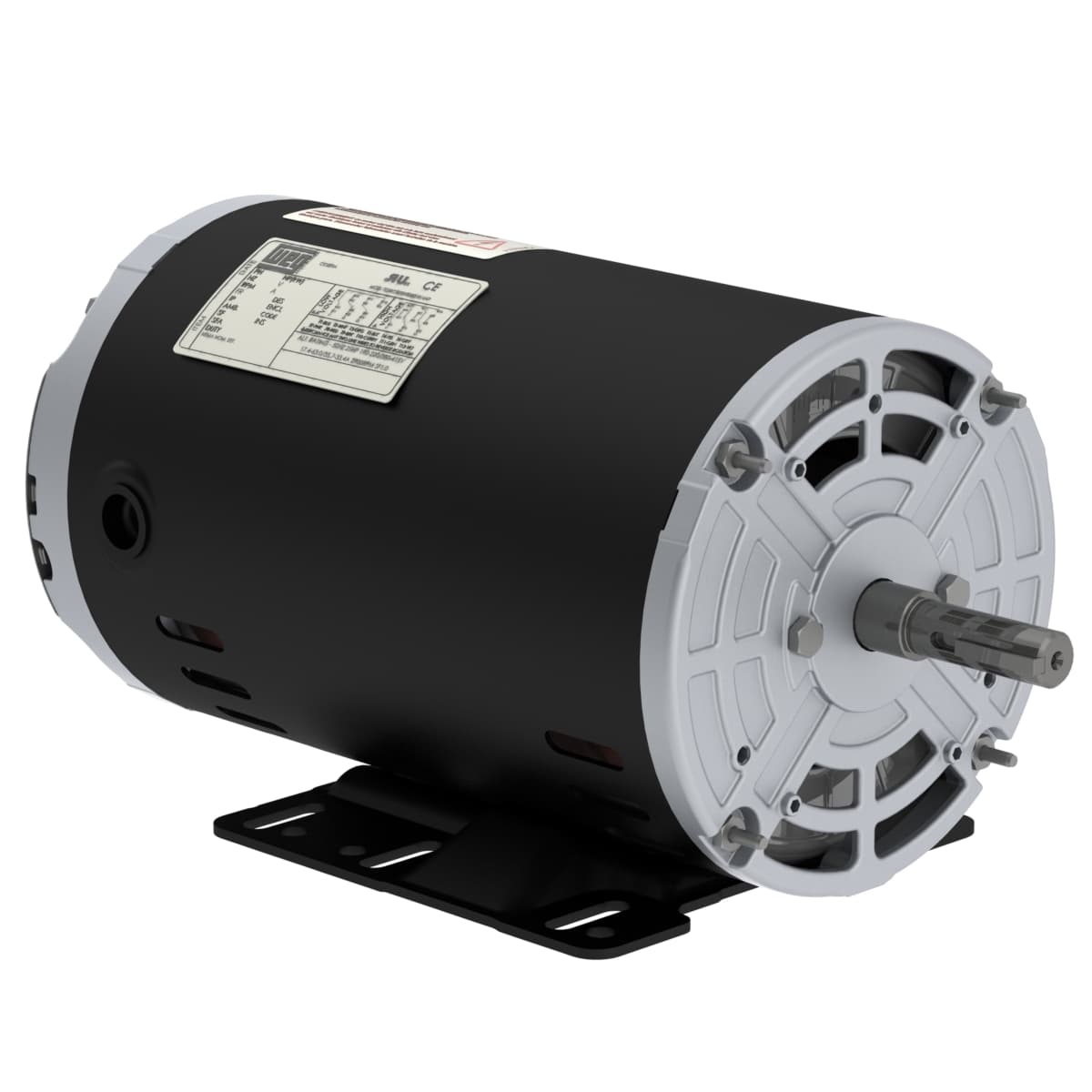

00236OT3E56-S WEG AC Motors
Part#:00236OT3E56-S
Manufacturer:WEG
Alt. Part#:7909158823291
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel Premium Efficiency 2 HP 2P 56H 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00236OT3E56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated speed 3510 rpm
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 35.7 lb
- Frame 56H
- Breakdown torque 330 %
- Starting Method Direct On Line
- Voltage 230/460//190-220/380-415 V
- Slip 2.50 %
- Moment of inertia (J) 0.1151 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Rated voltage 230/460 V
- Altitude 1000 m.a.s.l.
- Output rating 2 HP
- Output 2 HP (1.5 kW)
- Locked rotor time 25s (cold) 14s (hot)
- Noise level² 62.0 dB(A)
- L. R. Amperes 43.1/21.5 A
- Design A
- Enclosure IC01 - ODP
- Flange Without
- Frequency 60 Hz
- Rated torque 2.99 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 2
- No load current 1.83/0.917 A
- Service factor 1.15 (1.00 @ 208V)
- Standard NEMA MG-1
- LRC 8.9x(Code K)
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Rated current 4.84/2.42 A
- Insulation Class F
- Mounting F-1
- Terminal box¹ Without Terminal Box
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00236OT3E56-S Specs
1-year warranty
