00312OT3E213TC-S WEG AC Motors
Part#:00312OT3E213TC-S
Manufacturer:WEG
Alt. Part#:7909158530304
Product Lifecycle:Active
Get a quick Quote!

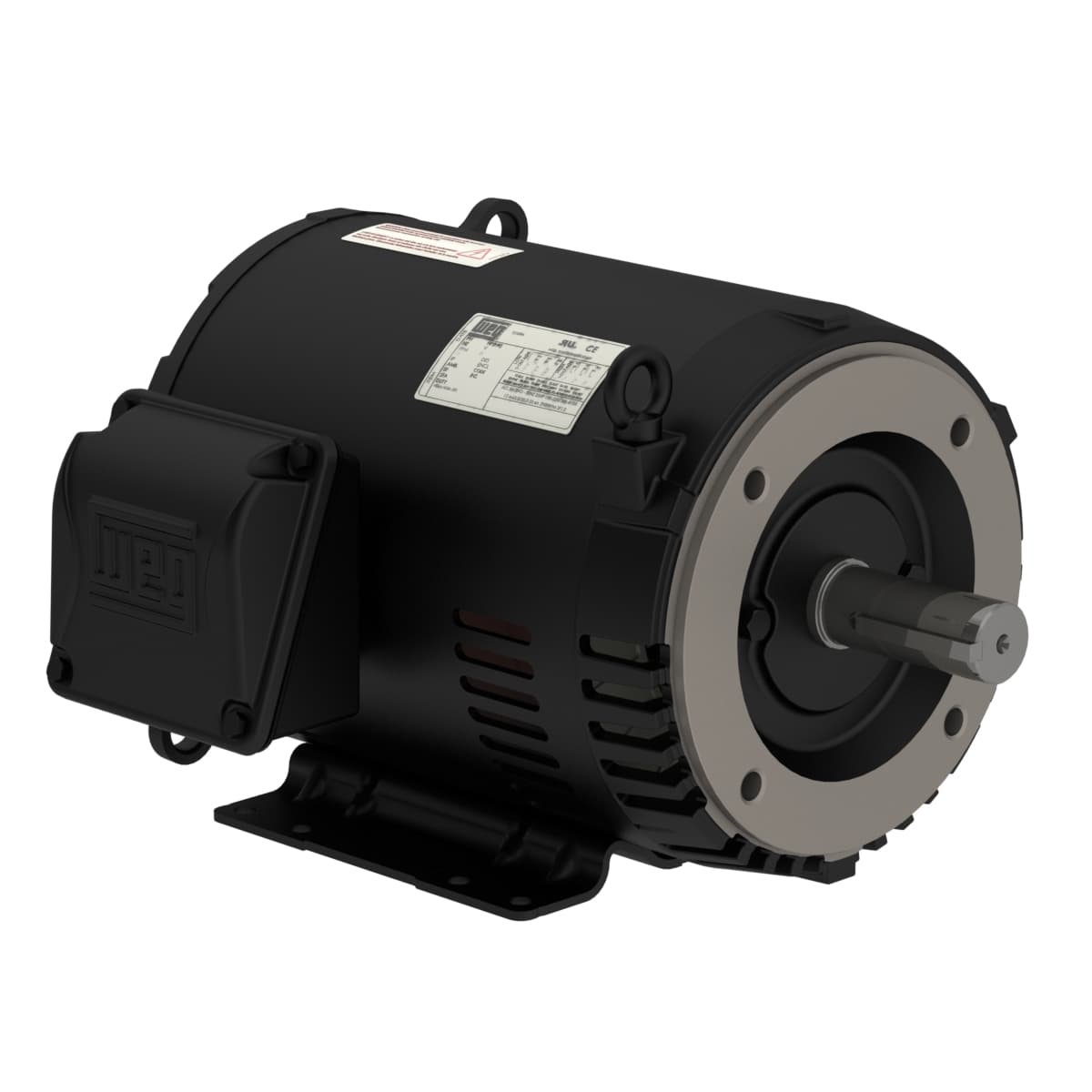

Rolled Steel NEMA Premium Efficiency 3 HP 6P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00312OT3E213TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- LRC 5.9x(Code H)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Locked rotor torque 210 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 98.3 lb
- Rated speed 1175 rpm
- No load current 4.58/2.29 A
- Enclosure IC01 - ODP
- Noise level² 55.0 dB(A)
- Flange C
- Number of Poles 6
- Insulation Class F
- Starting Method Direct On Line
- Slip 2.08 %
- Rated torque 13.4 ft.lb
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Frame 213/5TC
- Locked rotor time 70s (cold) 39s (hot)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 8.32/4.16 A
- Service factor 1.15
- Number of poles 6
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Synchronous speed 1200 rpm
- Output 3 HP (2.2 kW)
- Design B
- Voltage 230/460//190-220/380-415 V
- L. R. Amperes 49.1/24.5 A
- Moment of inertia (J) 0.8104 sq.ft.lb
- Mounting F-1
- Output rating 3 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00312OT3E213TC-S Specs
