00336OS1B182JM-S WEG AC Motors
Part#:00336OS1B182JM-S
Manufacturer:WEG
Alt. Part#:7909522782261
Product Lifecycle:Active
Get a quick Quote!

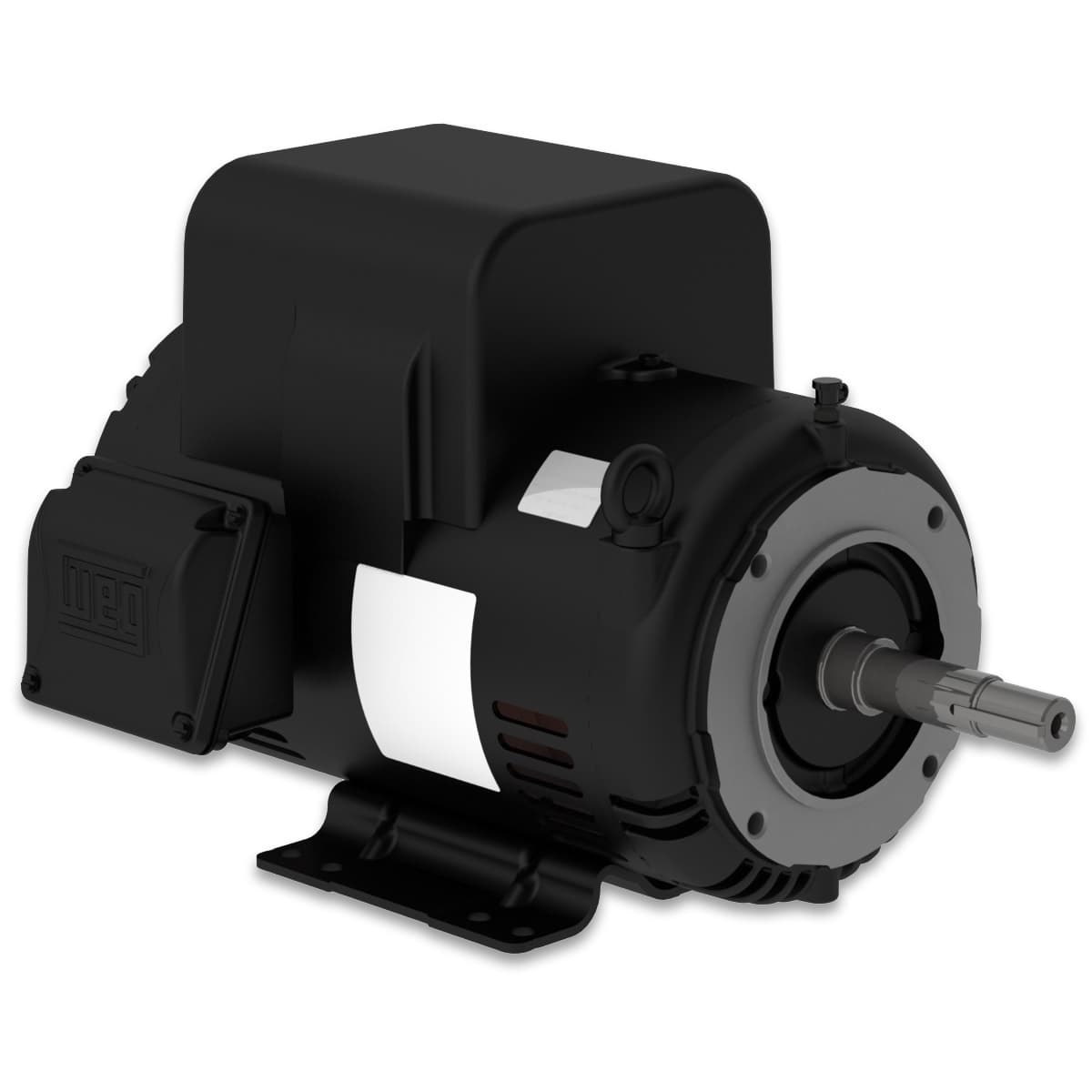

Rolled Steel JM Pump 3 HP 2P 182/4JM 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00336OS1B182JM-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage115/208-230 V
- Flange TypeC
- Output 3 HP (2.2 kW)
- Duty Cycle Cont.(S1)
- Flange C
- Number of Poles 2
- Temperature rise 80 K
- Voltage 115/208-230 V
- LRC 6.7x(Code H)
- Locked rotor time 19s (cold) 11s (hot)
- Standard NEMA MG-1
- L. R. Amperes 173/92.5-86.4 A
- Insulation Class F
- Approx. weight³ 75.0 lb
- Number of poles 2
- Rated voltage 115/208-230 V
- Breakdown torque 260 %
- Enclosure IC01 - ODP
- Rated current 25.8/13.8-12.9 A
- No load current 10.5/3.90-5.20 A
- Output rating 3 HP
- Rated speed 3510 rpm
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Frame 182/4JM
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Moment of inertia (J) 13.0 sq.ft.lb
- Rated torque 4.49 ft.lb
- Starting Method Direct On Line
- Slip 2.50 %
- Locked rotor torque 220 %
- Rotation¹ Both (CW and CCW)
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00336OS1B182JM-S Specs
1-year warranty
