00518ET3ER184TC-W22 WEG AC Motors
Part#:00518ET3ER184TC-W22
Manufacturer:WEG
Alt. Part#:7909018758251
Product Lifecycle:Active
Get a quick Quote!

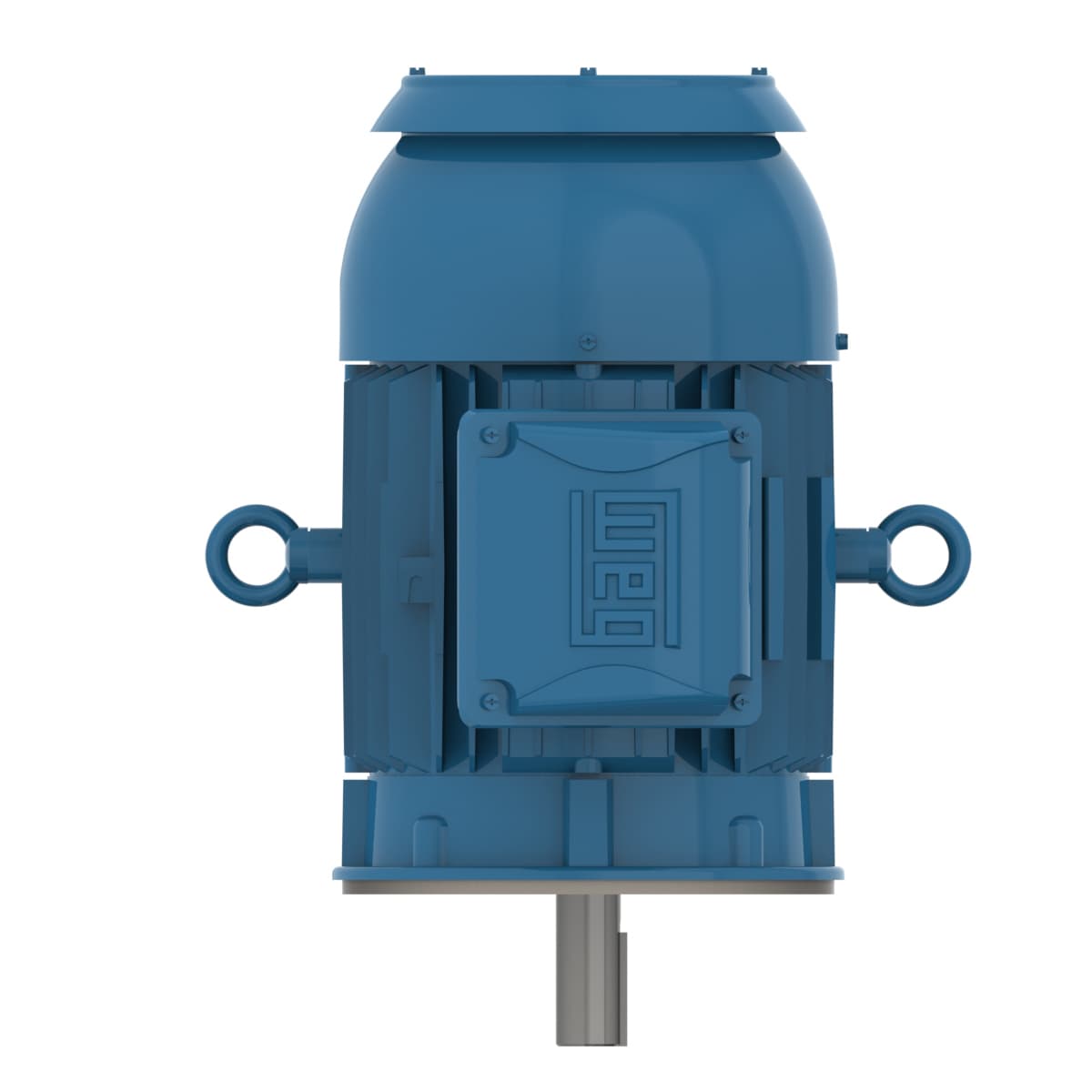

W22 NEMA Premium Efficiency 5 HP 4P 184TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 00518ET3ER184TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed1750 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Rated voltage 230/460 V
- Locked rotor torque 229 %
- Breakdown torque 290 %
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 97.4/48.7 A
- Frequency 60 Hz
- Moment of inertia (J) 0.4003 sq.ft.lb
- Locked rotor time 27s (cold) 15s (hot)
- Approx. weight³ 97.7 lb
- Insulation Class F
- Output 5 HP (3.7 kW)
- Rated torque 15.0 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Frame 184TC
- LRC 7.5x(Code J)
- Temperature rise 80 K
- Noise level² 56.0 dB(A)
- Slip 2.78 %
- Design B
- Enclosure IC411 - TEFC
- No load current 5.80/2.90 A
- Rated speed 1750 rpm
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Rated current 13.0/6.49 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 4
- Service factor 1.25
- Number of poles 4
- Output rating 5 HP
- Mounting W-6
- Flange C
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00518ET3ER184TC-W22 Specs
1-year warranty
