00518OT3V184TC-S WEG AC Motors
Part#:00518OT3V184TC-S
Manufacturer:WEG
Alt. Part#:7909322092478
Product Lifecycle:Active
Get a quick Quote!

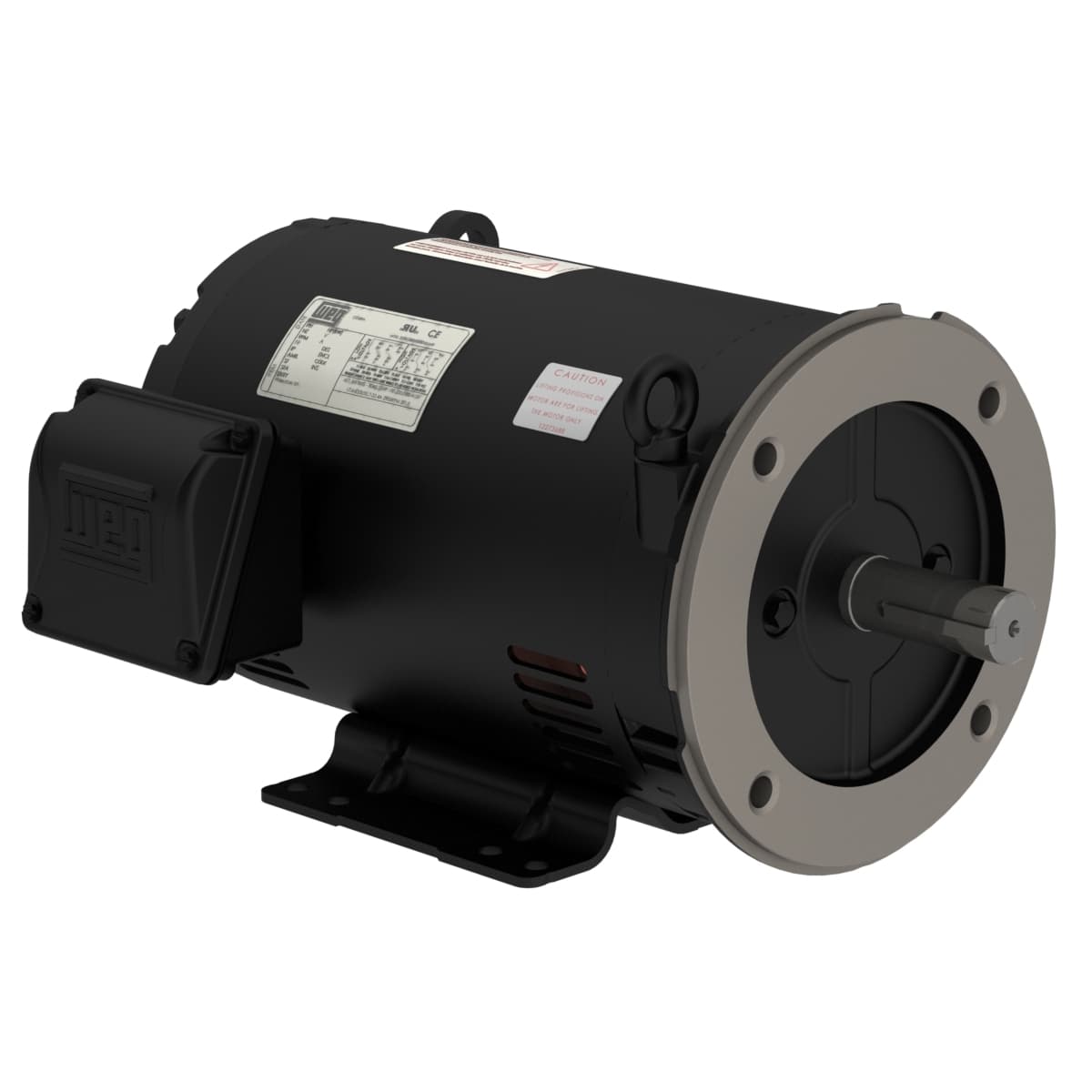

Rolled Steel NEMA Premium Efficiency 5 HP 4P 182/4TC 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00518OT3V184TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeC
- Output 5 HP (3.7 kW)
- No load current 7.24/3.62 A
- Duty Cycle Cont.(S1)
- Output rating 5 HP
- Rated current 14.6/7.28 A
- Locked rotor torque 200 %
- Mounting F-1
- Noise level² 55.0 dB(A)
- Rated voltage 200/400 V
- Breakdown torque 310 %
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Rated speed 1760 rpm
- Design B
- Ambient temperature -20°C to +40°C
- Flange C
- Number of Poles 4
- Rated torque 14.9 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- L. R. Amperes 105/52.4 A
- Insulation Class F
- Enclosure IC01 - ODP
- Slip 2.22 %
- Service factor 1.15
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Frame 182/4TC
- Locked rotor time 21s (cold) 12s (hot)
- Moment of inertia (J) 0.4003 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 88.8 lb
- Terminal box¹ Left position
- LRC 7.2x(Code J)
- Temperature rise 80 K
- Voltage 200/400 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00518OT3V184TC-S Specs
1-year warranty
