00526EP3QCT254VF1-W2 WEG AC Motors
Part#:00526EP3QCT254VF1-W2
Manufacturer:WEG
Alt. Part#:7909323997420
Product Lifecycle:Active
Get a quick Quote!

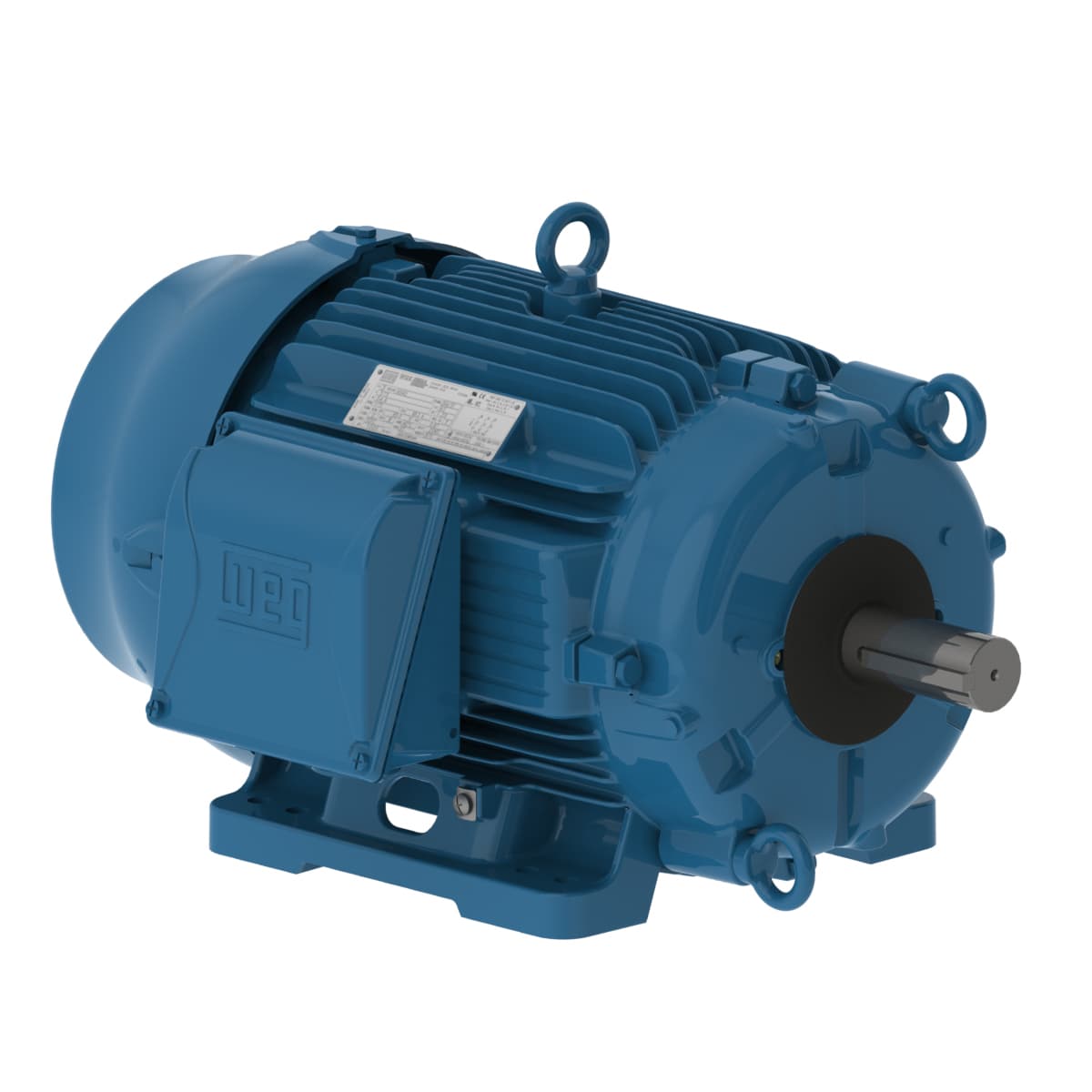

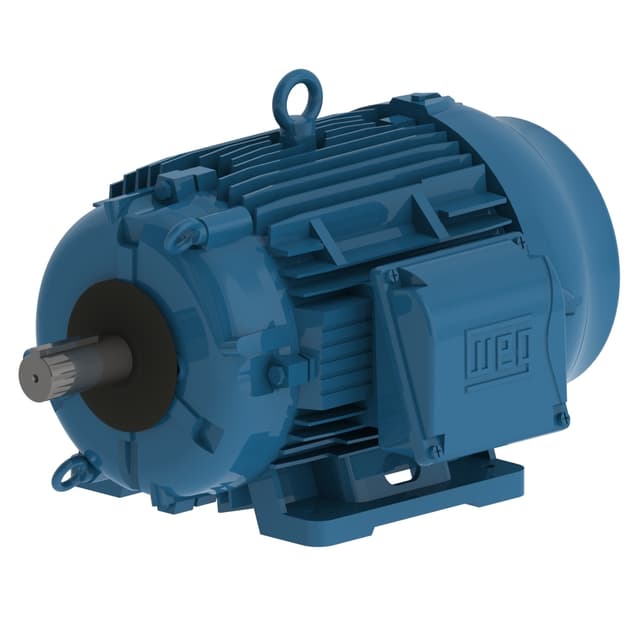

W22 Cooling Tower High Efficiency 1.25/5.0 HP 12/6P 254/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00526EP3QCT254VF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.25/5.0 HP
- Rated Speed587 rpm
- Number of Poles45632 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 9.17 A
- Locked rotor torque 160 %
- Breakdown torque 240 %
- Degree of Protection IP55
- Frame 254/6T
- Temperature rise 80 K
- Rated voltage 460 V
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated current 2.78 A
- Service factor 1.15
- Approx. weight³ 265 lb
- Rated speed 587 rpm
- Rated torque 11.2 ft.lb
- Rotation¹ Both (CW and CCW)
- Number of Poles 12/6
- Enclosure IC411 - TEFC
- Output 1.25 HP (0.92 kW)
- Locked rotor time 162s (cold) 90s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 460 V
- Slip 2.17 %
- LRC 3.3x(Code G)
- Moment of inertia (J) 3.92 sq.ft.lb
- Output rating 1.25/5.0 HP
- Duty Cycle Cont.(S1)
- No load current 2.30 A
- Synchronous speed 600/1200 rpm
- Mounting F-1
- Starting Method Direct On Line
- Flange Without
- Noise level² 51.0 dB(A)
- Standard NEMA MG-1
- Frequency 60 Hz
- Insulation Class F
- Number of poles 12/6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00526EP3QCT254VF1-W2 Specs
