00712OT3E254TC-S WEG AC Motors
Part#:00712OT3E254TC-S
Manufacturer:WEG
Alt. Part#:7909158647071
Product Lifecycle:Active
Get a quick Quote!

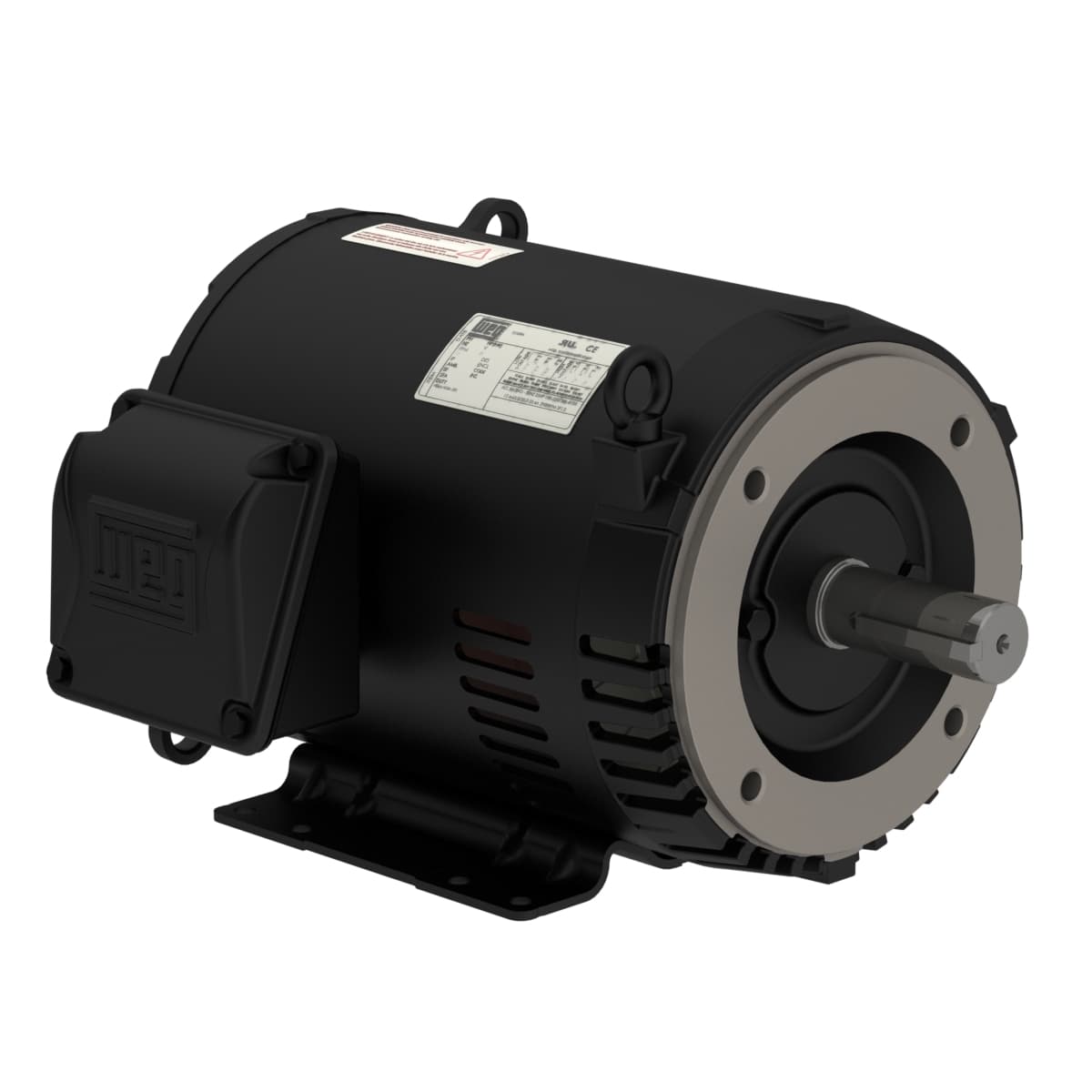

Rolled Steel NEMA Premium Efficiency 7.5 HP 6P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00712OT3E254TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- Rated speed 1175 rpm
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Number of Poles 6
- Duty Cycle Cont.(S1)
- Voltage 230/460//190-220/380-415 V
- Rated voltage 230/460 V
- Breakdown torque 229 %
- Approx. weight³ 201 lb
- Output 7.5 HP (5.5 kW)
- Design B
- Starting Method Direct On Line
- Flange C
- Frame 254/6TC
- No load current 10.7/5.37 A
- Locked rotor time 66s (cold) 37s (hot)
- Noise level² 59.0 dB(A)
- Output rating 7.5 HP
- L. R. Amperes 104/52.0 A
- Insulation Class F
- Enclosure IC01 - ODP
- LRC 5.1x(Code F)
- Service factor 1.15
- Mounting F-1
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Slip 2.08 %
- Rated torque 33.5 ft.lb
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated current 20.4/10.2 A
- Moment of inertia (J) 2.00 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1200 rpm
