00712OT3H254T-S WEG AC Motors
Part#:00712OT3H254T-S
Manufacturer:WEG
Alt. Part#:7909158473533
Product Lifecycle:Active
Get a quick Quote!

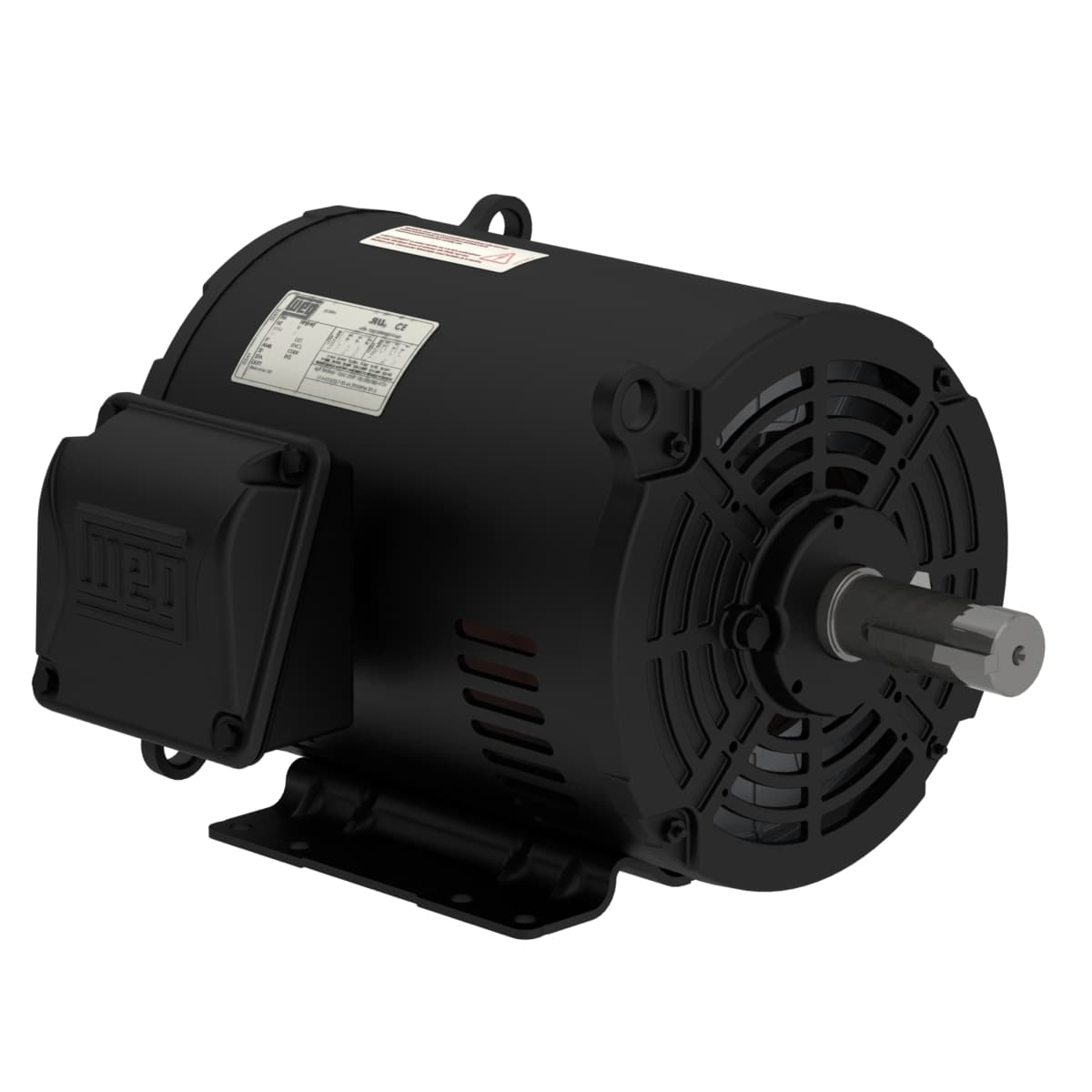

Rolled Steel NEMA Premium Efficiency 7.5 HP 6P 254/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00712OT3H254T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Locked rotor time 66s (cold) 37s (hot)
- Design B
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Output 7.5 HP (5.5 kW)
- Insulation Class F
- Standard NEMA MG-1
- Synchronous speed 1200 rpm
- Slip 2.08 %
- Service factor 1.15
- Enclosure IC01 - ODP
- Rated voltage 575 V
- Rated torque 33.5 ft.lb
- Mounting F-1
- Rated current 8.16 A
- No load current 4.29 A
- Voltage 575 V
- Frame 254/6T
- Moment of inertia (J) 2.00 sq.ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Rated speed 1175 rpm
- Locked rotor torque 200 %
- L. R. Amperes 41.6 A
- Starting Method Direct On Line
- Flange Without
- LRC 5.1x(Code F)
- Duty Cycle Cont.(S1)
- Output rating 7.5 HP
- Number of Poles 6
- Altitude 1000 m.a.s.l.
- Number of poles 6
- Frequency 60 Hz
- Breakdown torque 229 %
- Noise level² 59.0 dB(A)
- Approx. weight³ 186 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00712OT3H254T-S Specs
