00718OT3E213T-SGH WEG AC Motors
Part#:00718OT3E213T-SGH
Manufacturer:WEG
Alt. Part#:7909522668381
Product Lifecycle:Active
Get a quick Quote!

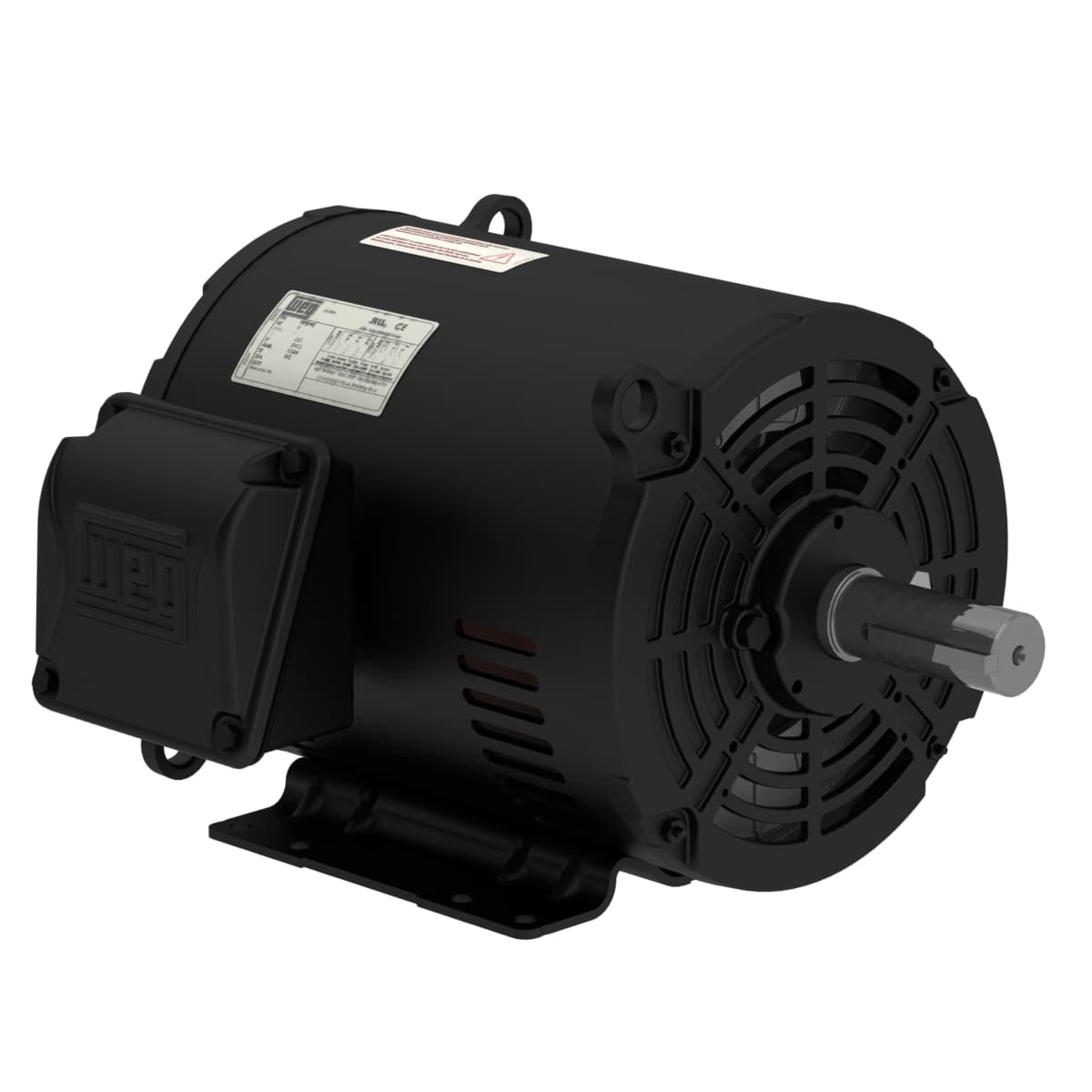

Rolled Steel NEMA Premium Efficiency 7.5 HP 4P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00718OT3E213T-SGH WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- L. R. Amperes 133/66.6 A
- Service factor 1.15
- Approx. weight³ 117 lb
- Frame 213/5T
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Moment of inertia (J) 1.03 sq.ft.lb
- Noise level² 59.0 dB(A)
- Terminal box¹ Left position
- No load current 8.79/4.39 A
- Insulation Class H
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Rated current 18.5/9.25 A
- Locked rotor time 23s (cold) 13s (hot)
- Number of poles 4
- Rated speed 1770 rpm
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Breakdown torque 320 %
- Mounting F-1
- Output rating 7.5 HP
- Output 7.5 HP (5.5 kW)
- LRC 7.2x(Code H)
- Ambient temperature -20°C to +40°C
- Voltage 230/460//190-220/380-415 V
- Frequency 60 Hz
- Rated torque 22.3 ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Slip 1.67 %
- Design B
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
