00736ET3E184TC-W22 WEG AC Motors
Part#:00736ET3E184TC-W22
Manufacturer:WEG
Alt. Part#:7891327849426
Product Lifecycle:Active
Get a quick Quote!

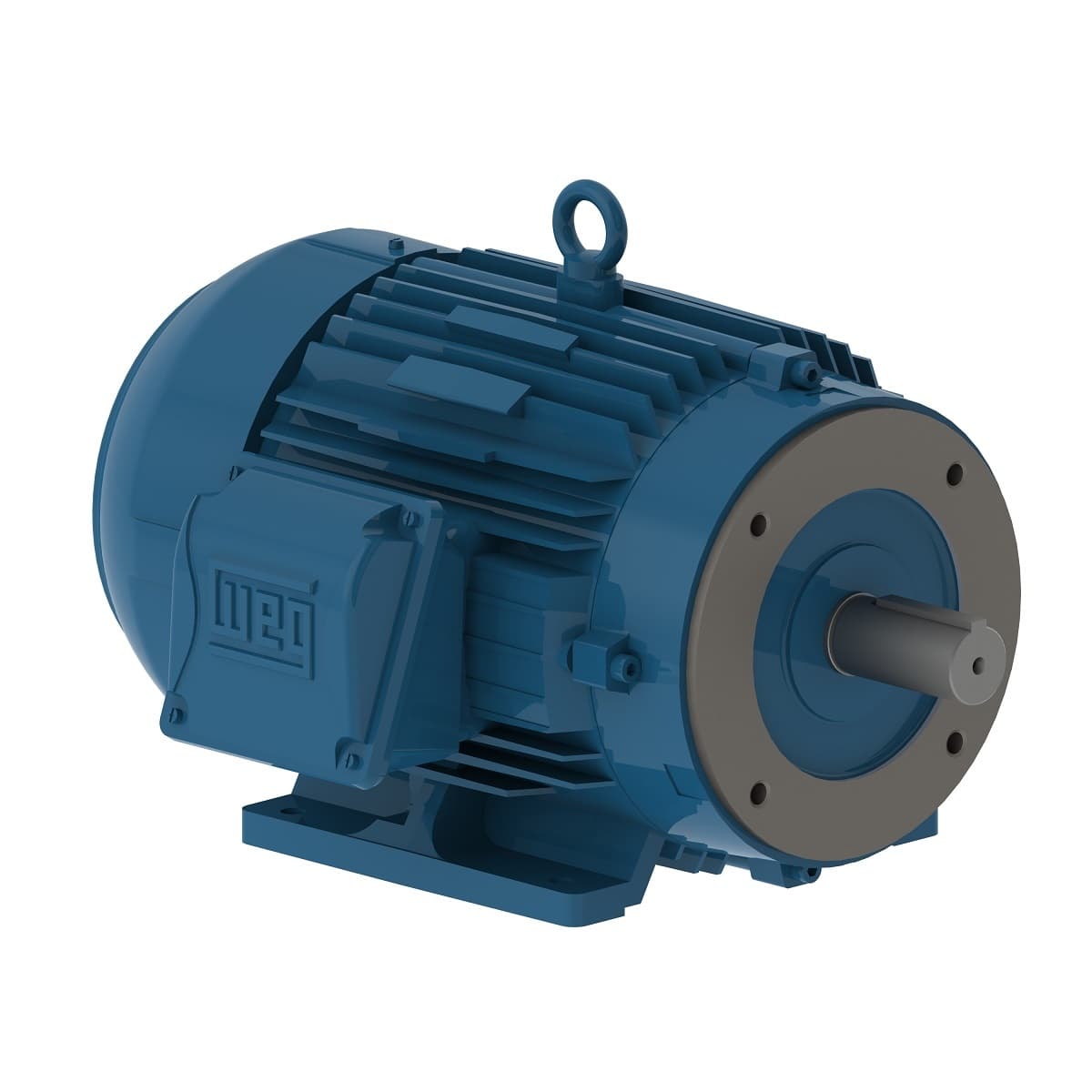

W22 NEMA Premium Efficiency 7.5 HP 2P 182/4TC 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00736ET3E184TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed3485 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Breakdown torque 330 %
- Slip 3.19 %
- Service factor 1.25
- Rated voltage 230/460 V
- Altitude 1000 m.a.s.l.
- Approx. weight³ 101 lb
- Number of Poles 2
- Moment of inertia (J) 0.2242 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated current 17.5/8.76 A
- Rated speed 3485 rpm
- Locked rotor time 30s (cold) 17s (hot)
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Frequency 60 Hz
- Noise level² 66.0 dB(A)
- Flange C
- Output rating 7.5 HP
- Output 7.5 HP (5.5 kW)
- Insulation Class F
- Starting Method Direct On Line
- LRC 8.2x(Code J)
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Locked rotor torque 270 %
- Enclosure IC411 - TEFC
- Frame 182/4TC
- No load current 5.80/2.90 A
- Mounting F-1
- Voltage 208-230/460//380 V
- Design A
- Standard NEMA MG-1
- L. R. Amperes 144/71.8 A
- Rated torque 11.3 ft.lb
- Degree of Protection IP55
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
