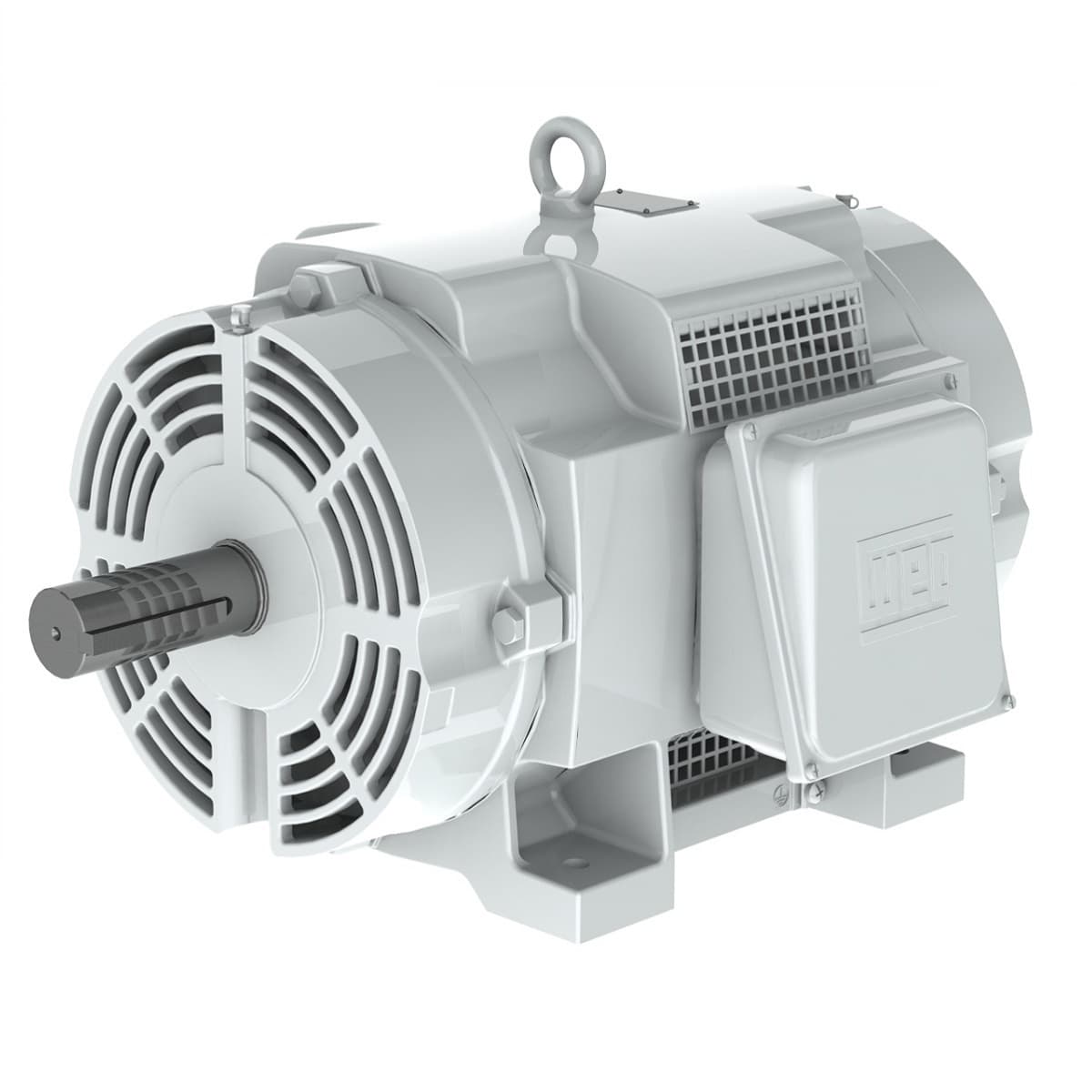

01012OS3EOW256T WEG AC Motors
Part#:01012OS3EOW256T
Manufacturer:WEG
Alt. Part#:7891327800984
Product Lifecycle:Active
Get a quick Quote!
ODP Standard Efficiency 10 HP 6P 256T 3Ph 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01012OS3EOW256T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed1110 rpm
- Number of Poles6 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Frame 256T
- Frequency 60 Hz
- Service factor 1.00
- Temperature rise 80 K
- Synchronous speed 1200 rpm
- Starting Method Direct On Line
- Locked rotor time 16s (cold) 9s (hot)
- Number of Poles 6
- Standard NEMA MG-1
- Slip 7.50 %
- Insulation Class F
- Locked rotor torque 300 %
- Duty Cycle Cont.(S1)
- Noise level² 57.0 dB(A)
- L. R. Amperes 179-162/81.0 A
- No load current 15.3-13.8/6.90 A
- Enclosure IC01 - ODP
- Terminal box¹ Right position
- Rated torque 47.3 ft.lb
- Rated voltage 208-230/460 V
- Approx. weight³ 260 lb
- Output 10 HP (7.5 kW)
- LRC 6.0x(Code H)
- Degree of Protection IP23
- Output rating 10 HP
- Rated current 29.9-27.0/13.5 A
- Breakdown torque 0 %
- Ambient temperature -20°C to +40°C
- Flange Without
- Rated speed 1110 rpm
- Moment of inertia (J) 3.41 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Mounting F-2
- Number of poles 6
- Design D
- Rotation¹ Both (CW and CCW)
- Voltage 208-230/460 V
