01012OT3E256T-W40 WEG AC Motors
Part#:01012OT3E256T-W40
Manufacturer:WEG
Alt. Part#:7909492247081
Product Lifecycle:Active
Get a quick Quote!

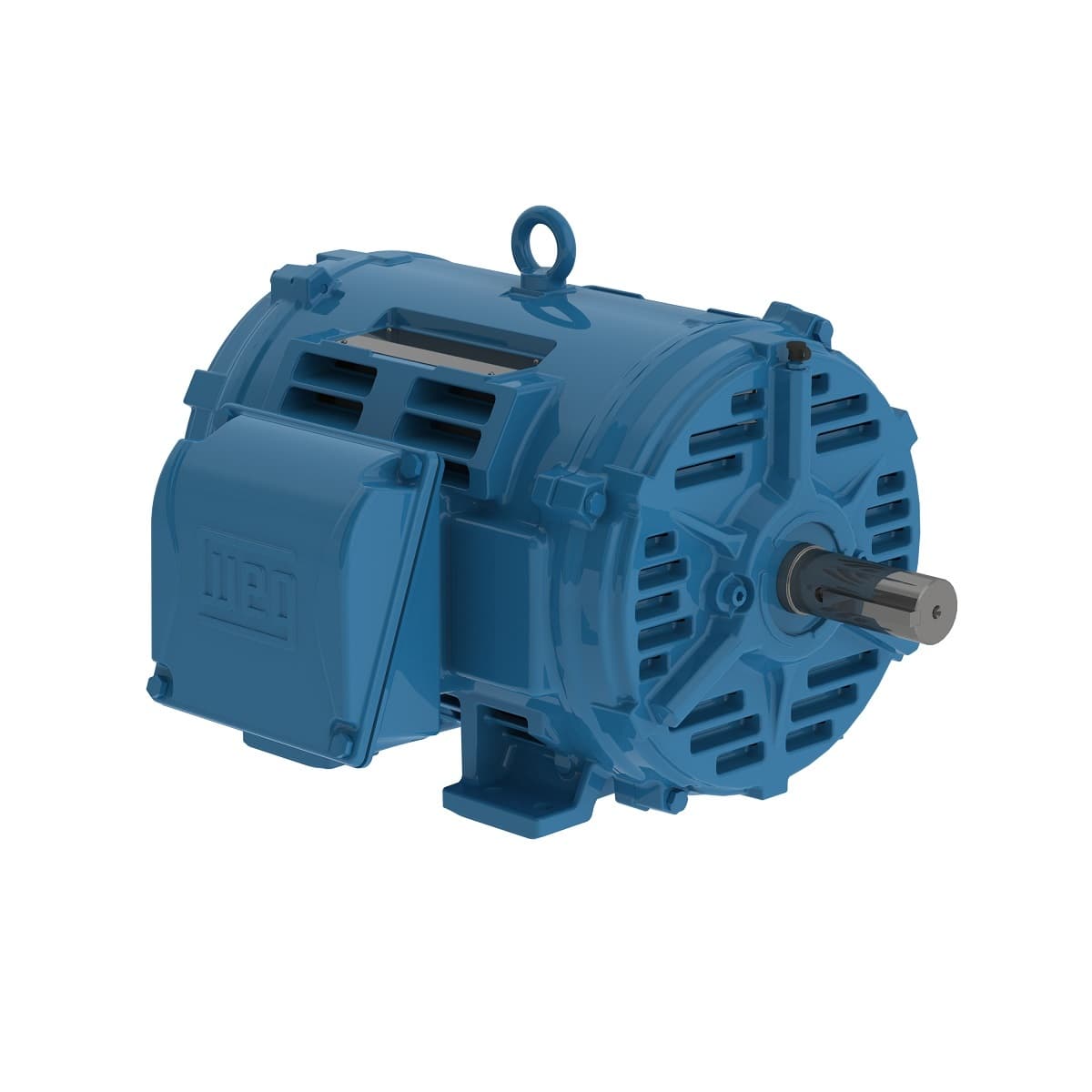

W40 NEMA Premium Efficiency 10 HP 6P 254/6T 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 01012OT3E256T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed1176 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated current 26.3/13.2 A
- Rated torque 44.7 ft.lb
- Rotation¹ Both (CW and CCW)
- Rated speed 1176 rpm
- Duty Cycle Cont.(S1)
- Synchronous speed 1200 rpm
- L. R. Amperes 174/86.9 A
- Temperature rise 80 K
- Number of poles 6
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Frequency 60 Hz
- Insulation Class F
- Noise level² 59.0 dB(A)
- Output rating 10 HP
- Output 10 HP (7.5 kW)
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Slip 2.00 %
- LRC 6.6x(Code H)
- Moment of inertia (J) 3.53 sq.ft.lb
- Enclosure IC01 - ODP
- Number of Poles 6
- Locked rotor time 28s (cold) 16s (hot)
- Mounting F-1
- Flange Without
- Design B
- Starting Method Direct On Line
- Approx. weight³ 229 lb
- Frame 254/6T
- No load current 13.8/6.90 A
- Degree of Protection IP23
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
