01018ET3H215T-W22 WEG AC Motors
Part#:01018ET3H215T-W22
Manufacturer:WEG
Alt. Part#:7891327161689
Product Lifecycle:Active
Get a quick Quote!

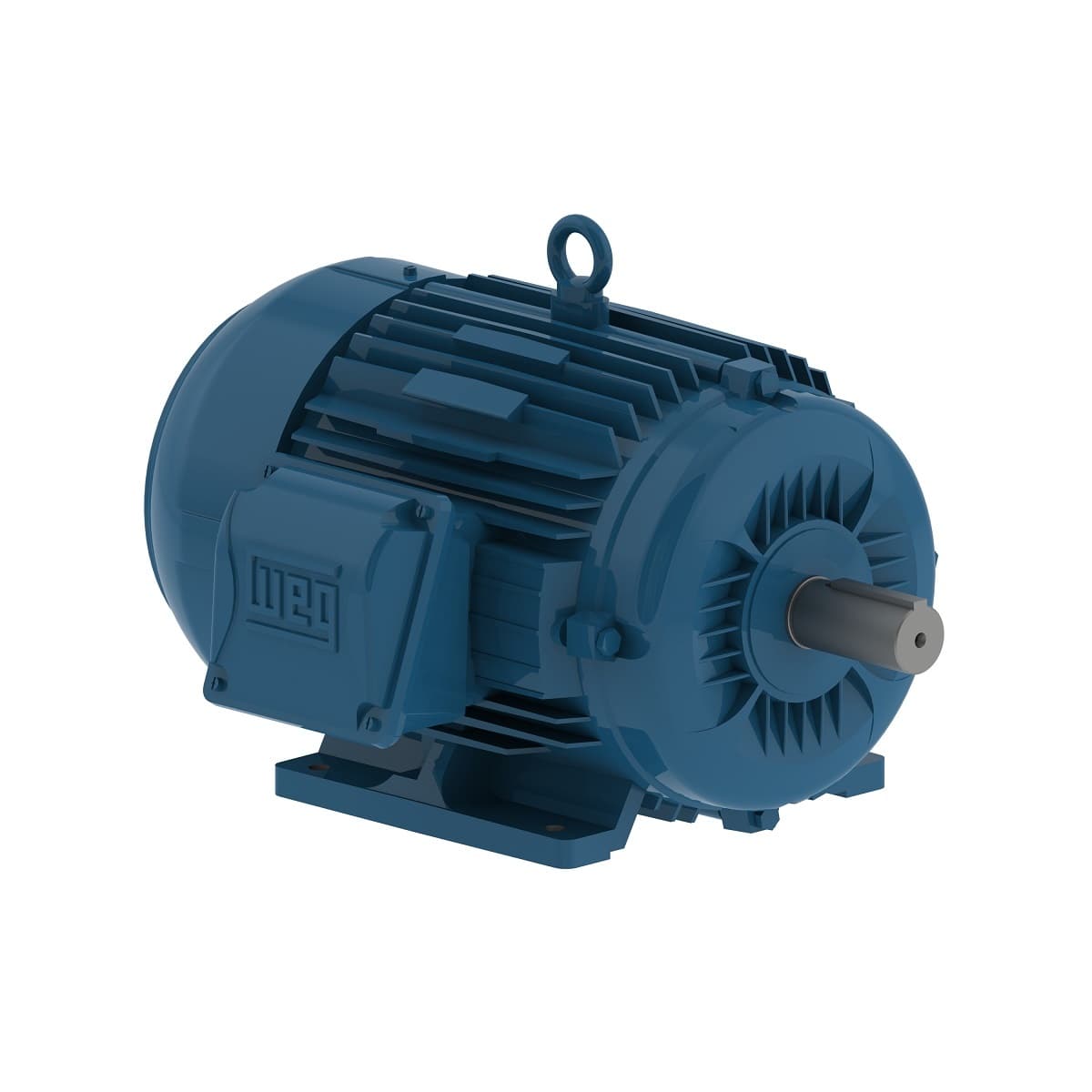

W22 NEMA Premium Efficiency 10 HP 4P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01018ET3H215T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Slip 1.94 %
- Service factor 1.25
- Enclosure IC411 - TEFC
- Rated voltage 575 V
- Moment of inertia (J) 1.51 sq.ft.lb
- Mounting F-1
- Number of poles 4
- L. R. Amperes 64.9 A
- Insulation Class F
- Noise level² 58.0 dB(A)
- Frame 213/5T
- Breakdown torque 295 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Terminal box¹ Left position
- Rated speed 1765 rpm
- No load current 4.52 A
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- LRC 6.4x(Code H)
- Temperature rise 80 K
- Approx. weight³ 176 lb
- Rated current 10.1 A
- Locked rotor time 30s (cold) 17s (hot)
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Rated torque 29.8 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Flange Without
- Output 10 HP (7.5 kW)
- Locked rotor torque 200 %
- Degree of Protection IP55
- Output rating 10 HP
- Frequency 60 Hz
- Design B
- Duty Cycle Cont.(S1)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01018ET3H215T-W22 Specs
1-year warranty
