01036ET3ER215TC-W22 WEG AC Motors
Part#:01036ET3ER215TC-W22
Manufacturer:WEG
Alt. Part#:7909158839865
Product Lifecycle:Active
Get a quick Quote!

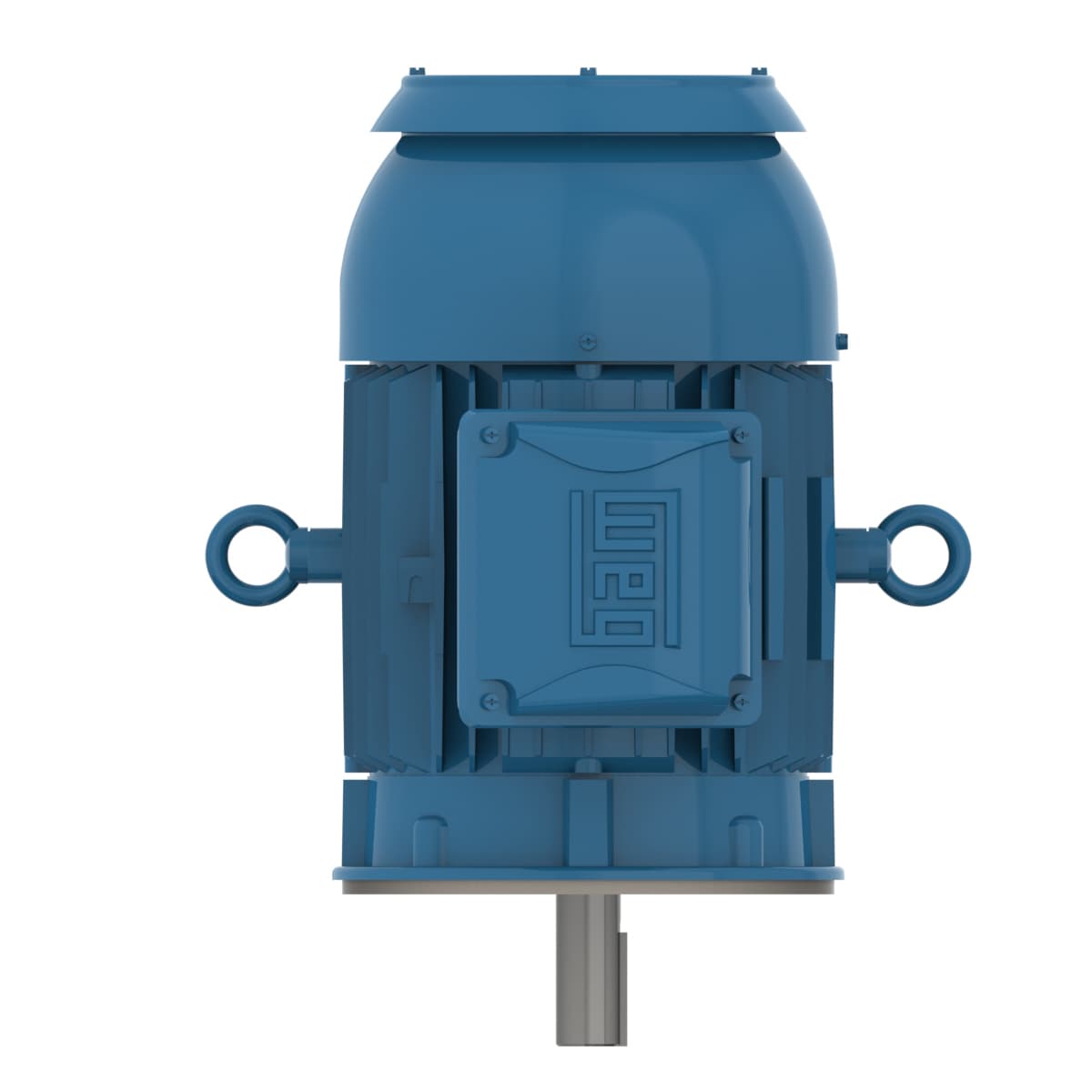

W22 NEMA Premium Efficiency 10 HP 2P 215TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 01036ET3ER215TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.94 %
- Temperature rise 80 K
- Voltage 230/460//380 V
- LRC 7.2x(Code H)
- Duty Cycle Cont.(S1)
- Approx. weight³ 175 lb
- Number of Poles 2
- Locked rotor torque 220 %
- Frame 215TC
- No load current 7.20/3.60 A
- Altitude 1000 m.a.s.l.
- Rated current 23.2/11.6 A
- Rated torque 14.9 ft.lb
- Mounting W-6
- L. R. Amperes 167/83.5 A
- Locked rotor time 32s (cold) 18s (hot)
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Service factor 1.25
- Noise level² 68.0 dB(A)
- Flange C
- Frequency 60 Hz
- Design B
- Degree of Protection IP55
- Number of poles 2
- Rated speed 3530 rpm
- Moment of inertia (J) 0.6362 sq.ft.lb
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Output 10 HP (7.5 kW)
- Breakdown torque 290 %
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Starting Method Direct On Line
- Terminal box¹ Left position
- Output rating 10 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036ET3ER215TC-W22 Specs
1-year warranty
