01518ET3EID254TC-W22 WEG AC Motors
Part#:01518ET3EID254TC-W22
Manufacturer:WEG
Alt. Part#:7909158815777
Product Lifecycle:Active
Get a quick Quote!

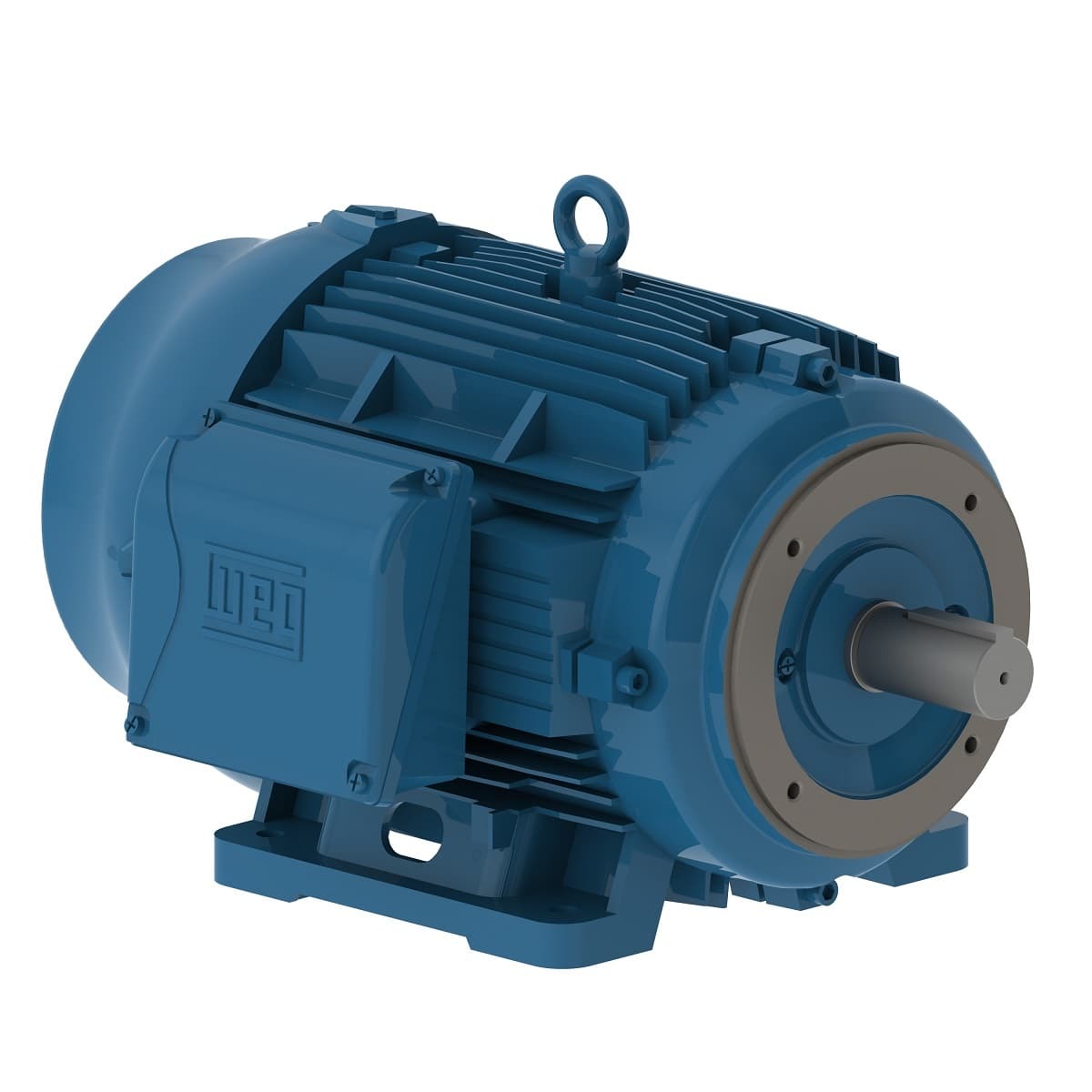

W22 NEMA Premium Efficiency 15 HP 4P 254/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 01518ET3EID254TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1768 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Rated current 36.0/18.0 A
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Output rating 15 HP
- Frequency 60 Hz
- Locked rotor time 55s (cold) 31s (hot)
- Approx. weight³ 292 lb
- Rated torque 44.6 ft.lb
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Number of Poles 4
- Insulation Class F
- Mounting F-1
- Rated speed 1768 rpm
- Service factor 1.25
- Degree of Protection IP55
- Flange C
- Slip 1.78 %
- Moment of inertia (J) 2.62 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Number of poles 4
- Output 15 HP (11 kW)
- L. R. Amperes 230/115 A
- Starting Method Direct On Line
- Noise level² 64.0 dB(A)
- No load current 14.0/7.00 A
- Design B
- Voltage 230/460//380 V
- Frame 254/6TC
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01518ET3EID254TC-W22 Specs
1-year warranty
