01536OT3V215TC-S WEG AC Motors
Part#:01536OT3V215TC-S
Manufacturer:WEG
Alt. Part#:7909158529681
Product Lifecycle:Active
Get a quick Quote!

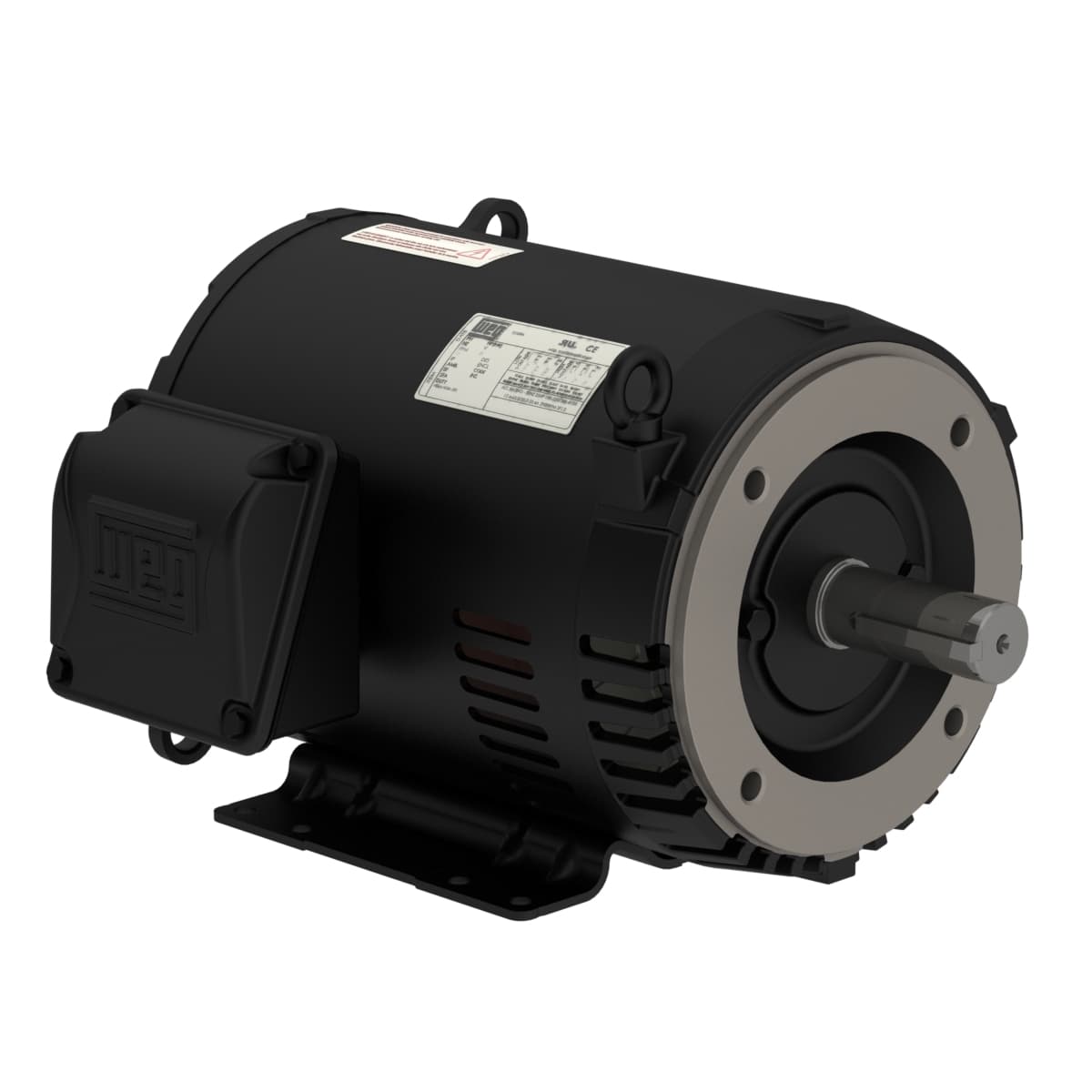

Rolled Steel NEMA Premium Efficiency 15 HP 2P 213/5TC 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01536OT3V215TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Rated speed 3535 rpm
- No load current 14.2/7.09 A
- Insulation Class F
- Synchronous speed 3600 rpm
- Rated current 39.6/19.8 A
- Frequency 60 Hz
- Design B
- Rated torque 22.3 ft.lb
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Standard NEMA MG-1
- Flange C
- Rated voltage 200/400 V
- Locked rotor time 14s (cold) 8s (hot)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output rating 15 HP
- Output 15 HP (11 kW)
- Number of Poles 2
- Slip 1.81 %
- Moment of inertia (J) 0.5512 sq.ft.lb
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Voltage 200/400 V
- Number of poles 2
- L. R. Amperes 269/135 A
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 141 lb
- Frame 213/5TC
- LRC 6.8x(Code G)
- Mounting F-1
- Terminal box¹ Left position
- Locked rotor torque 210 %
- Service factor 1.15
- Noise level² 66.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536OT3V215TC-S Specs
1-year warranty
