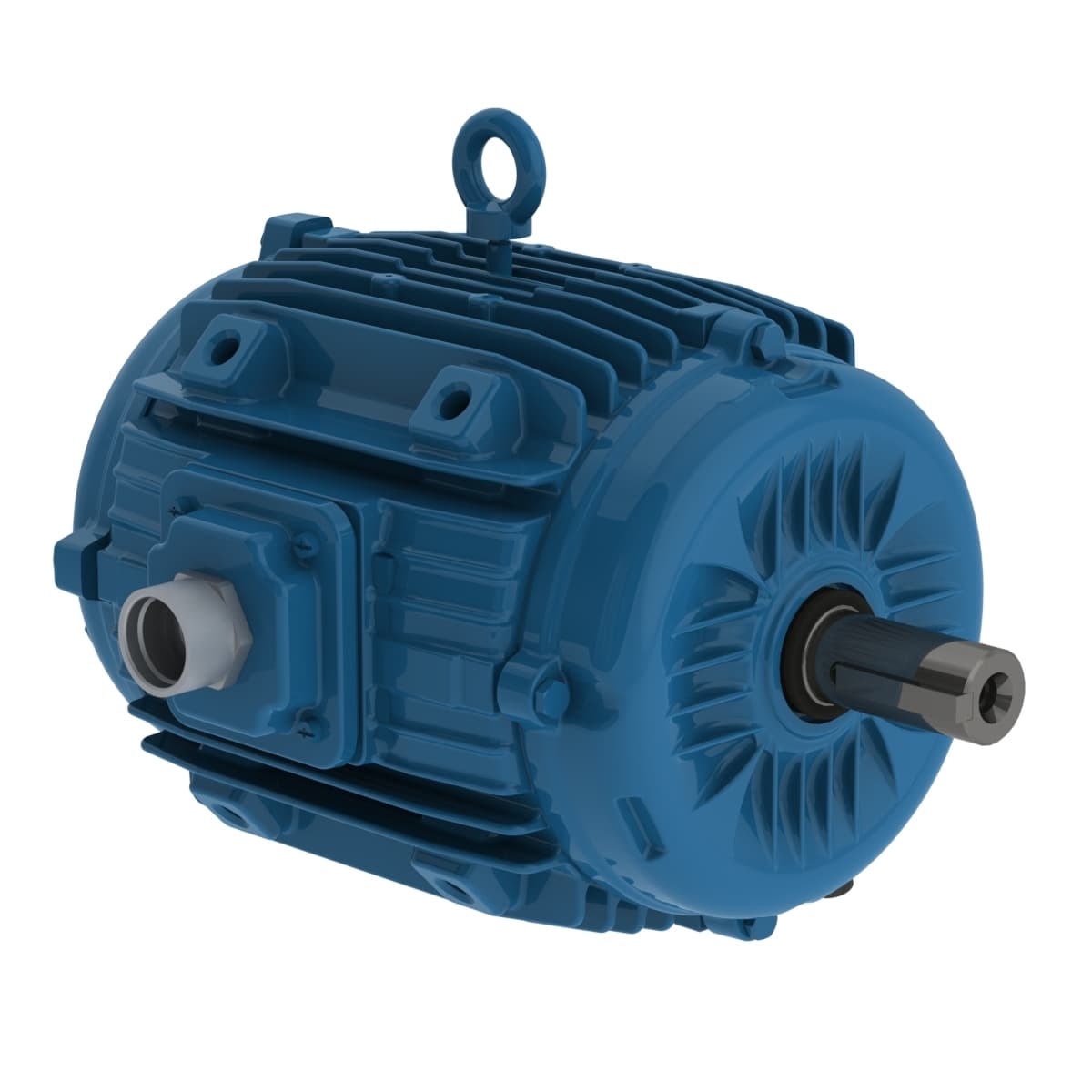

02036ET3EPM254/6Y-W2 WEG AC Motors
Part#:02036ET3EPM254/6Y-W2
Manufacturer:WEG
Alt. Part#:7909522561484
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 20 HP 2P 256TZ 3Ph 208-230/460//380 V 60//50 Hz IC418 - TEAO - Pad mounted
Check out the 02036ET3EPM254/6Y-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3525 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- LRC 6.1x(Code G)
- Service factor 1.25
- Enclosure IC418 - TEAO
- Number of poles 2
- Rated voltage 208-230/460 V
- Design B
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Rated current 51.3-46.5/23.3 A
- Temperature rise 80 K
- Approx. weight³ 317 lb
- Frame 256TZ
- Rated torque 29.8 ft.lb
- Duty Cycle Cont.(S1)
- L. R. Amperes 313-284/142 A
- Locked rotor torque 200 %
- Rotation¹ Both (CW and CCW)
- Voltage 208-230/460//380 V
- Output 20 HP (15 kW)
- Breakdown torque 240 %
- Noise level² 72.0 dB(A)
- Terminal box¹ Left position
- Rated speed 3525 rpm
- Moment of inertia (J) 1.54 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Slip 2.08 %
- Locked rotor time 25s (cold) 14s (hot)
- Degree of Protection IP55
- Output rating 20 HP
- Frequency 60 Hz
- Insulation Class F
- Mounting F-1
- Flange Without
- Number of Poles 2
- No load current 11.2-13.0/6.50 A
- Ambient temperature -20°C to +40°C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02036ET3EPM254/6Y-W2 Specs
1-year warranty
