02036OT3H254T-W40 WEG AC Motors
Part#:02036OT3H254T-W40
Manufacturer:WEG
Alt. Part#:7909492249122
Product Lifecycle:Active
Get a quick Quote!

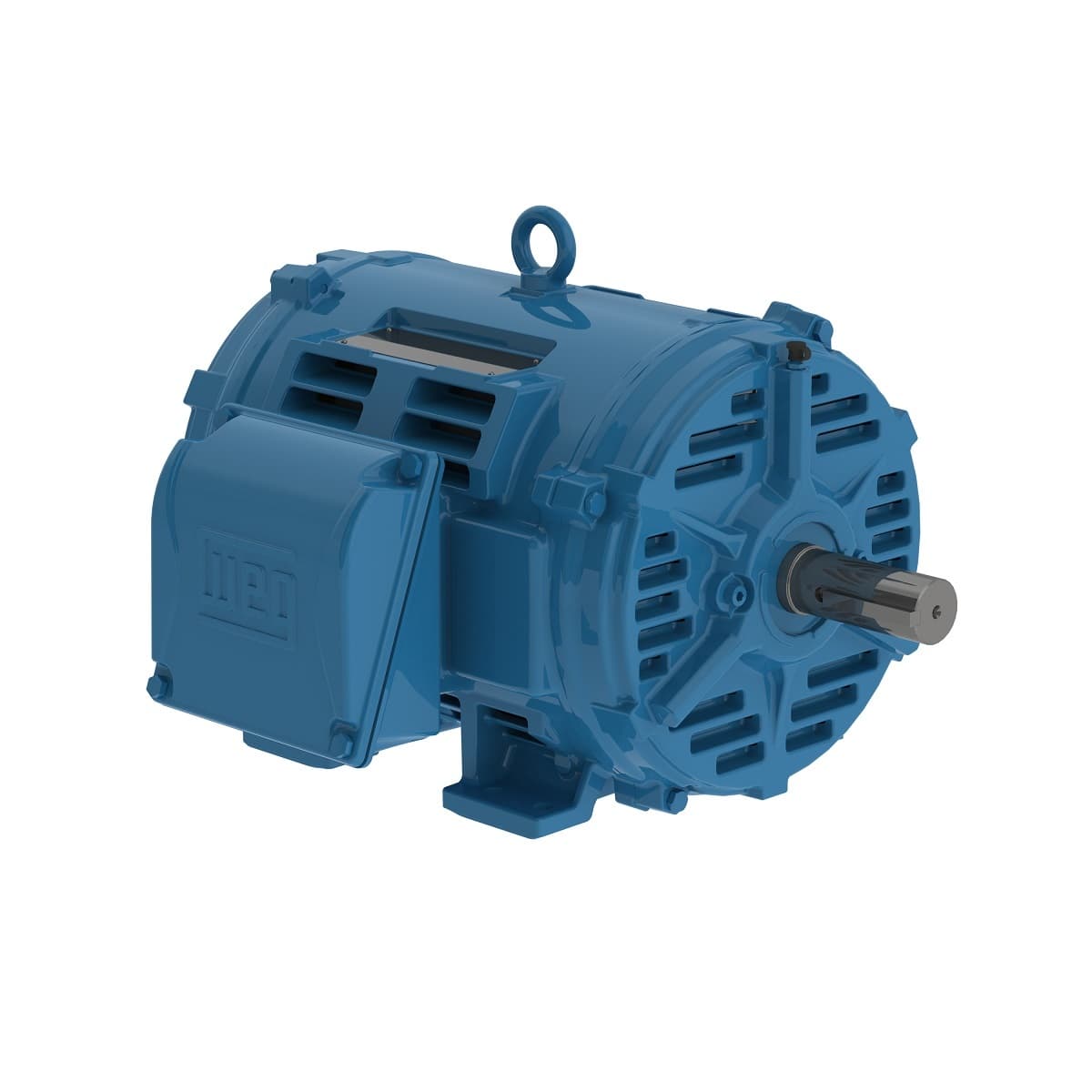

W40 NEMA Premium Efficiency 20 HP 2P 254T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02036OT3H254T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 3530 rpm
- Locked rotor torque 200 %
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Frequency 60 Hz
- Insulation Class F
- Approx. weight³ 195 lb
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- No load current 6.32 A
- Mounting F-1
- Flange Without
- L. R. Amperes 123 A
- Moment of inertia (J) 0.8718 sq.ft.lb
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Frame 254T
- LRC 6.3x(Code G)
- Temperature rise 80 K
- Standard NEMA MG-1
- Number of Poles 2
- Locked rotor time 19s (cold) 11s (hot)
- Degree of Protection IP23
- Number of poles 2
- Rated current 19.5 A
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Slip 1.94 %
- Service factor 1.25
- Design B
- Output 20 HP (15 kW)
- Rated torque 29.8 ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 20 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02036OT3H254T-W40 Specs
1-year warranty
