02518ET3E284TF3-W22 WEG AC Motors
Part#:02518ET3E284TF3-W22
Manufacturer:WEG
Alt. Part#:7891327914483
Product Lifecycle:Active
Get a quick Quote!

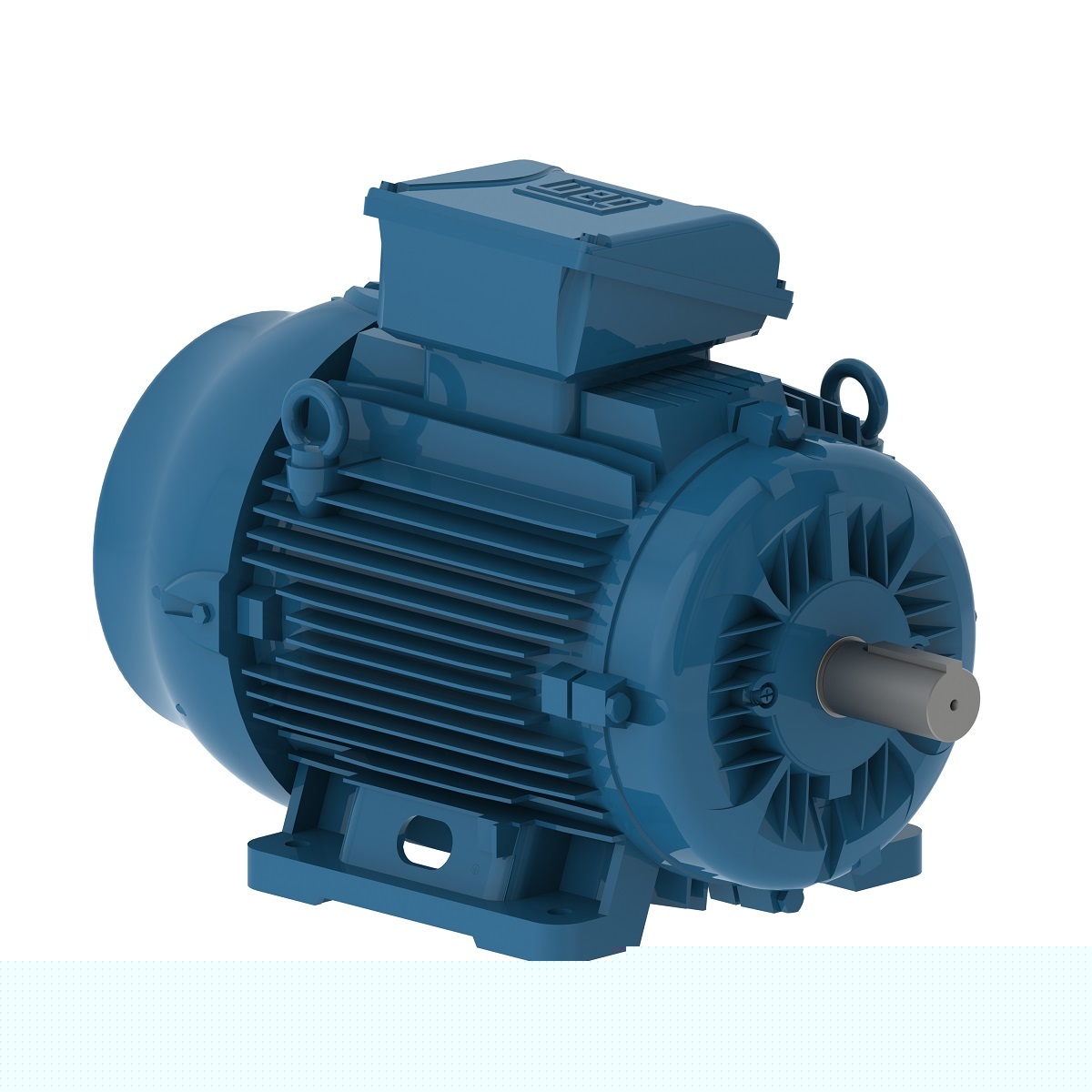

W22 NEMA Premium Efficiency 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 02518ET3E284TF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Number of Poles 4
- Rated torque 74.2 ft.lb
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Output rating 25 HP
- Frequency 60 Hz
- Locked rotor torque 240 %
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Slip 1.67 %
- Design B
- Degree of Protection IP55
- Breakdown torque 270 %
- Frame 284T
- Approx. weight³ 386 lb
- Output 25 HP (18.5 kW)
- Locked rotor time 43s (cold) 24s (hot)
- Starting Method Direct On Line
- Number of poles 4
- Moment of inertia (J) 5.11 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Rated current 59.0/29.5 A
- Enclosure IC411 - TEFC
- Service factor 1.25
- L. R. Amperes 366/183 A
- Rated speed 1770 rpm
- Insulation Class F
- Noise level² 63.0 dB(A)
- Flange Without
- LRC 6.2x(Code G)
- Mounting F-3
- Duty Cycle Cont.(S1)
- Rated voltage 230/460 V
- No load current 22.0/11.0 A
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Top
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02518ET3E284TF3-W22 Specs
