02518OT3E284TS-W40 WEG AC Motors
Part#:02518OT3E284TS-W40
Manufacturer:WEG
Alt. Part#:7909492248965
Product Lifecycle:Active
Get a quick Quote!

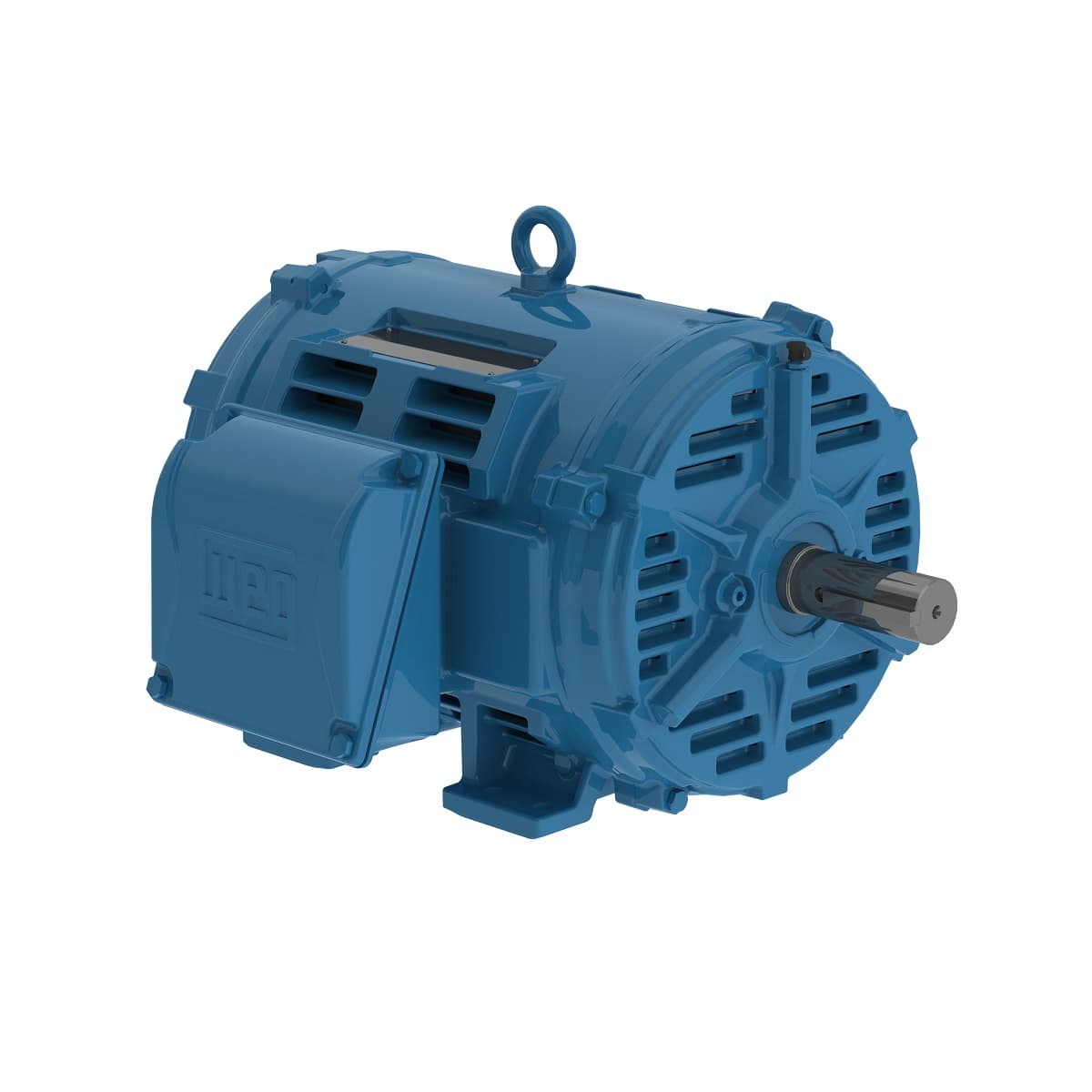

W40 NEMA Premium Efficiency 25 HP 4P 284TS 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 02518OT3E284TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated current 59.0/29.5 A
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Output rating 25 HP
- Number of Poles 4
- No load current 20.8/10.4 A
- Degree of Protection IP23
- Frequency 60 Hz
- Locked rotor time 59s (cold) 33s (hot)
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
- LRC 6.3x(Code G)
- Duty Cycle Cont.(S1)
- Approx. weight³ 345 lb
- Number of poles 4
- Output 25 HP (18.5 kW)
- Design B
- Mounting F-1
- Rated speed 1770 rpm
- Moment of inertia (J) 3.71 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Frame 284TS
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Flange Without
- L. R. Amperes 372/186 A
- Rated torque 74.2 ft.lb
- Service factor 1.25
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Temperature rise 80 K
- Noise level² 64.0 dB(A)
- Terminal box¹ Left position
- Slip 1.67 %
- Breakdown torque 270 %
- Starting Method Direct On Line
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02518OT3E284TS-W40 Specs
