02536OT3E256T-W40 WEG AC Motors
Part#:02536OT3E256T-W40
Manufacturer:WEG
Alt. Part#:7899058087582
Product Lifecycle:Active
Get a quick Quote!

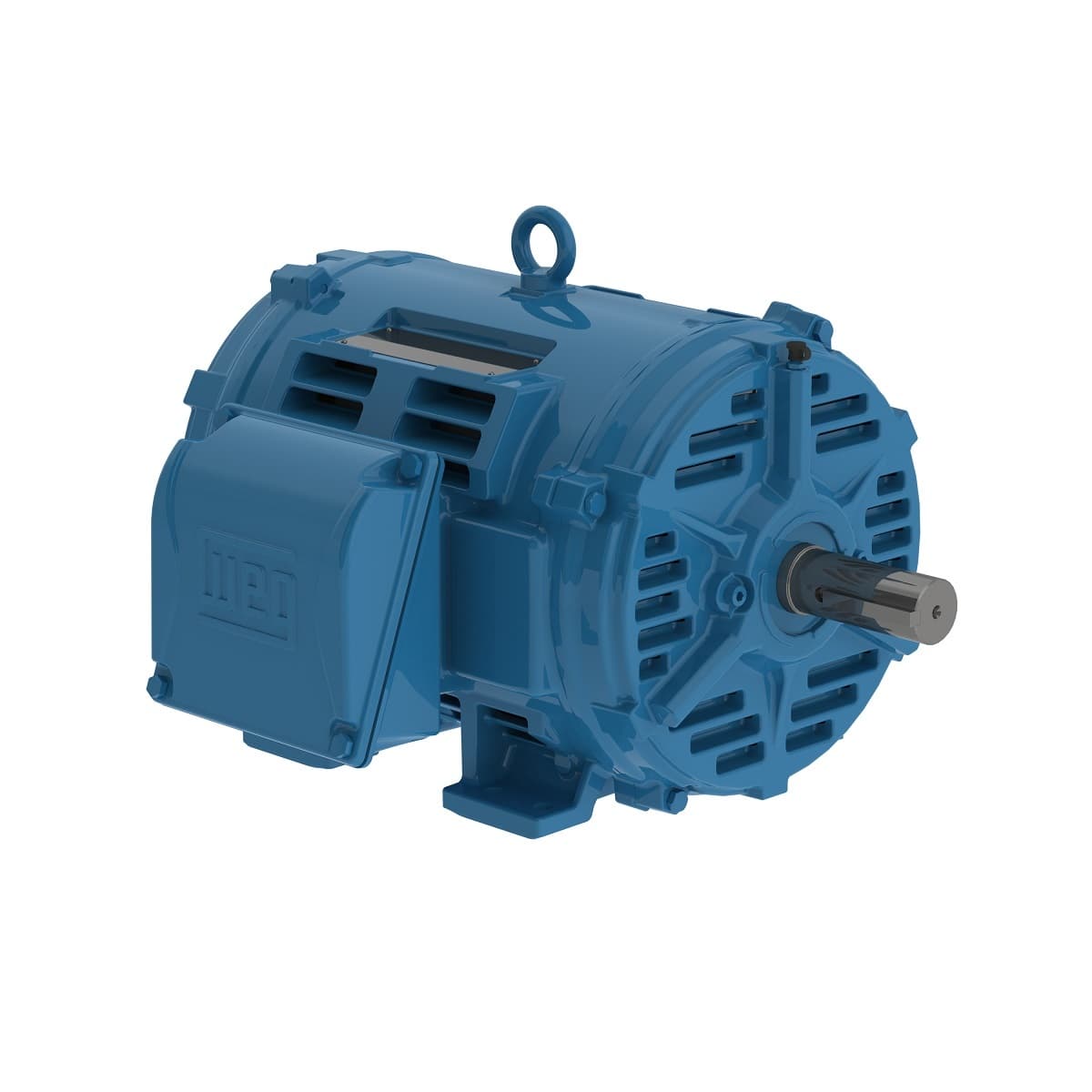

W40 NEMA Premium Efficiency 25 HP 2P 254/6T 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 02536OT3E256T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated speed 3535 rpm
- Locked rotor time 19s (cold) 11s (hot)
- Ambient temperature -20°C to +40°C
- Rated current 57.6/28.8 A
- Service factor 1.25
- Degree of Protection IP23
- L. R. Amperes 374/187 A
- Locked rotor torque 200 %
- LRC 6.5x(Code G)
- Rotation¹ Both (CW and CCW)
- Voltage 230/460//380 V
- Slip 1.81 %
- Temperature rise 80 K
- Standard NEMA MG-1
- Frequency 60 Hz
- Moment of inertia (J) 1.13 sq.ft.lb
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Number of Poles 2
- Breakdown torque 280 %
- No load current 17.0/8.50 A
- Approx. weight³ 221 lb
- Output 25 HP (18.5 kW)
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated voltage 230/460 V
- Rated torque 37.1 ft.lb
- Design B
- Enclosure IC01 - ODP
- Mounting F-1
- Output rating 25 HP
- Terminal box¹ Left position
- Frame 254/6T
- Duty Cycle Cont.(S1)
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
