02536OT3H256TF2-W40 WEG AC Motors
Part#:02536OT3H256TF2-W40
Manufacturer:WEG
Alt. Part#:7909492243816
Product Lifecycle:Active
Get a quick Quote!

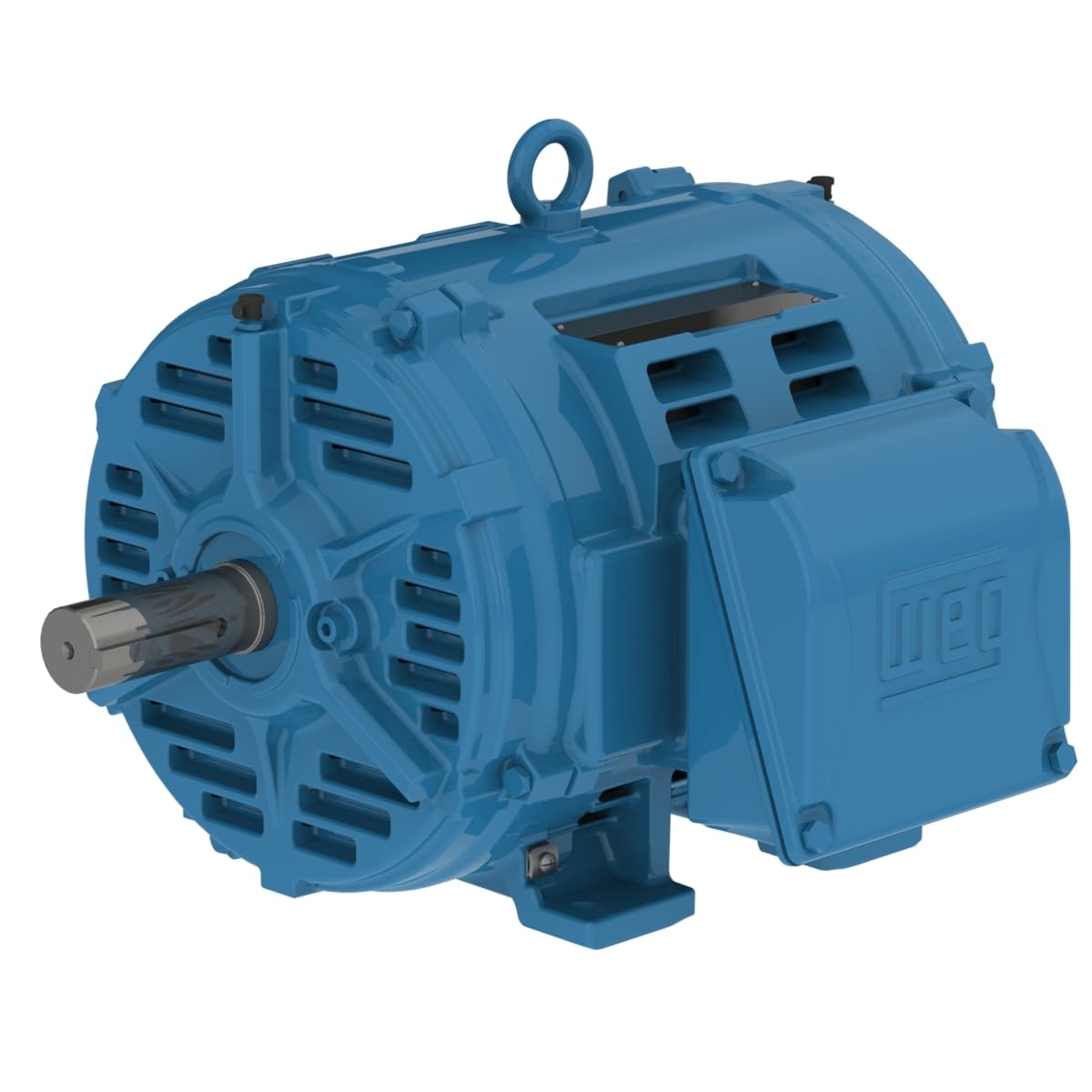

W40 NEMA Premium Efficiency 25 HP 2P 254/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02536OT3H256TF2-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- No load current 6.80 A
- Design B
- Voltage 575 V
- Number of Poles 2
- Breakdown torque 280 %
- Mounting F-2
- Output 25 HP (18.5 kW)
- Rated torque 37.1 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- L. R. Amperes 150 A
- Locked rotor torque 200 %
- Enclosure IC01 - ODP
- Output rating 25 HP
- Frame 254/6T
- LRC 6.5x(Code G)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Rated voltage 575 V
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 1.81 %
- Insulation Class F
- Number of poles 2
- Frequency 60 Hz
- Moment of inertia (J) 1.13 sq.ft.lb
- Starting Method Direct On Line
- Approx. weight³ 249 lb
- Flange Without
- Rated speed 3535 rpm
- Locked rotor time 19s (cold) 11s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Right position
- Rated current 23.0 A
- Service factor 1.25
- Degree of Protection IP23
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02536OT3H256TF2-W40 Specs
1-year warranty
