03018OT3H286T-W40G WEG AC Motors
Part#:03018OT3H286T-W40G
Manufacturer:WEG
Alt. Part#:7909492267843
Product Lifecycle:Active
Get a quick Quote!

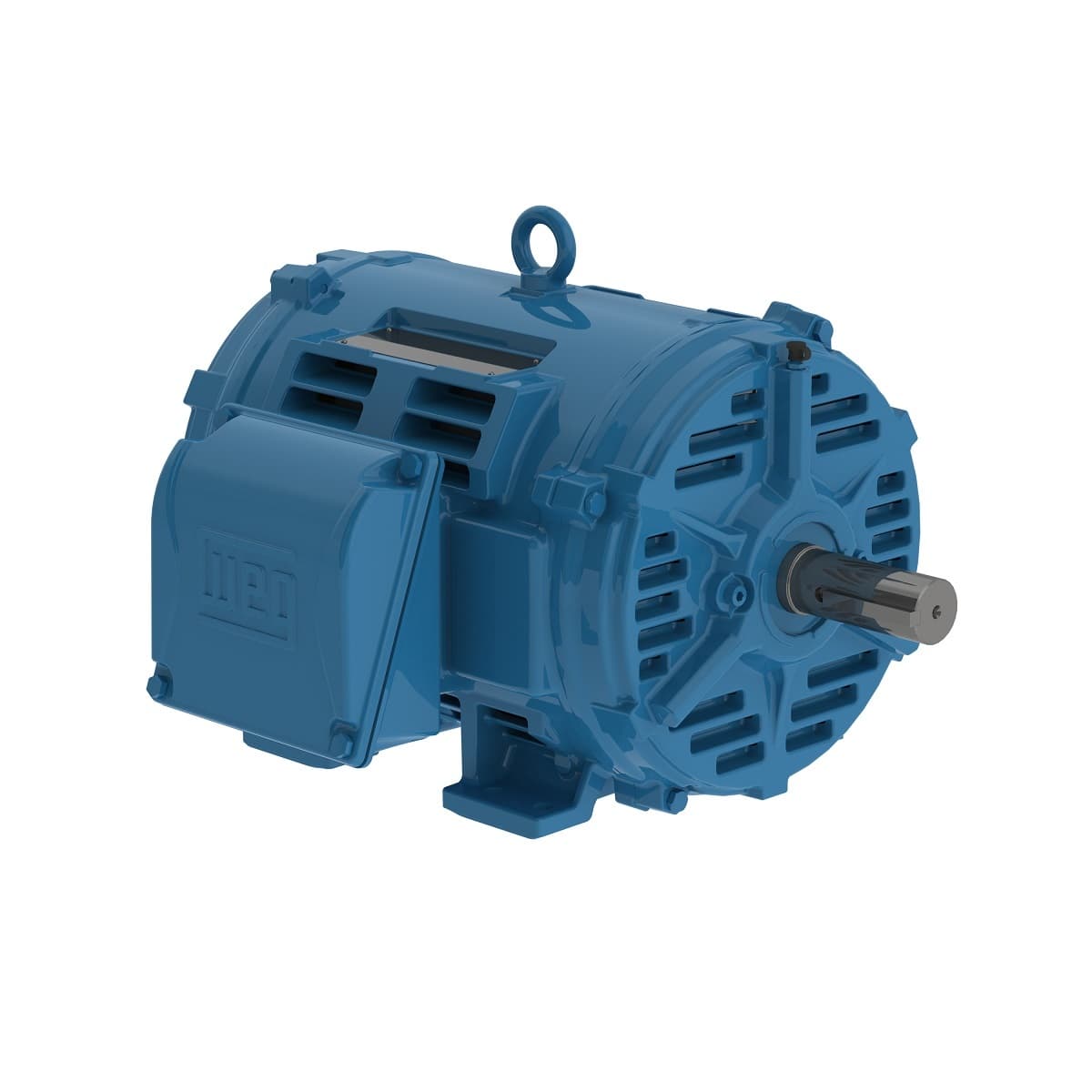

W40 NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03018OT3H286T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- Locked rotor torque 240 %
- Mounting F-1
- Synchronous speed 1800 rpm
- L. R. Amperes 184 A
- Frame 284/6T
- Rated torque 89.0 ft.lb
- Enclosure IC01 - ODP
- Flange Without
- Slip 1.67 %
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Rated speed 1770 rpm
- Rated current 27.9 A
- LRC 6.6x(Code G)
- No load current 9.68 A
- Moment of inertia (J) 4.52 sq.ft.lb
- Design B
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Approx. weight³ 392 lb
- Noise level² 64.0 dB(A)
- Frequency 60 Hz
- Breakdown torque 270 %
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Output rating 30 HP
- Terminal box¹ Left position
- Output 30 HP (22 kW)
- Insulation Class F
- Starting Method Direct On Line
- Number of poles 4
- Number of Poles 4
- Locked rotor time 32s (cold) 18s (hot)
- Degree of Protection IP23
- Voltage 575 V
