03018OT3P286T-W40 WEG AC Motors
Part#:03018OT3P286T-W40
Manufacturer:WEG
Alt. Part#:7909492261513
Product Lifecycle:Active
Get a quick Quote!

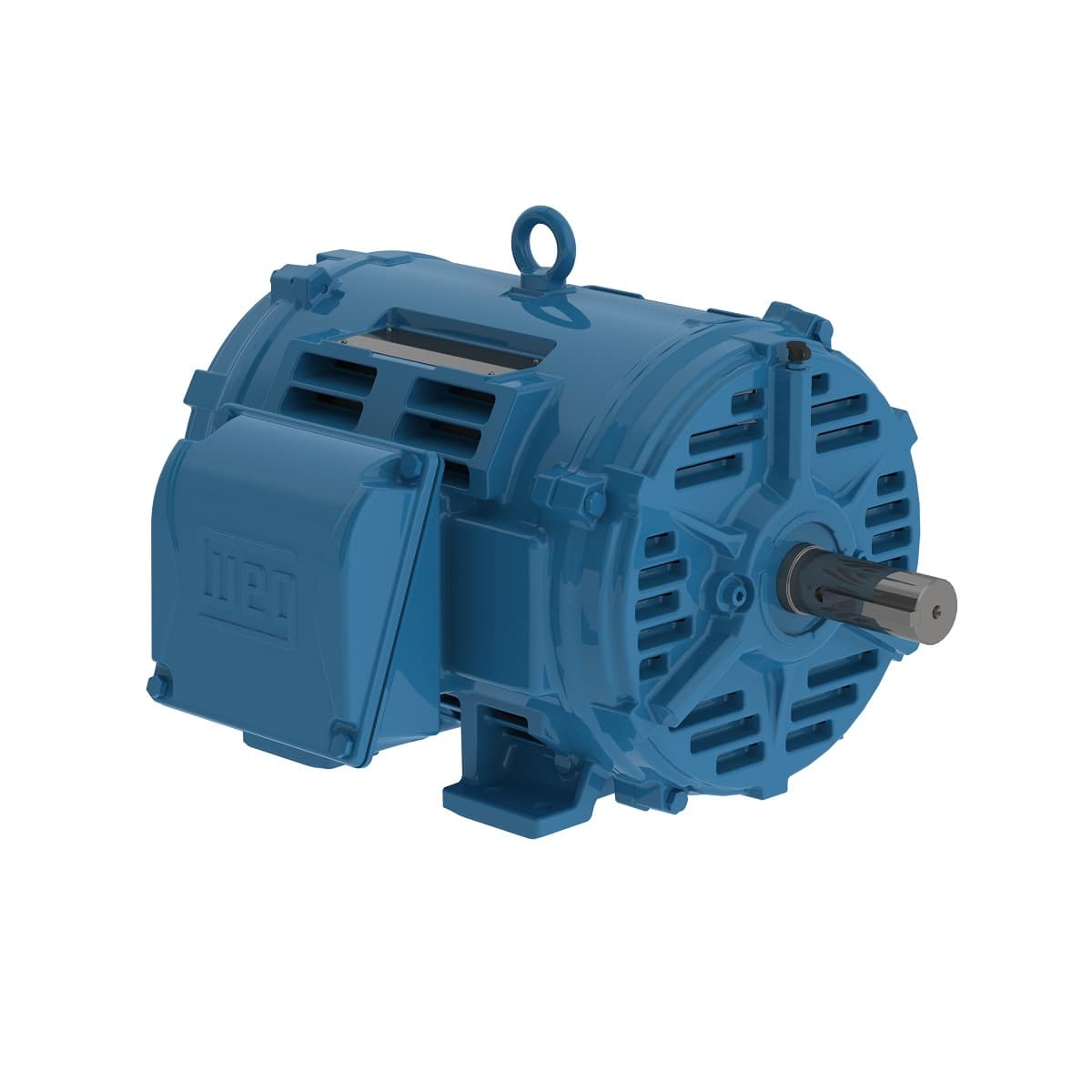

W40 NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 200 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03018OT3P286T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage200 V
- Flange TypeWithout
- Rated voltage 200 V
- Moment of inertia (J) 4.52 sq.ft.lb
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Rated speed 1770 rpm
- Insulation Class F
- Noise level² 64.0 dB(A)
- Standard NEMA MG-1
- Slip 1.67 %
- LRC 6.6x(Code G)
- Duty Cycle Cont.(S1)
- Approx. weight³ 391 lb
- Frequency 60 Hz
- Breakdown torque 270 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Frame 284/6T
- Locked rotor torque 240 %
- Design B
- Mounting F-1
- Output 30 HP (22 kW)
- L. R. Amperes 530 A
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- No load current 27.8 A
- Altitude 1000 m.a.s.l.
- Output rating 30 HP
- Rated current 80.3 A
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Locked rotor time 32s (cold) 18s (hot)
- Degree of Protection IP23
- Voltage 200 V
- Rated torque 89.0 ft.lb
- Temperature rise 80 K
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
