03036OT3H284TSF2-W40 WEG AC Motors
Part#:03036OT3H284TSF2-W40
Manufacturer:WEG
Alt. Part#:7909492246114
Product Lifecycle:Active
Get a quick Quote!

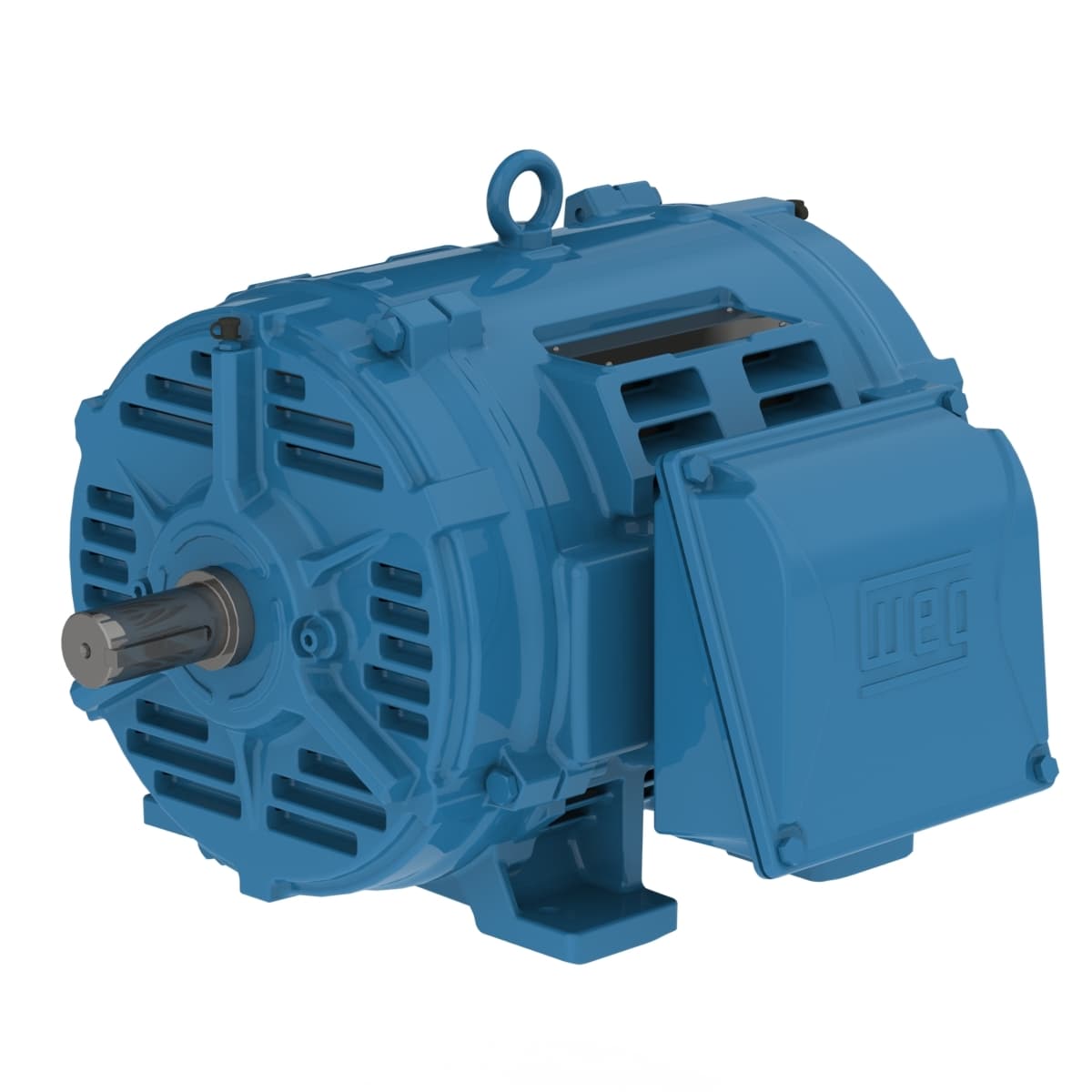

W40 NEMA Premium Efficiency 30 HP 2P 284TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03036OT3H284TSF2-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- Breakdown torque 260 %
- Enclosure IC01 - ODP
- Terminal box¹ Right position
- Slip 1.53 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.25
- Approx. weight³ 350 lb
- Flange Without
- Frame 284TS
- Locked rotor time 18s (cold) 10s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Rated speed 3545 rpm
- Moment of inertia (J) 1.59 sq.ft.lb
- Starting Method Direct On Line
- Output rating 30 HP
- L. R. Amperes 176 A
- No load current 10.0 A
- Temperature rise 80 K
- Noise level² 73.0 dB(A)
- LRC 6.3x(Code G)
- Locked rotor torque 180 %
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Output 30 HP (22 kW)
- Rated torque 44.4 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Number of Poles 2
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Rated current 28.0 A
- Design B
- Mounting F-2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
