03036OT3V284TS-W40 WEG AC Motors
Part#:03036OT3V284TS-W40
Manufacturer:WEG
Alt. Part#:7909492252085
Product Lifecycle:Active
Get a quick Quote!

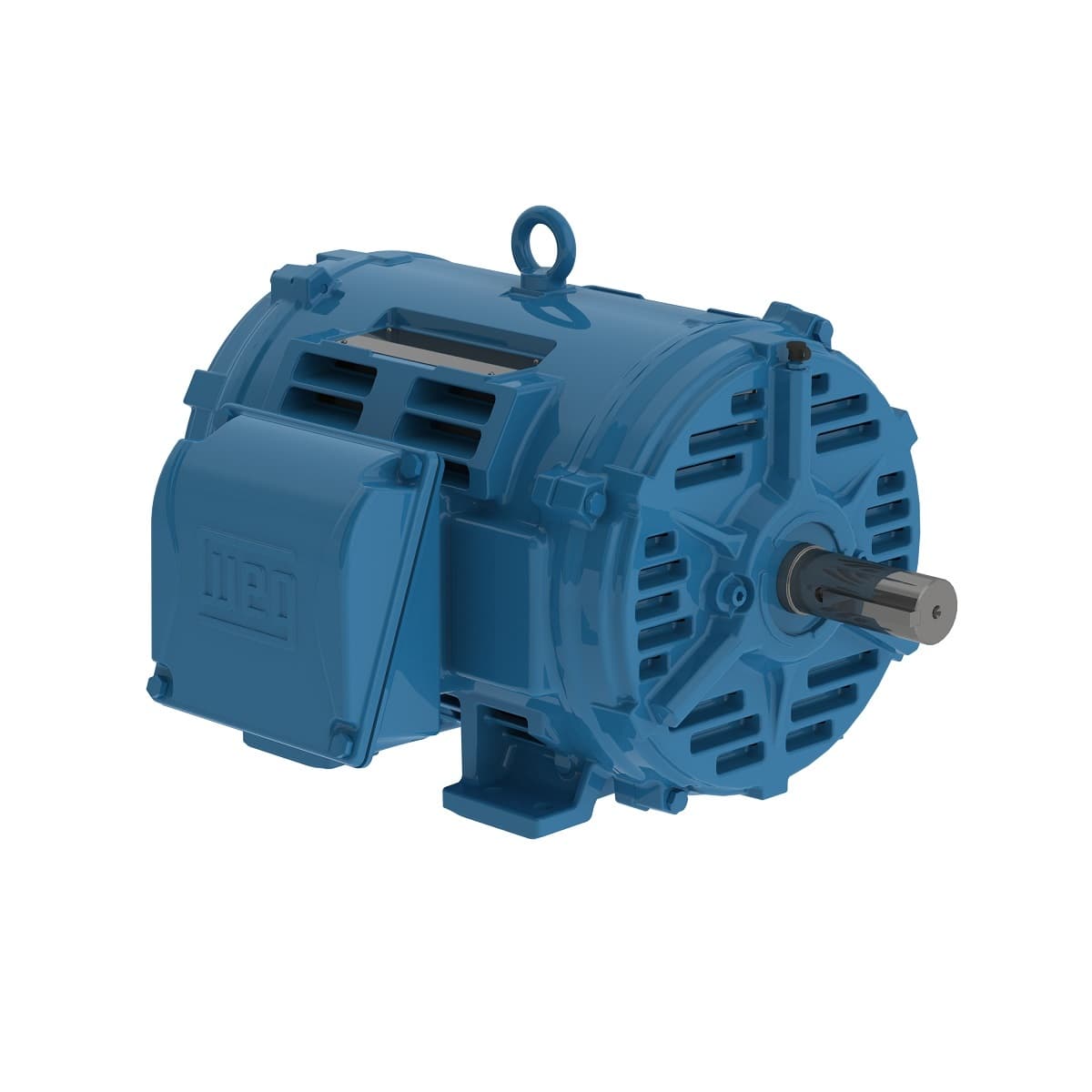

W40 NEMA Premium Efficiency 30 HP 2P 284TS 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03036OT3V284TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeWithout
- Frequency 60 Hz
- Locked rotor torque 180 %
- Enclosure IC01 - ODP
- Voltage 200/400 V
- Rated speed 3545 rpm
- No load current 28.8/14.4 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- LRC 6.3x(Code G)
- Temperature rise 80 K
- Noise level² 73.0 dB(A)
- Slip 1.53 %
- Breakdown torque 260 %
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Number of Poles 2
- Service factor 1.25
- Approx. weight³ 303 lb
- Frame 284TS
- Rated torque 44.4 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output 30 HP (22 kW)
- Locked rotor time 18s (cold) 10s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 30 HP
- Rated current 80.5/40.3 A
- Moment of inertia (J) 1.59 sq.ft.lb
- Mounting F-1
- Terminal box¹ Left position
- Rated voltage 200/400 V
- Insulation Class F
- Degree of Protection IP23
- Flange Without
- L. R. Amperes 507/254 A
- Design B
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03036OT3V284TS-W40 Specs
