04036ET3E324TS-W22 WEG AC Motors
Part#:04036ET3E324TS-W22
Manufacturer:WEG
Alt. Part#:7909158056309
Product Lifecycle:Active
Get a quick Quote!

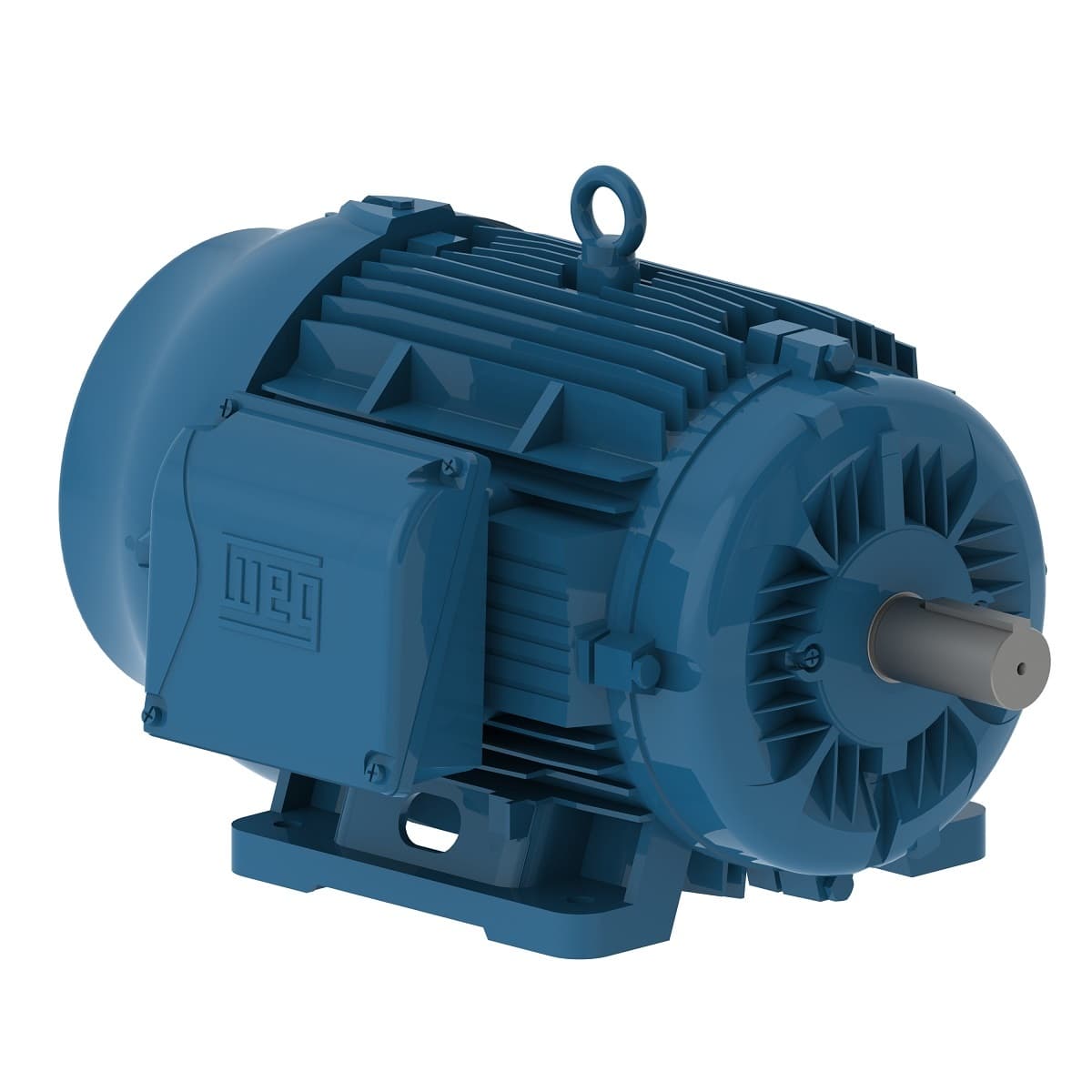

W22 NEMA Premium Efficiency 40 HP 2P 324/6TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 04036ET3E324TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Output 40 HP (30 kW)
- Rated speed 3555 rpm
- Rated torque 59.1 ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 40 HP
- Slip 1.25 %
- Temperature rise 80 K
- Approx. weight³ 485 lb
- Number of Poles 2
- LRC 6.3x(Code G)
- Service factor 1.25
- Mounting F-1
- Terminal box¹ Left position
- Rated current 92.6/46.3 A
- Locked rotor time 39s (cold) 22s (hot)
- No load current 25.0/12.5 A
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Flange Without
- Number of poles 2
- L. R. Amperes 584/292 A
- Altitude 1000 m.a.s.l.
- Locked rotor torque 250 %
- Moment of inertia (J) 4.90 sq.ft.lb
- Noise level² 76.0 dB(A)
- Standard NEMA MG-1
- Frame 324/6TS
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Breakdown torque 240 %
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Frequency 60 Hz
- Design B
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04036ET3E324TS-W22 Specs
