04036ET3H324TS-W22 WEG AC Motors
Part#:04036ET3H324TS-W22
Manufacturer:WEG
Alt. Part#:7909158055753
Product Lifecycle:Active
Get a quick Quote!

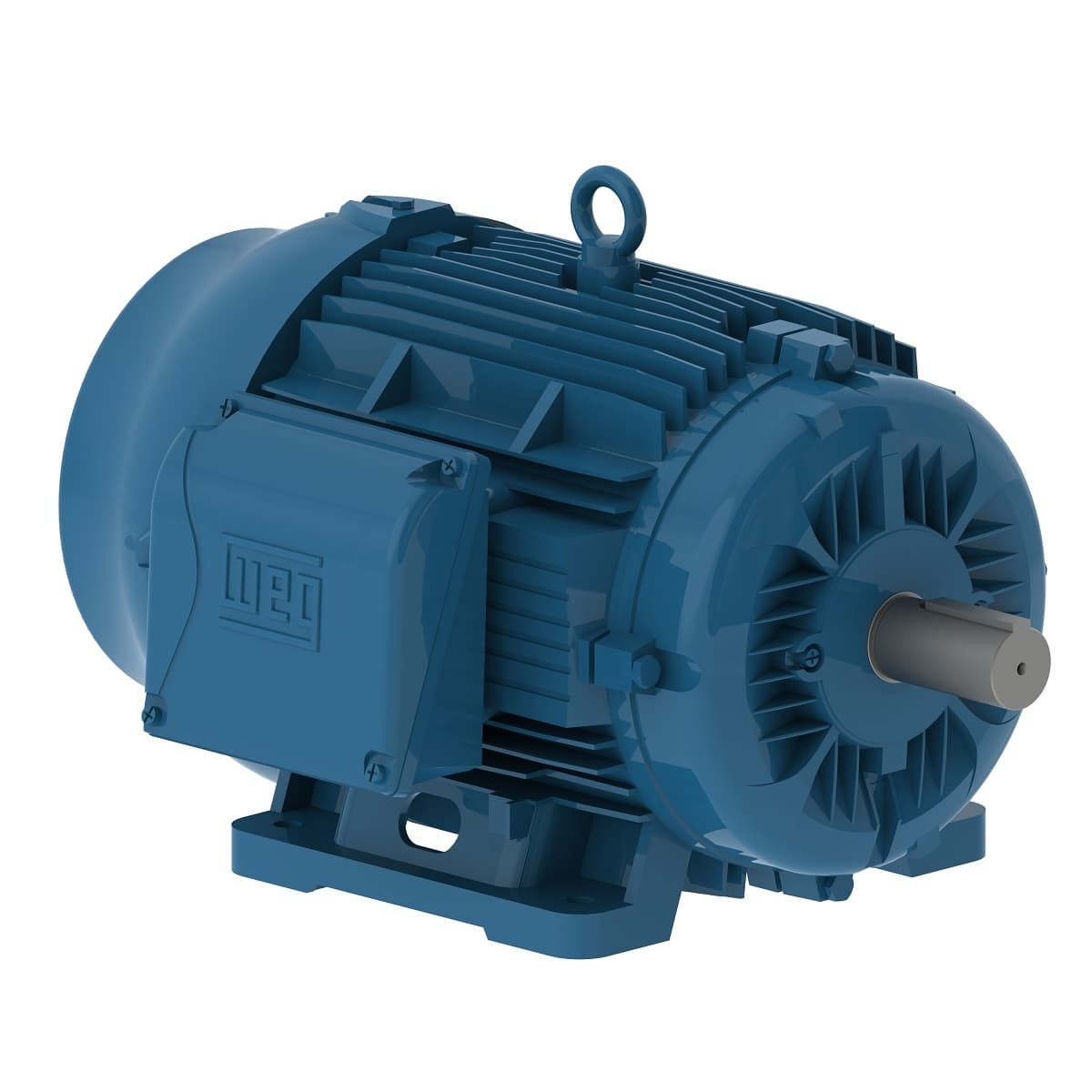

W22 NEMA Premium Efficiency 40 HP 2P 324/6TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 04036ET3H324TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated current 37.0 A
- Locked rotor torque 250 %
- Starting Method Direct On Line
- Flange Without
- Voltage 575 V
- LRC 6.3x(Code G)
- Enclosure IC411 - TEFC
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Number of Poles 2
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output rating 40 HP
- L. R. Amperes 233 A
- No load current 10.0 A
- Altitude 1000 m.a.s.l.
- Slip 1.25 %
- Design B
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Breakdown torque 240 %
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Rated speed 3555 rpm
- Rated torque 59.1 ft.lb
- Temperature rise 80 K
- Mounting F-1
- Rated voltage 575 V
- Service factor 1.25
- Approx. weight³ 484 lb
- Output 40 HP (30 kW)
- Locked rotor time 39s (cold) 22s (hot)
- Standard NEMA MG-1
- Frame 324/6TS
- Moment of inertia (J) 4.90 sq.ft.lb
- Noise level² 76.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
