04036OT3V286TS-W40 WEG AC Motors
Part#:04036OT3V286TS-W40
Manufacturer:WEG
Alt. Part#:7909492252429
Product Lifecycle:Active
Get a quick Quote!

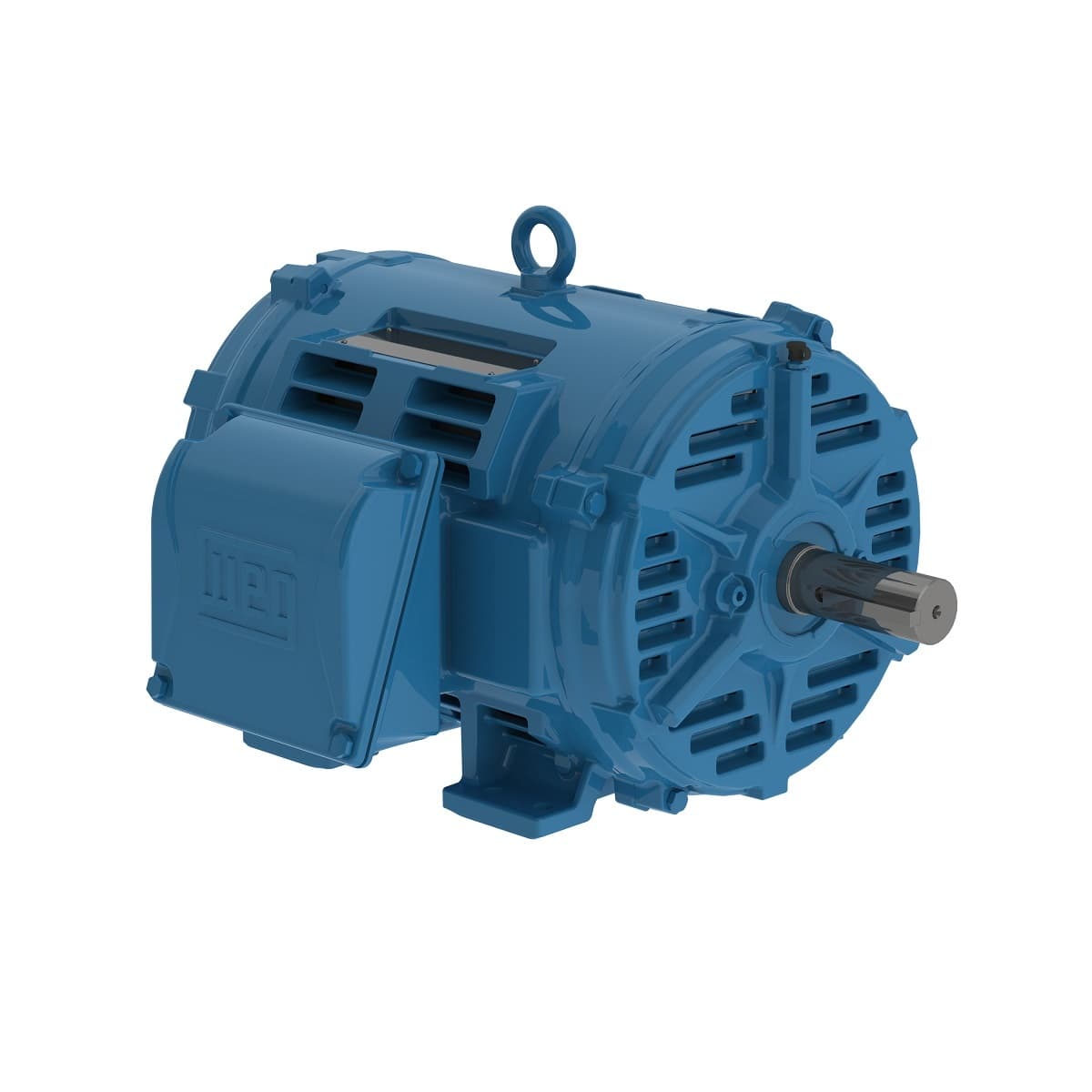

W40 NEMA Premium Efficiency 40 HP 2P 284/6TS 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 04036OT3V286TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3540 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeWithout
- Rated current 108/53.9 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated speed 3540 rpm
- Service factor 1.25
- Starting Method Direct On Line
- Flange Without
- Frame 284/6TS
- Insulation Class F
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- Slip 1.67 %
- Moment of inertia (J) 2.02 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Output rating 40 HP
- Output 40 HP (30 kW)
- Design B
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated voltage 200/400 V
- Locked rotor torque 190 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Frequency 60 Hz
- Rated torque 59.3 ft.lb
- Degree of Protection IP23
- Voltage 200/400 V
- L. R. Amperes 700/350 A
- No load current 35.4/17.7 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 390 lb
- LRC 6.5x(Code G)
- Breakdown torque 240 %
- Noise level² 73.0 dB(A)
- Number of Poles 2
- Locked rotor time 14s (cold) 8s (hot)
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04036OT3V286TS-W40 Specs
1-year warranty
