05009ST3QIE404T-W22 WEG AC Motors
Part#:05009ST3QIE404T-W22
Manufacturer:WEG
Alt. Part#:7891327591011
Product Lifecycle:Active
Get a quick Quote!

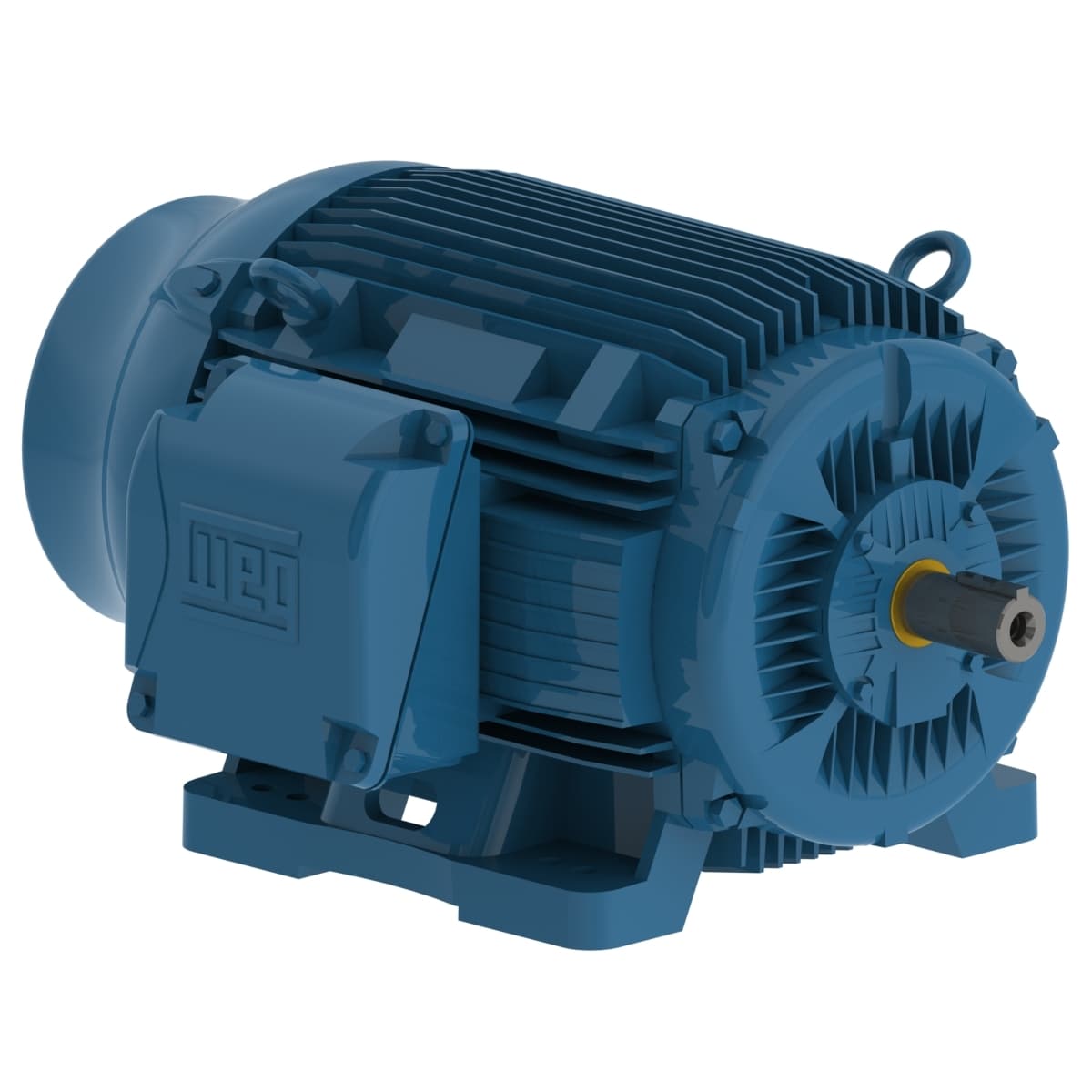

W22 IEEE 841 NEMA Premium Efficiency 50 HP 8P 404/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 05009ST3QIE404T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 433 A
- Moment of inertia (J) 34.6 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 900 rpm
- Frequency 60 Hz
- Locked rotor time 52s (cold) 29s (hot)
- Duty Cycle Cont.(S1)
- Slip 2.22 %
- Insulation Class F
- Enclosure IC411 - TEFC
- Number of poles 8
- Rated voltage 460 V
- Breakdown torque 260 %
- Rotation¹ Both (CW and CCW)
- Output rating 50 HP
- Output 50 HP (37 kW)
- Rated torque 298 ft.lb
- Altitude 1000 m.a.s.l.
- Noise level² 60.0 dB(A)
- Number of Poles 8
- No load current 24.5 A
- Degree of Protection IP56
- Rated current 60.2 A
- Design B
- Starting Method Direct On Line
- Voltage 460 V
- Rated speed 880 rpm
- Service factor 1.25
- Approx. weight³ 1116 lb
- Frame 404/5T
- Locked rotor torque 170 %
- Mounting F-1
- Flange Without
- LRC 7.2x(Code H)
- Temperature rise 80 K
- Standard NEMA MG-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05009ST3QIE404T-W22 Specs
1-year warranty
