05018ET3ER326TC-W22 WEG AC Motors
Part#:05018ET3ER326TC-W22
Manufacturer:WEG
Alt. Part#:7891327569430
Product Lifecycle:Active
Get a quick Quote!

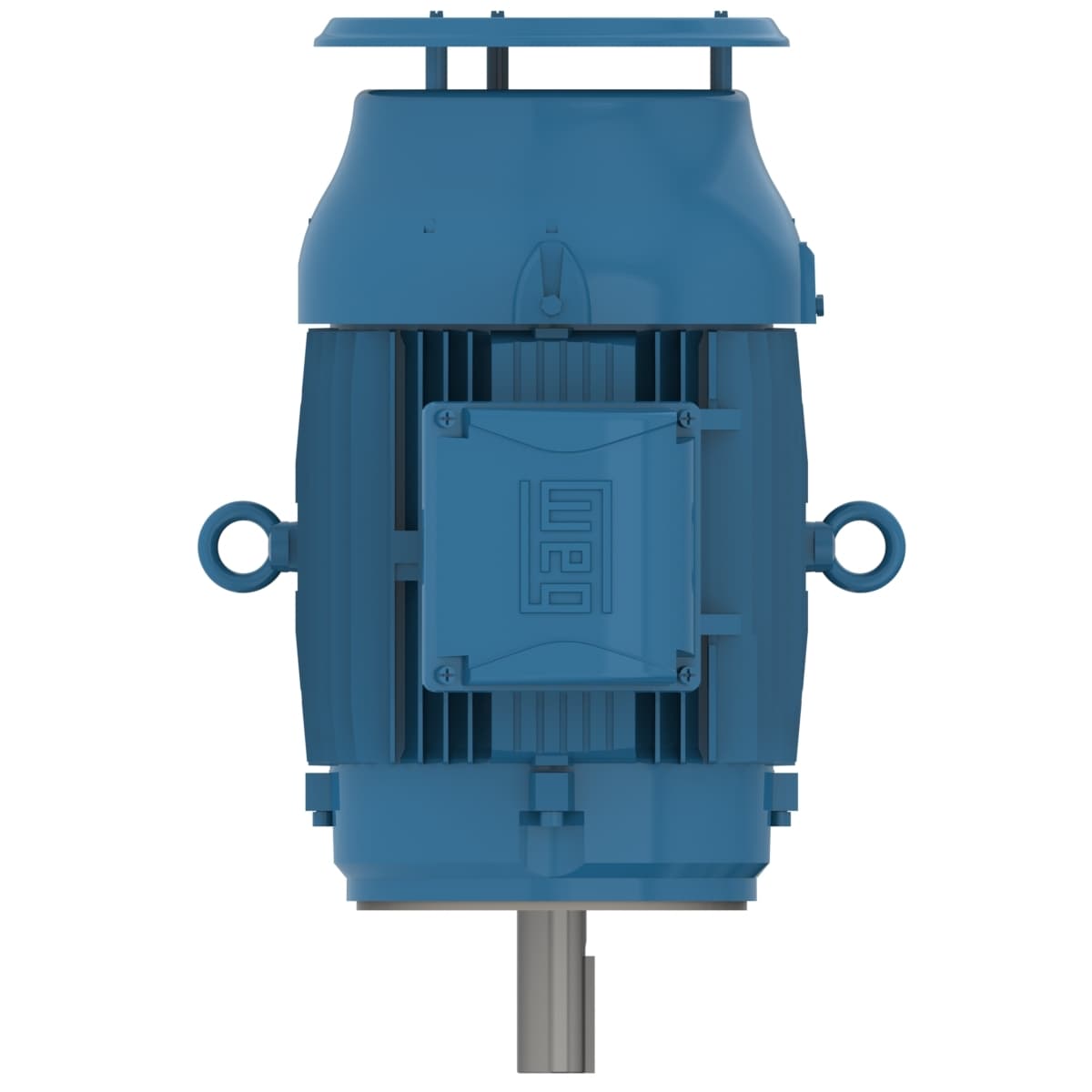

W22 NEMA Premium Efficiency 50 HP 4P 326TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 05018ET3ER326TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- No load current 47.0/23.5 A
- Temperature rise 80 K
- Number of poles 4
- Rated current 118/59.2 A
- Locked rotor torque 229 %
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Moment of inertia (J) 9.16 sq.ft.lb
- Noise level² 70.0 dB(A)
- Frame 326TC
- Rated torque 148 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Rated speed 1775 rpm
- Insulation Class F
- Standard NEMA MG-1
- Number of Poles 4
- Breakdown torque 270 %
- Altitude 1000 m.a.s.l.
- Flange C
- Output 50 HP (37 kW)
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Slip 1.39 %
- LRC 6.2x(Code G)
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Rated voltage 230/460 V
- Service factor 1.25
- Mounting W-6
- L. R. Amperes 734/367 A
- Design B
- Degree of Protection IP55
- Approx. weight³ 603 lb
- Output rating 50 HP
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05018ET3ER326TC-W22 Specs
