06012EP3EPM404/5Y WEG AC Motors
Part#:06012EP3EPM404/5Y
Manufacturer:WEG
Alt. Part#:7890355380574
Product Lifecycle:Active
Get a quick Quote!

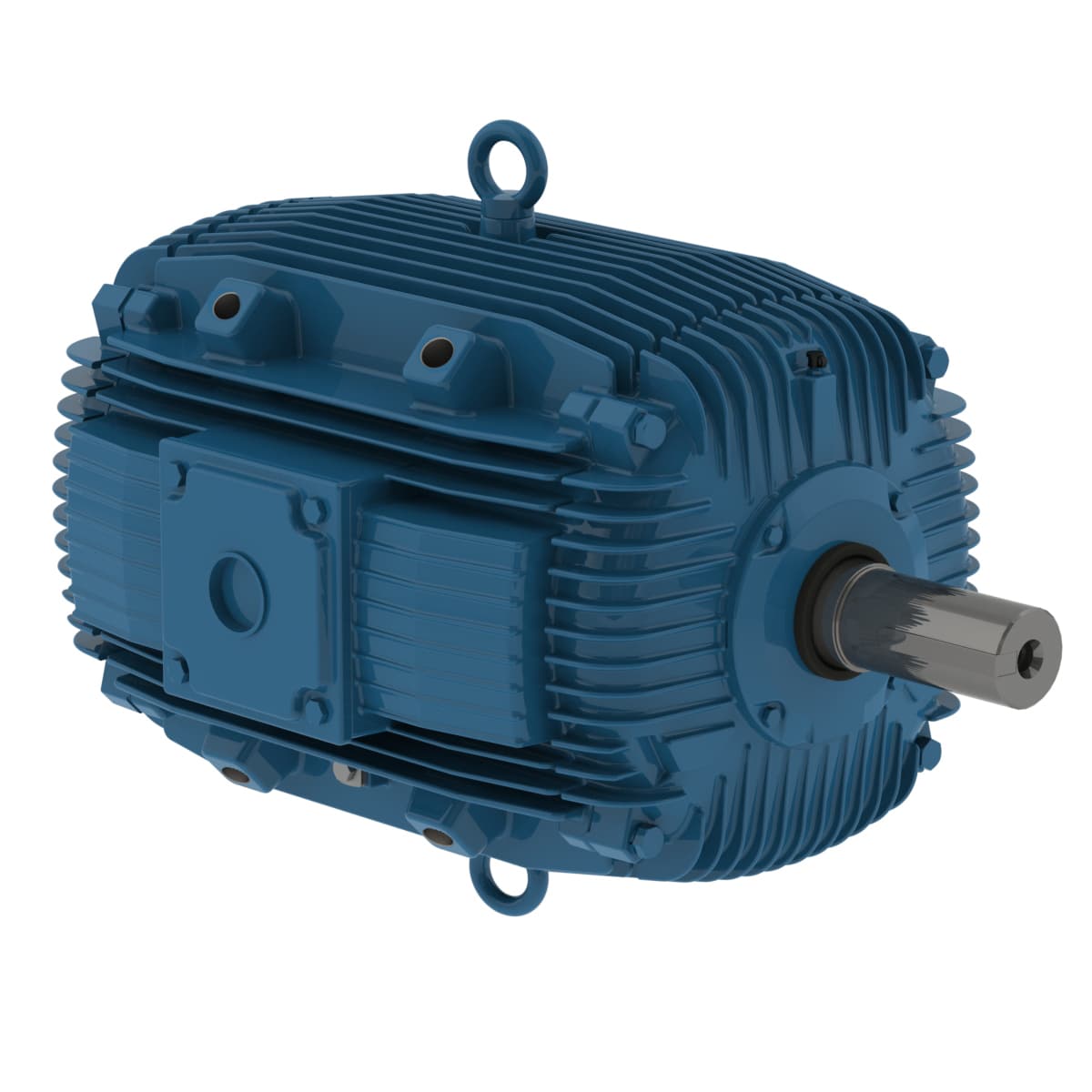

W21 High Efficiency 60 HP 6P 404/5T 3Ph 230/460 V 60 Hz IC418 - TEAO - Footless
Check out the 06012EP3EPM404/5Y WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1180 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Number of Poles 6
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Flange Without
- Material (FERT) 50006910
- Temperature rise 105 K
- Noise level² 65.0 dB(A)
- Frequency 60 Hz
- Rated torque 267 ft.lb
- Moment of inertia (J) 34.6 sq.ft.lb
- Mounting F-1
- Terminal box¹ Left position
- Rated current 140/70.2 A
- LRC 6.3x(Code G)
- Starting Method Direct On Line
- Degree of Protection IP56
- Frame 404/5T
- Breakdown torque 250 %
- Approx. weight³ 988 lb
- Synchronous speed 1200 rpm
- L. R. Amperes 885/442 A
- Design B
- Standard NEMA MG-1
- Output 60 HP (45 kW)
- Locked rotor time 57s (cold) 32s (hot)
- Number of poles 6
- Rated voltage 230/460 V
- Locked rotor torque 250 %
- Altitude 1000 m.a.s.l.
- Output rating 60 HP
- Slip 1.67 %
- No load current 50.0/25.0 A
- Ambient temperature 40°C to +40°C
- Enclosure IC418 - TEAO
- Rated speed 1180 rpm
- Service factor 1.25
- Insulation Class F
- Voltage 230/460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
