06036OT3E326TS-W40 WEG AC Motors
Part#:06036OT3E326TS-W40
Manufacturer:WEG
Alt. Part#:7909492253778
Product Lifecycle:Active
Get a quick Quote!

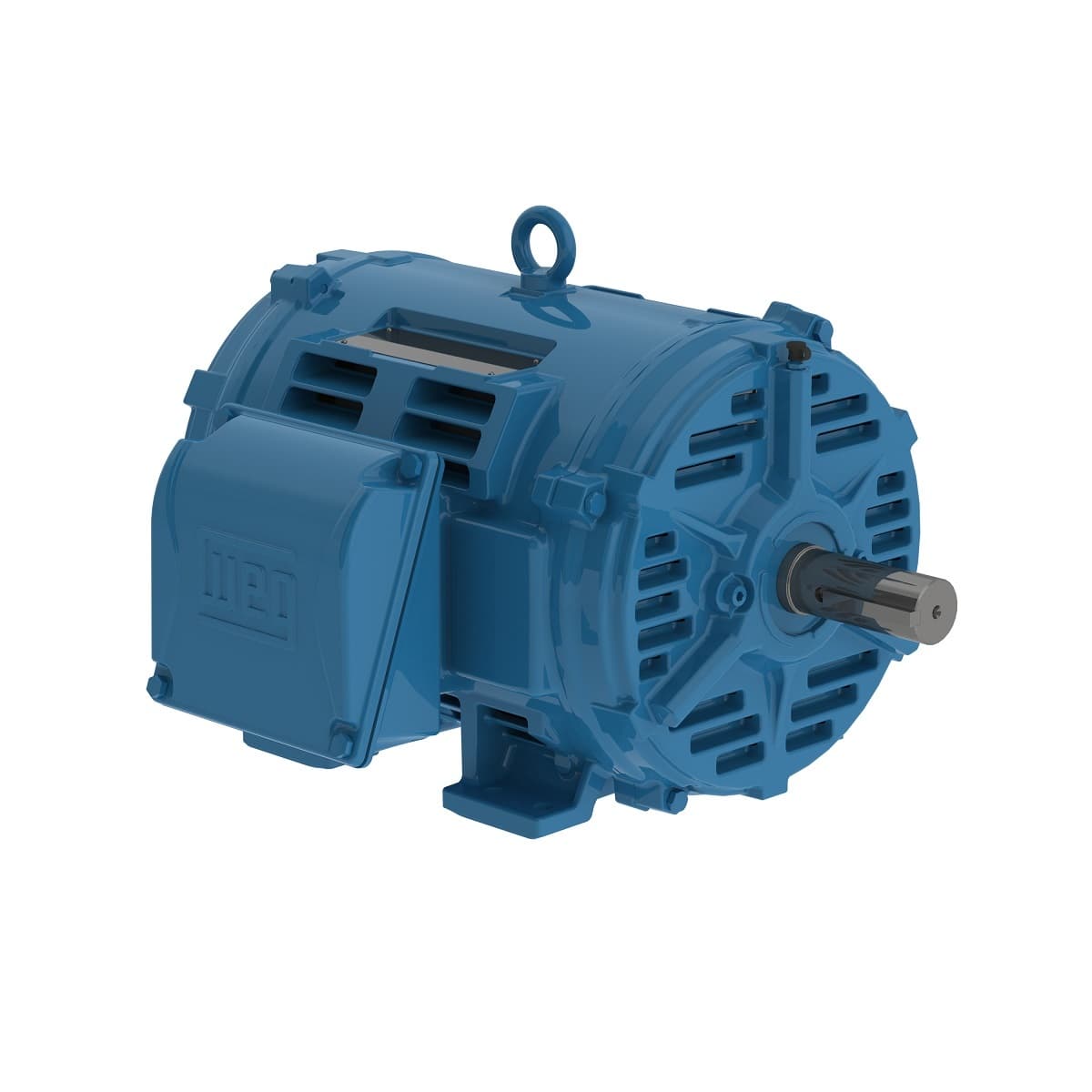

W40 NEMA Premium Efficiency 60 HP 2P 324/6TS 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 06036OT3E326TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frame 324/6TS
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Rated voltage 230/460 V
- Breakdown torque 229 %
- Approx. weight³ 472 lb
- Output 60 HP (45 kW)
- Moment of inertia (J) 3.82 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Output rating 60 HP
- Rated speed 3555 rpm
- Design B
- Mounting F-1
- Synchronous speed 3600 rpm
- LRC 6.3x(Code G)
- Locked rotor time 27s (cold) 15s (hot)
- Degree of Protection IP23
- Flange Without
- Number of Poles 2
- Rated torque 88.6 ft.lb
- Enclosure IC01 - ODP
- Slip 1.25 %
- No load current 40.0/20.0 A
- Duty Cycle Cont.(S1)
- Noise level² 75.0 dB(A)
- Frequency 60 Hz
- Insulation Class F
- Starting Method Direct On Line
- Number of poles 2
- L. R. Amperes 905/453 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated current 144/71.8 A
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06036OT3E326TS-W40 Specs
1-year warranty
