10012ET3HRB444T-W22 WEG AC Motors
Part#:10012ET3HRB444T-W22
Manufacturer:WEG
Alt. Part#:7891327100534
Product Lifecycle:Active
Get a quick Quote!

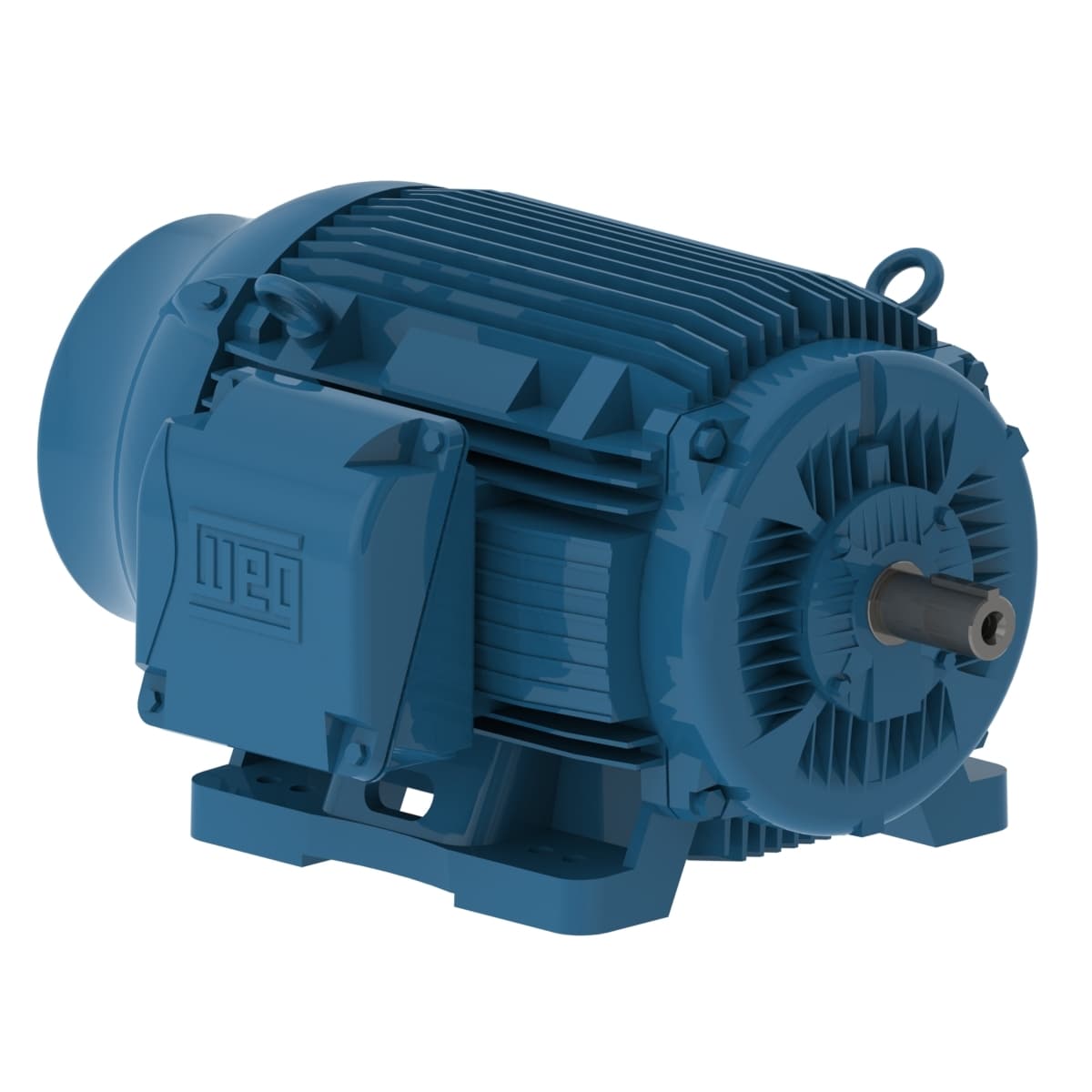

W22 NEMA Premium Efficiency 100 HP 6P 444/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10012ET3HRB444T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1189 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 1189 rpm
- Breakdown torque 250 %
- Ambient temperature -20°C to +40°C
- Output rating 100 HP
- Rated current 96.7 A
- Moment of inertia (J) 87.3 sq.ft.lb
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Locked rotor torque 220 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 1553 lb
- Frequency 60 Hz
- LRC 6.2x(Code G)
- Altitude 1000 m.a.s.l.
- Synchronous speed 1200 rpm
- Frame 444/5T
- Service factor 1.25
- Standard NEMA MG-1
- Rated voltage 575 V
- Insulation Class F
- Mounting F-1
- Flange Without
- Slip 0.92 %
- Rated torque 442 ft.lb
- Degree of Protection IP55
- Voltage 575 V
- L. R. Amperes 599 A
- Design B
- Rotation¹ Both (CW and CCW)
- Output 100 HP (75 kW)
- Locked rotor time 36s (cold) 20s (hot)
- Starting Method Direct On Line
- Number of Poles 6
- No load current 36.0 A
- Temperature rise 80 K
- Noise level² 69.0 dB(A)
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10012ET3HRB444T-W22 Specs
1-year warranty
