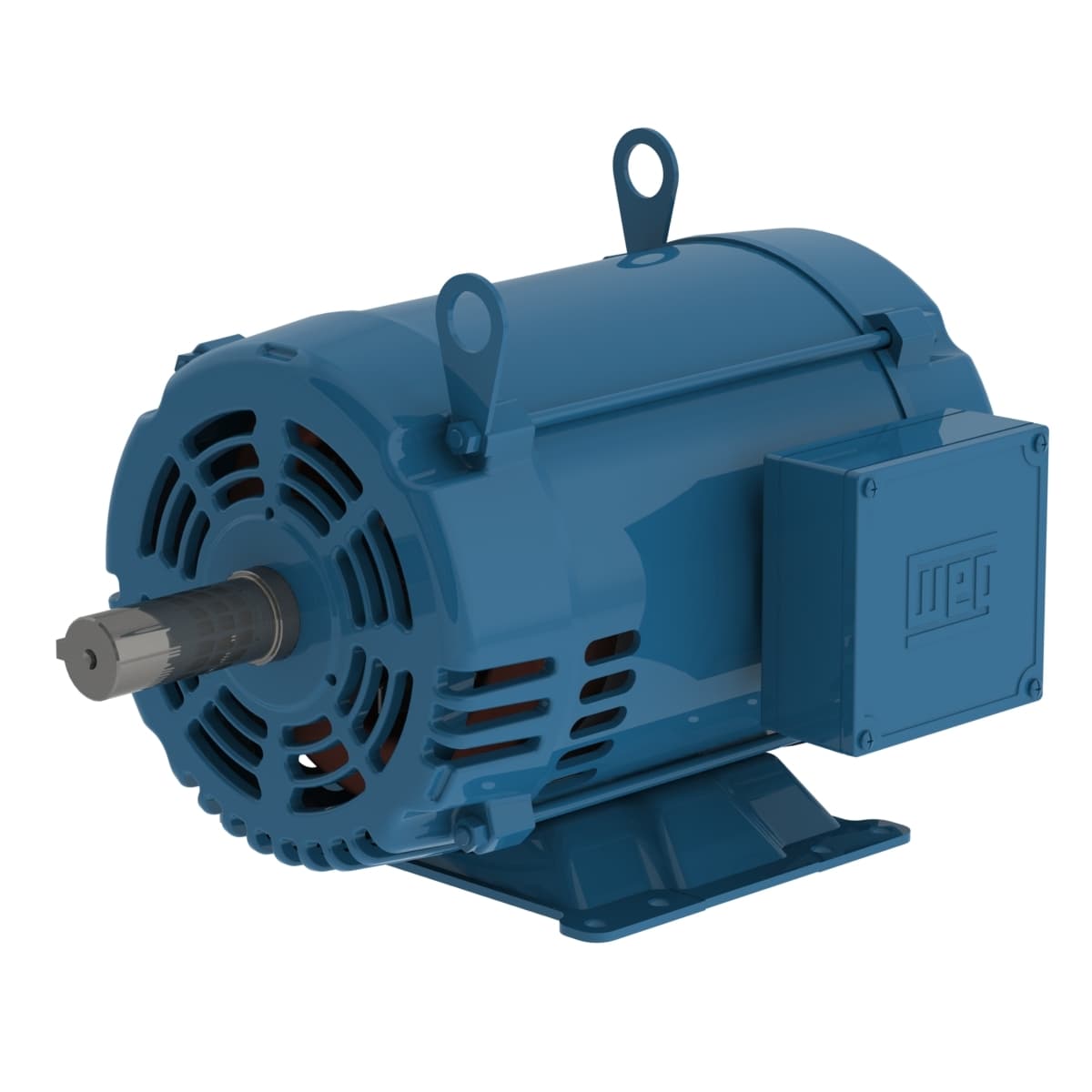

10016389 WEG AC Motors
Part#:10016389
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
General NEMA Premium Efficiency 7.5 HP 4P 213/5T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10016389 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 1.94 %
- Insulation Class F
- Duty Cycle Cont.(S1)
- LRC 7.5x(Code J)
- Ambient temperature -20°C to +40°C
- Noise level² 58.0 dB(A)
- Output 7.5 HP (5.5 kW)
- Locked rotor time 21s (cold) 12s (hot)
- Mounting F-2
- Synchronous speed 1800 rpm
- Number of Poles 4
- Rated torque 22.3 ft.lb
- Temperature rise 80 K
- Number of poles 4
- Rated speed 1765 rpm
- Locked rotor torque 200 %
- Degree of Protection IP21
- Voltage 230/460 V
- L. R. Amperes 135/67.7 A
- Moment of inertia (J) 0.9198 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Right position
- Rated voltage 230/460 V
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Flange Without
- Frequency 60 Hz
- Design B
- Approx. weight³ 103 lb
- Frame 213/5T
- No load current 7.60/3.80 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated current 18.1/9.03 A
- Breakdown torque 270 %
- Enclosure IC01 - ODP
- Output rating 7.5 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10016389 Specs
1-year warranty
