10036ET3H405TS-W22 WEG AC Motors
Part#:10036ET3H405TS-W22
Manufacturer:WEG
Alt. Part#:7891327548015
Product Lifecycle:Active
Get a quick Quote!

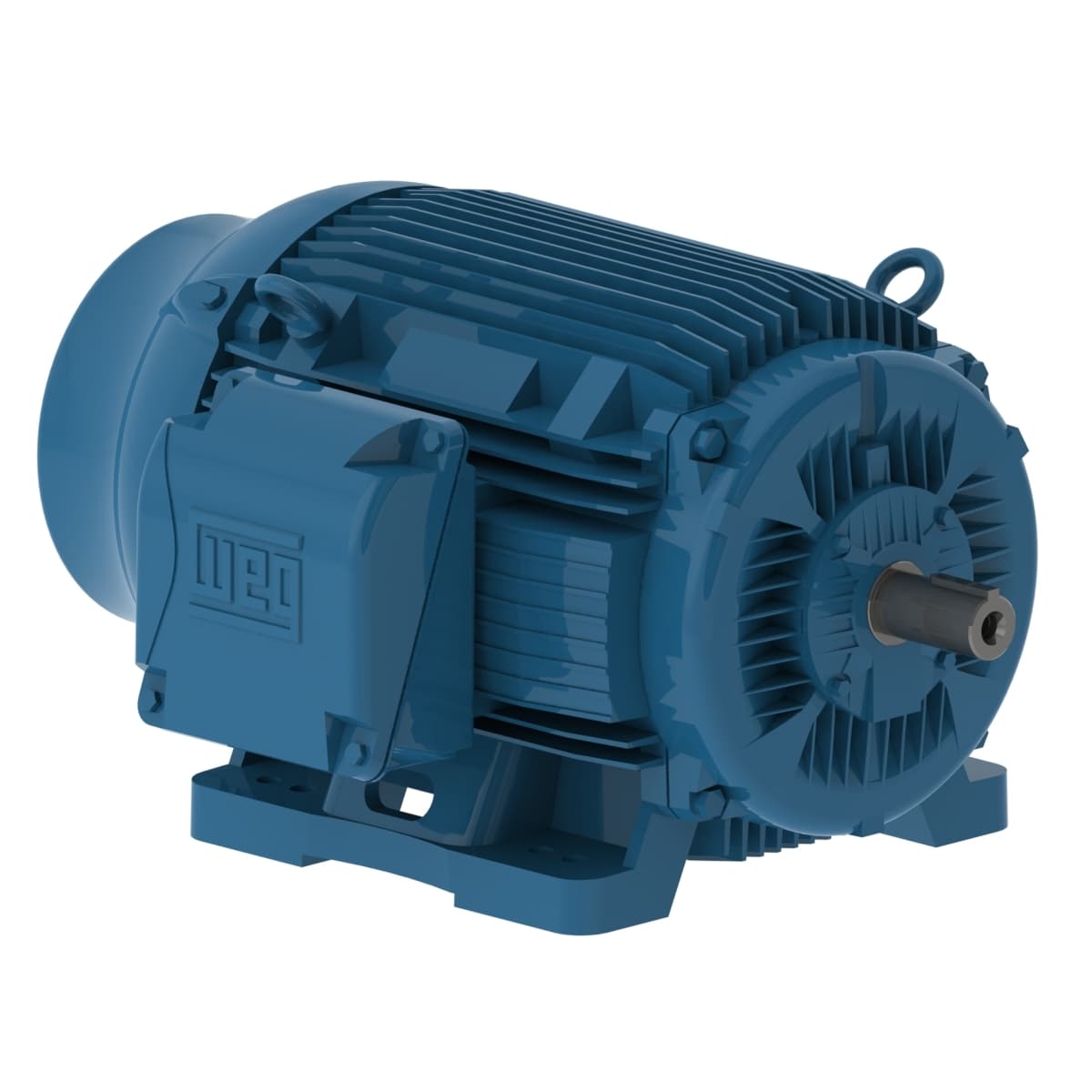

W22 NEMA Premium Efficiency 100 HP 2P 404/5TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10036ET3H405TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Frame 404/5TS
- L. R. Amperes 582 A
- Slip 1.53 %
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Rated current 89.6 A
- Temperature rise 80 K
- Noise level² 79.0 dB(A)
- Rated speed 3545 rpm
- Breakdown torque 260 %
- Enclosure IC411 - TEFC
- Rated torque 148 ft.lb
- Locked rotor time 25s (cold) 14s (hot)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1100 lb
- Rated voltage 575 V
- Moment of inertia (J) 13.2 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- LRC 6.5x(Code G)
- Insulation Class F
- Mounting F-1
- Flange Without
- Output 100 HP (75 kW)
- Locked rotor torque 240 %
- Standard NEMA MG-1
- Design B
- Degree of Protection IP55
- Voltage 575 V
- Number of Poles 2
- No load current 20.8 A
- Rotation¹ Both (CW and CCW)
- Output rating 100 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10036ET3H405TS-W22 Specs
1-year warranty
