10036OT3G365TS-RFVFD WEG AC Motors
Part#:10036OT3G365TS-RFVFD
Manufacturer:WEG
Alt. Part#:7909836062097
Product Lifecycle:Active
Get a quick Quote!

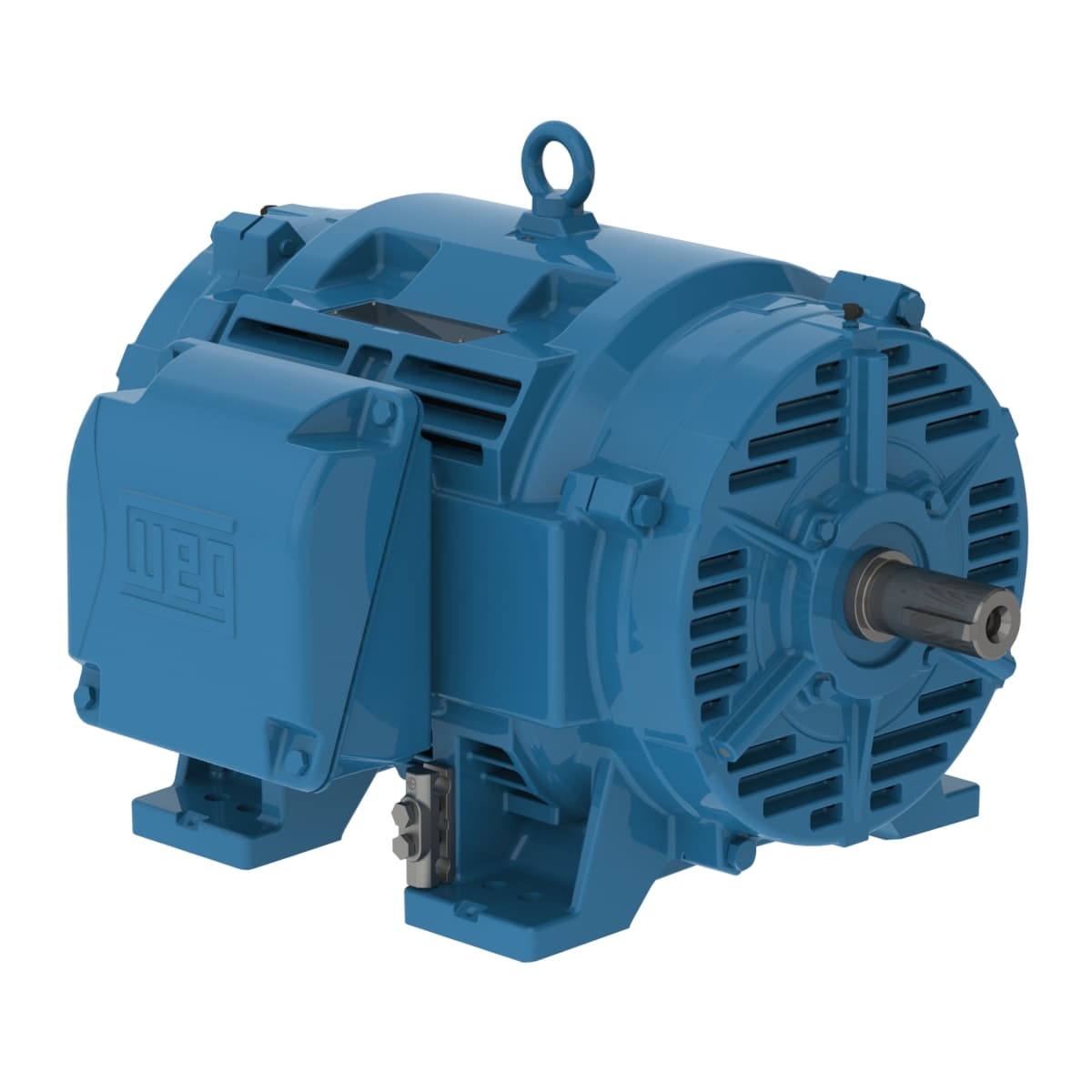

W40 NEMA Premium Efficiency 100 HP 2P 364/5TS 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 10036OT3G365TS-RFVFD WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed2965 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- No load current 48.0 A
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Frame 364/5TS
- Rated current 142 A
- Breakdown torque 340 %
- Noise level² 84.0 dB(A)
- L. R. Amperes 1136 A
- Rated torque 177 ft.lb
- Starting Method VFD
- Approx. weight³ 827 lb
- Rated speed 2965 rpm
- Duty Cycle Cont.(S1)
- Flange Without
- Output 100 HP (75 kW)
- Service factor 1.15
- Standard NEMA MG-1
- Number of Poles 2
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- LRC 8.0x(Code J)
- Locked rotor time 25s (cold) 14s (hot)
- Mounting F-1
- Frequency 50 Hz
- Degree of Protection IP23
- Output rating 100 HP
- Rated voltage 380 V
- Locked rotor torque 310 %
- Moment of inertia (J) 9.20 sq.ft.lb
- Enclosure IC01 - ODP
- Slip 1.17 %
- Design A
- Temperature rise 105 K
- Rotation¹ Both (CW and CCW)
- Voltage 460//380 V
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10036OT3G365TS-RFVFD Specs
