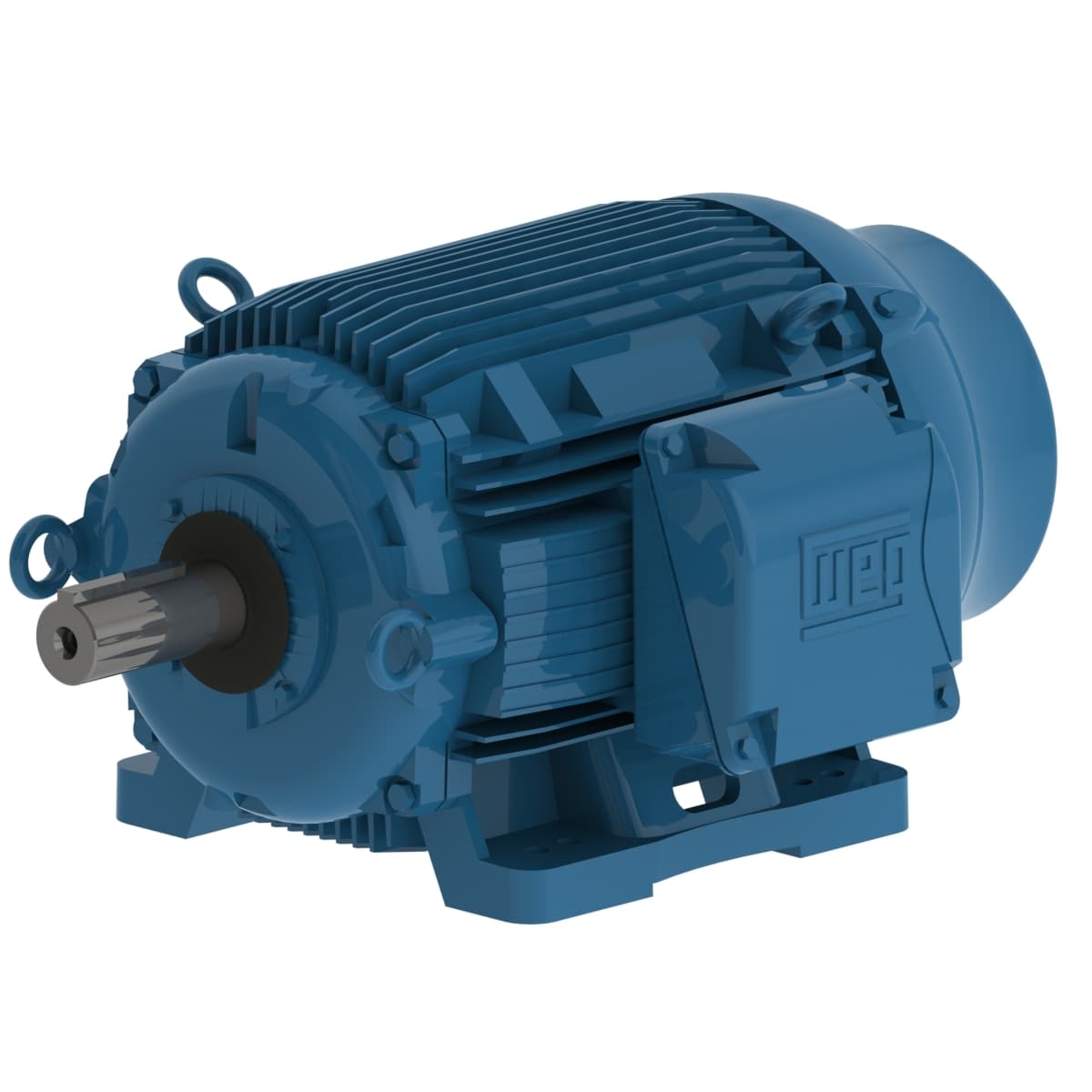

10089EP3PCT444V-W22 WEG AC Motors
Part#:10089EP3PCT444V-W22
Manufacturer:WEG
Alt. Part#:7909018694030
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 25/100 HP 8/4P 444/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10089EP3PCT444V-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25/100 HP
- Rated Speed1785 rpm
- Number of Poles45508 Pole
- Voltage200 V
- Flange TypeWithout
- Output 100 HP (75 kW)
- Rated speed 1785 rpm
- Number of Poles 8/4
- L. R. Amperes 2190 A
- Slip 0.83 %
- Rated voltage 200 V
- Frequency 60 Hz
- Moment of inertia (J) 70.5 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Locked rotor time 32s (cold) 18s (hot)
- Mounting F-2
- Voltage 200 V
- Duty Cycle Cont.(S1)
- Synchronous speed 900/1800 rpm
- Rated current 274 A
- Breakdown torque 300 %
- Temperature rise 80 K
- Approx. weight³ 0.0 lb
- Frame 444/5T
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Number of poles 8/4
- LRC 8.0x(Code J)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Flange Without
- No load current 89.7 A
- Degree of Protection IP55
- Locked rotor torque 240 %
- Noise level² 74.0 dB(A)
- Output rating 25/100 HP
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Rated torque 294 ft.lb
- Standard NEMA MG-1
- Terminal box¹ Right position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10089EP3PCT444V-W22 Specs
1-year warranty
