11441311 WEG AC Motors
Part#:11441311
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

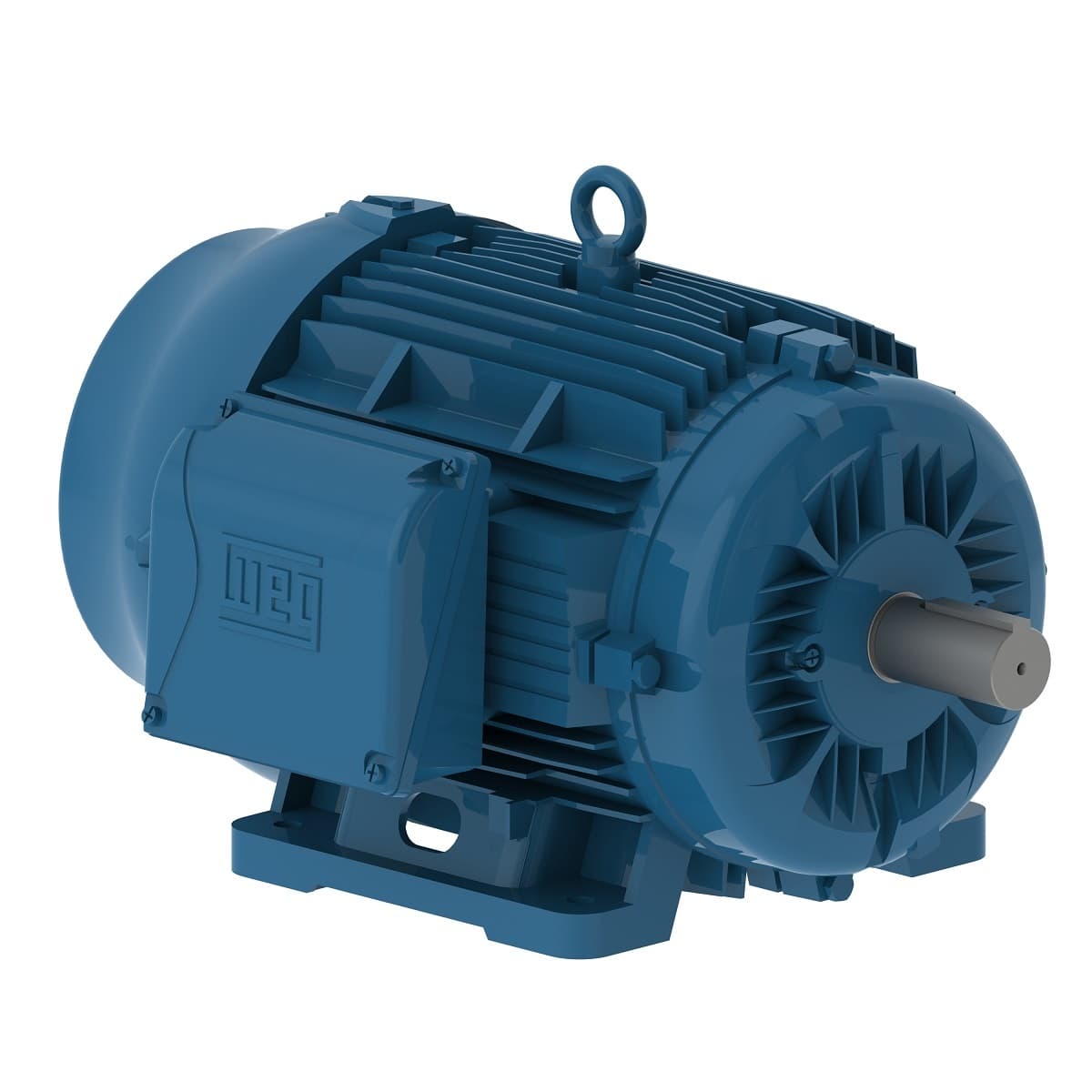

W22 NEMA Premium Efficiency 15 HP 4P 254T 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11441311 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 4
- Rated torque 44.6 ft.lb
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- No load current 14.0/7.00 A
- Locked rotor time 55s (cold) 31s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 15 HP
- Output 15 HP (11 kW)
- Design B
- Mounting F-1
- Synchronous speed 1800 rpm
- Slip 1.78 %
- Insulation Class F
- Enclosure IC411 - TEFC
- Rated speed 1768 rpm
- L. R. Amperes 230/115 A
- Degree of Protection IP55
- Standard NEMA MG-1
- Material (FERT) 50006910
- Moment of inertia (J) 2.62 sq.ft.lb
- Ambient temperature -20°C to +40°C
- LRC 6.4x(Code G)
- Rated current 36.0/18.0 A
- Starting Method Direct On Line
- Noise level² 64.0 dB(A)
- Frequency 60 Hz
- Locked rotor torque 240 %
- Temperature rise 80 K
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Rotation¹ Both (CW and CCW)
- Number of poles 4
- Frame 254T
- Service factor 1.25
- Voltage 230/460 V
- Flange Without
- Approx. weight³ 297 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11441311 Specs
