11584060 WEG AC Motors
Part#:11584060
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

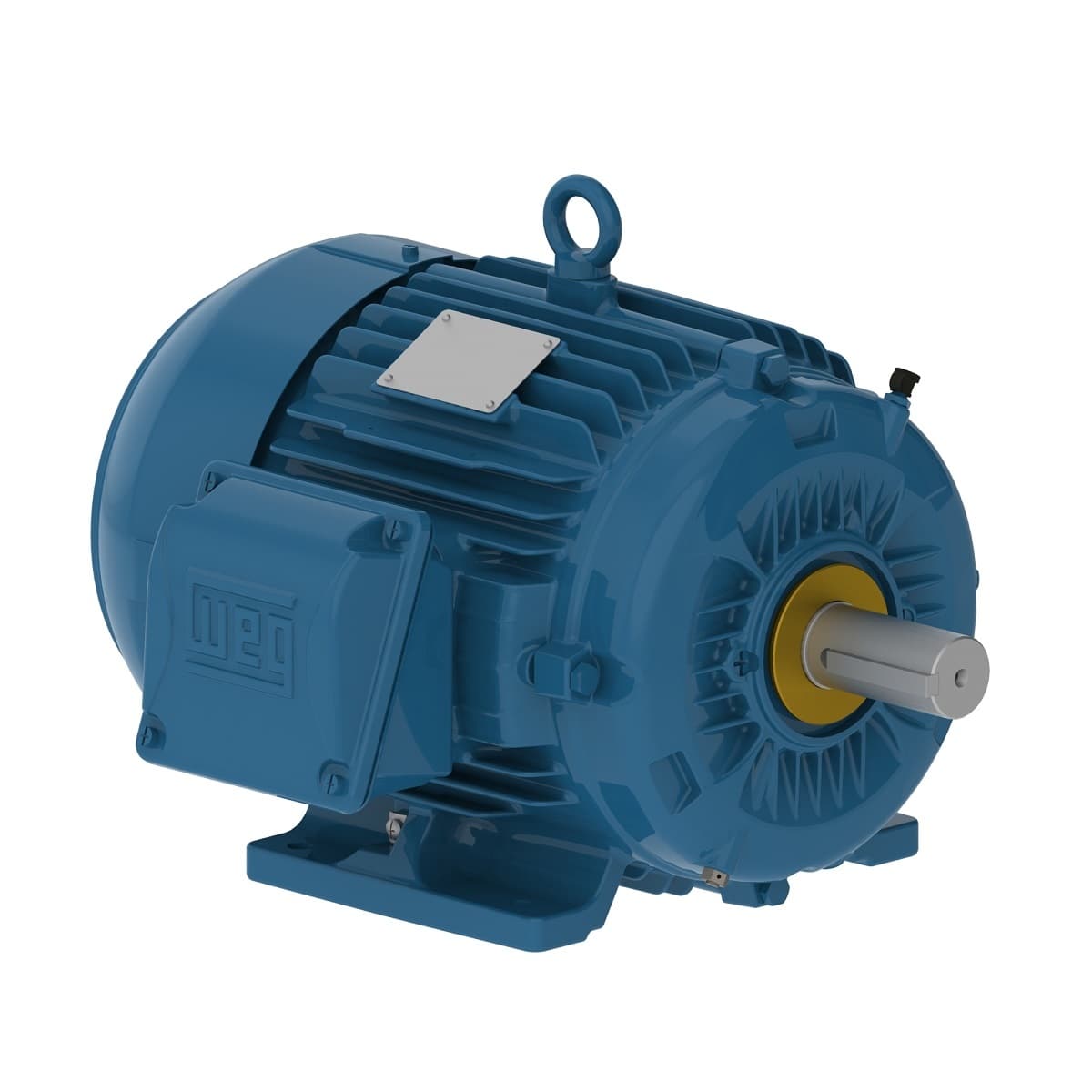

W22 IEEE 841 NEMA Premium Efficiency 1.5 HP 6P 182T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11584060 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 2.50 %
- Rated torque 6.73 ft.lb
- Duty Cycle Cont.(S1)
- Voltage 460 V
- Frequency 60 Hz
- Service factor 1.25
- Enclosure IC411 - TEFC
- Output 1.5 HP (1.1 kW)
- LRC 7.8x(Code M)
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated voltage 460 V
- Rated speed 1170 rpm
- Locked rotor torque 320 %
- Insulation Class F
- Noise level² 52.0 dB(A)
- Standard NEMA MG-1
- Output rating 1.5 HP
- Breakdown torque 400 %
- Altitude 1000 m.a.s.l.
- L. R. Amperes 19.8 A
- Locked rotor time 28s (cold) 16s (hot)
- Ambient temperature -20°C to +40°C
- Flange Without
- Number of Poles 6
- Moment of inertia (J) 0.4879 sq.ft.lb
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Frame 182T
- No load current 1.63 A
- Temperature rise 80 K
- Approx. weight³ 94.1 lb
- Rated current 2.54 A
- Design B
- Mounting F-1
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11584060 Specs
