11745102 WEG AC Motors
Part#:11745102
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

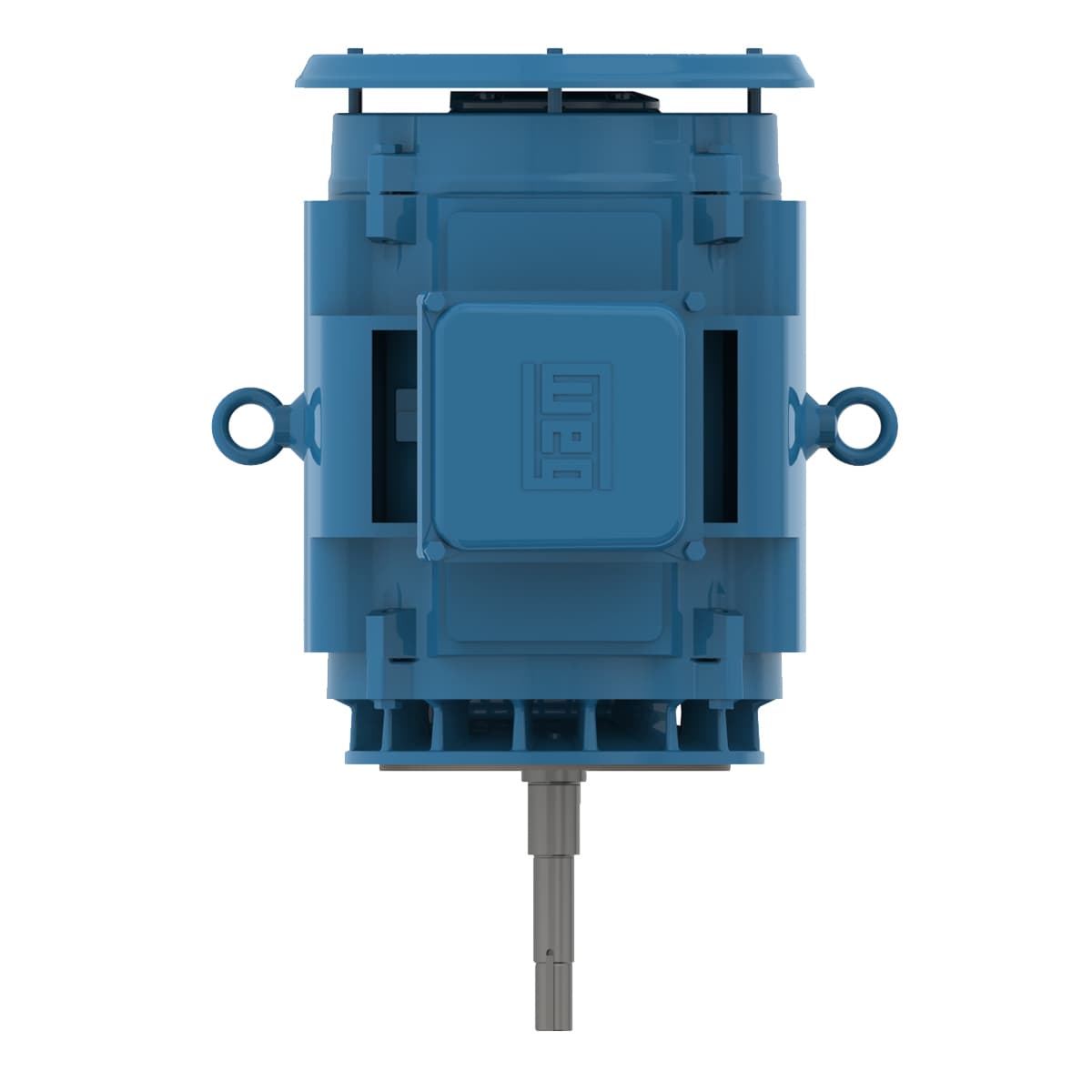

Close Coupled Pump High Efficiency 50 HP 2P 324JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 11745102 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 324JP
- Design B
- Degree of Protection IP23
- Output rating 50 HP
- LRC 6.2x(Code G)
- Number of Poles 2
- Output 50 HP (37 kW)
- Locked rotor torque 240 %
- Service factor 1.15
- Enclosure IC01 - ODP
- Rated current 46.7 A
- Duty Cycle Cont.(S1)
- Noise level² 74.0 dB(A)
- L. R. Amperes 290 A
- Rated voltage 575 V
- Rated torque 73.8 ft.lb
- Moment of inertia (J) 3.30 sq.ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Number of poles 2
- Rated speed 3560 rpm
- Insulation Class F
- Locked rotor time 50s (cold) 28s (hot)
- Starting Method Direct On Line
- Approx. weight³ 458 lb
- Synchronous speed 3600 rpm
- Mounting W-6
- Flange C
- Voltage 575 V
- Slip 1.11 %
- Breakdown torque 220 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Frequency 60 Hz
- No load current 12.0 A
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
