11807570 WEG AC Motors
Part#:11807570
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

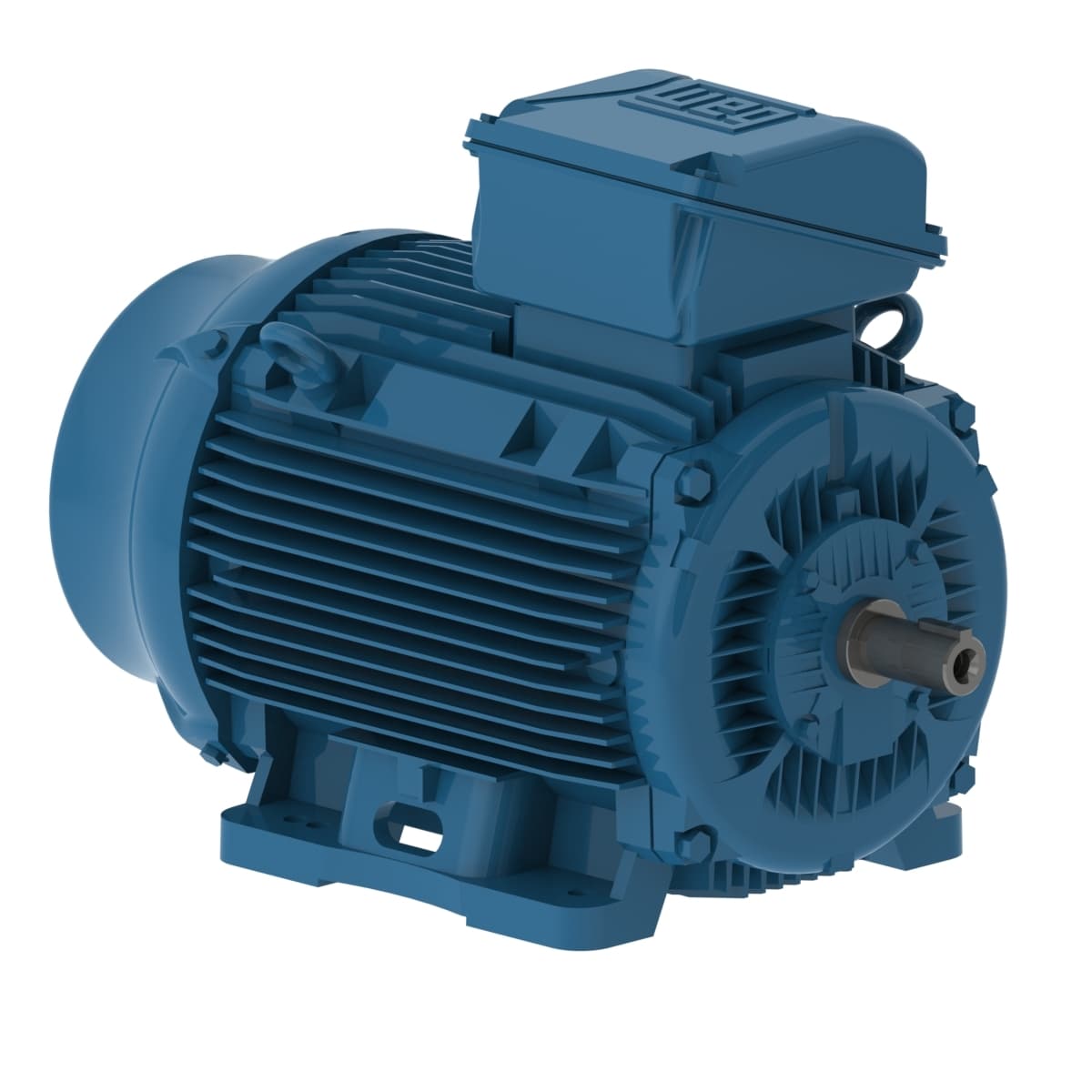

W22 NEMA Premium Efficiency 60 HP 2P 364/5TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11807570 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Rated current 134/67.0 A
- Insulation Class F
- Starting Method Direct On Line
- Standard NEMA MG-1
- L. R. Amperes 884/442 A
- Locked rotor time 25s (cold) 14s (hot)
- Mounting F-3
- Number of Poles 2
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Frequency 60 Hz
- Rated torque 88.6 ft.lb
- Degree of Protection IP55
- Voltage 230/460//380 V
- Rated speed 3555 rpm
- Breakdown torque 260 %
- Noise level² 79.0 dB(A)
- Output rating 60 HP
- Output 60 HP (45 kW)
- No load current 32.0/16.0 A
- Duty Cycle Cont.(S1)
- Terminal box¹ Top
- LRC 6.6x(Code G)
- Temperature rise 80 K
- Approx. weight³ 866 lb
- Frame 364/5TS
- Moment of inertia (J) 10.6 sq.ft.lb
- Enclosure IC411 - TEFC
- Flange Without
- Slip 1.25 %
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11807570 Specs
