11836566 WEG AC Motors
Part#:11836566
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

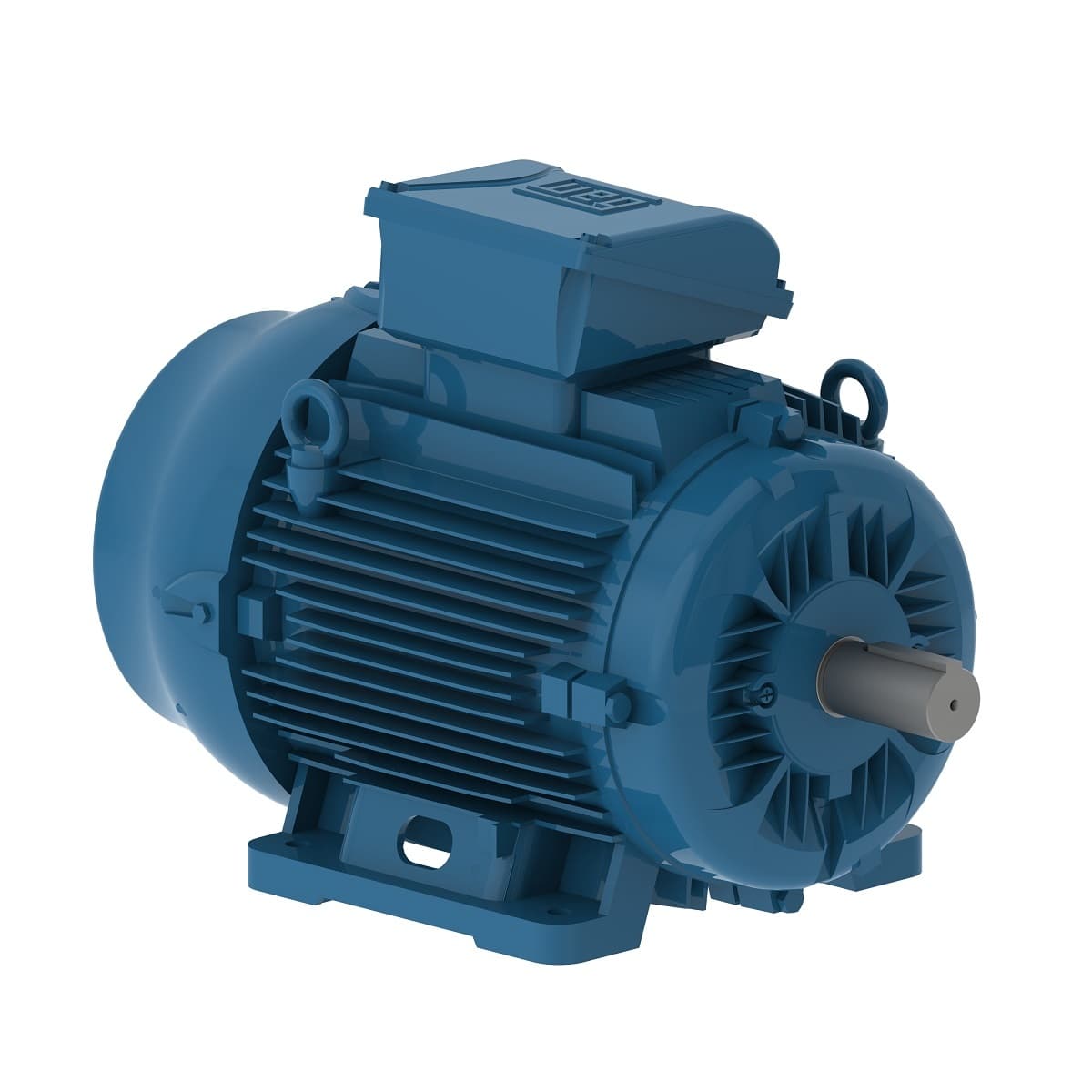

W22 NEMA Premium Efficiency 30 HP 4P 286TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11836566 WEG price in the box on the right side or send a quick quote.
Product Details
- LRC 6.1x(Code G)
- Ambient temperature -20°C to +40°C
- Number of Poles 4
- Rated torque 89.0 ft.lb
- Mounting F-3
- Frequency 60 Hz
- Output 30 HP (22 kW)
- No load current 9.84 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Noise level² 63.0 dB(A)
- Frame 286TS
- Slip 1.67 %
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Insulation Class F
- Degree of Protection IP55
- Flange Without
- Rated current 28.1 A
- Service factor 1.25
- Locked rotor time 36s (cold) 20s (hot)
- Approx. weight³ 445 lb
- Number of poles 4
- Rated speed 1770 rpm
- Design B
- Output rating 30 HP
- L. R. Amperes 171 A
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Rated voltage 575 V
- Moment of inertia (J) 5.85 sq.ft.lb
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Top
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
