11879196 WEG AC Motors
Part#:11879196
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

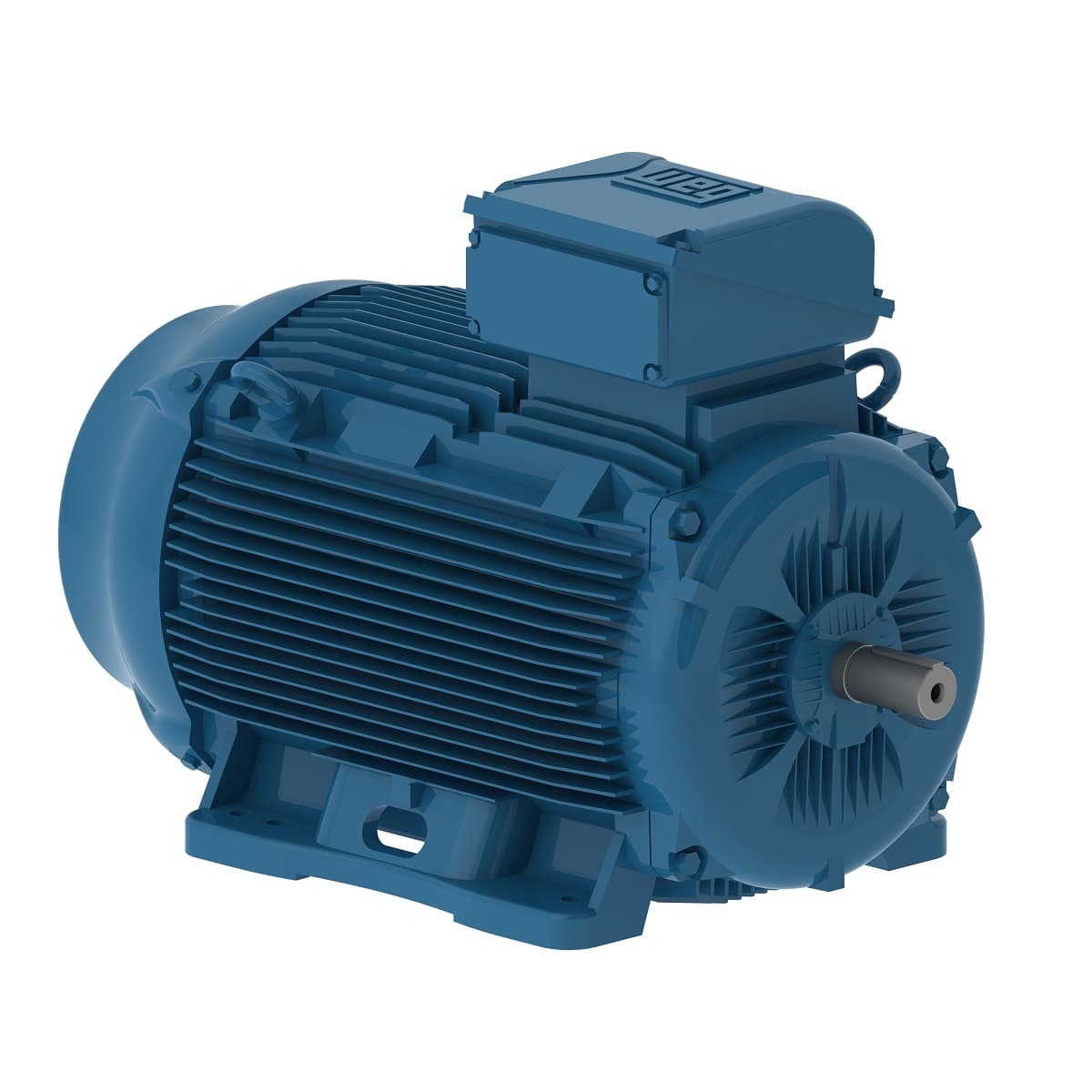

W22 NEMA Premium Efficiency 200 HP 4P 504/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11879196 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 200 HP (150 kW)
- Moment of inertia (J) 76.2 sq.ft.lb
- Number of poles 4
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Rated voltage 460 V
- Locked rotor time 39s (cold) 22s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 200 HP
- Rated current 228 A
- Breakdown torque 229 %
- Service factor 1.15
- Standard NEMA MG-1
- No load current 65.0 A
- Frame 504/5T
- Starting Method Direct On Line
- Mounting F-3
- Slip 0.67 %
- Locked rotor torque 229 %
- Duty Cycle Cont.(S1)
- Flange Without
- Frequency 60 Hz
- Rated torque 587 ft.lb
- Temperature rise 80 K
- Approx. weight³ 2444 lb
- Rated speed 1788 rpm
- Degree of Protection IP55
- Terminal box¹ Top
- L. R. Amperes 1436 A
- Design B
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- LRC 6.3x(Code G)
- Insulation Class F
- Noise level² 75.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11879196 Specs
1-year warranty
