11947084 WEG AC Motors
Part#:11947084
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

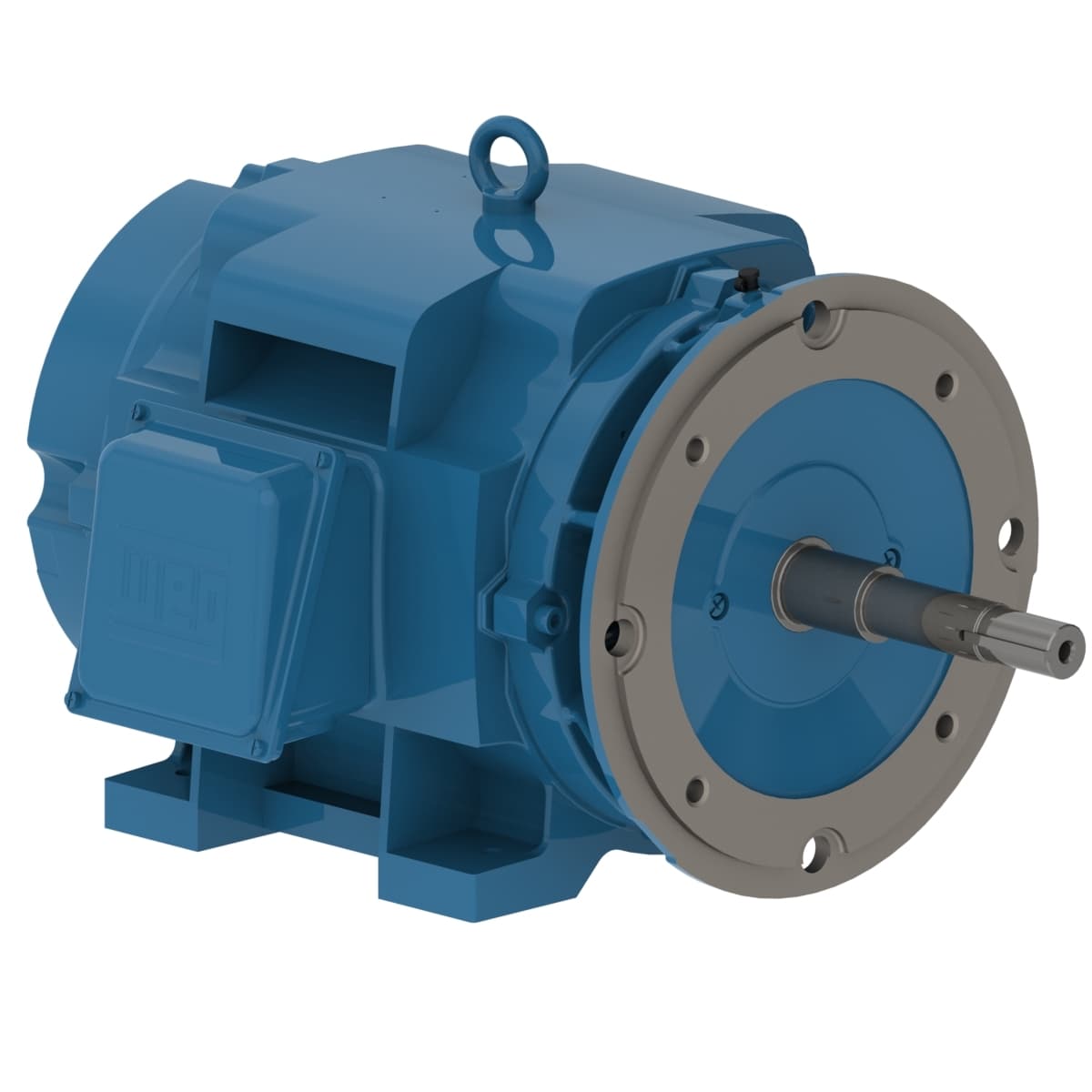

Close Coupled Pump High Efficiency 50 HP 2P 324JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 11947084 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3560 rpm
- Starting Method Direct On Line
- Output rating 50 HP
- Terminal box¹ Left position
- Locked rotor time 50s (cold) 28s (hot)
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- LRC 6.2x(Code G)
- Slip 1.11 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 516 lb
- Frame 324JP
- Breakdown torque 220 %
- Service factor 1.15
- Number of poles 2
- Rated current 46.7 A
- Moment of inertia (J) 3.30 sq.ft.lb
- Mounting F-1
- Number of Poles 2
- Rated torque 73.8 ft.lb
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Output 50 HP (37 kW)
- L. R. Amperes 290 A
- Insulation Class F
- Noise level² 74.0 dB(A)
- Flange C
- Rated voltage 575 V
- No load current 12.0 A
- Degree of Protection IP23
- Frequency 60 Hz
- Design B
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Locked rotor torque 240 %
- Enclosure IC01 - ODP
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11947084 Specs
1-year warranty
