12338915 WEG AC Motors
Part#:12338915
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

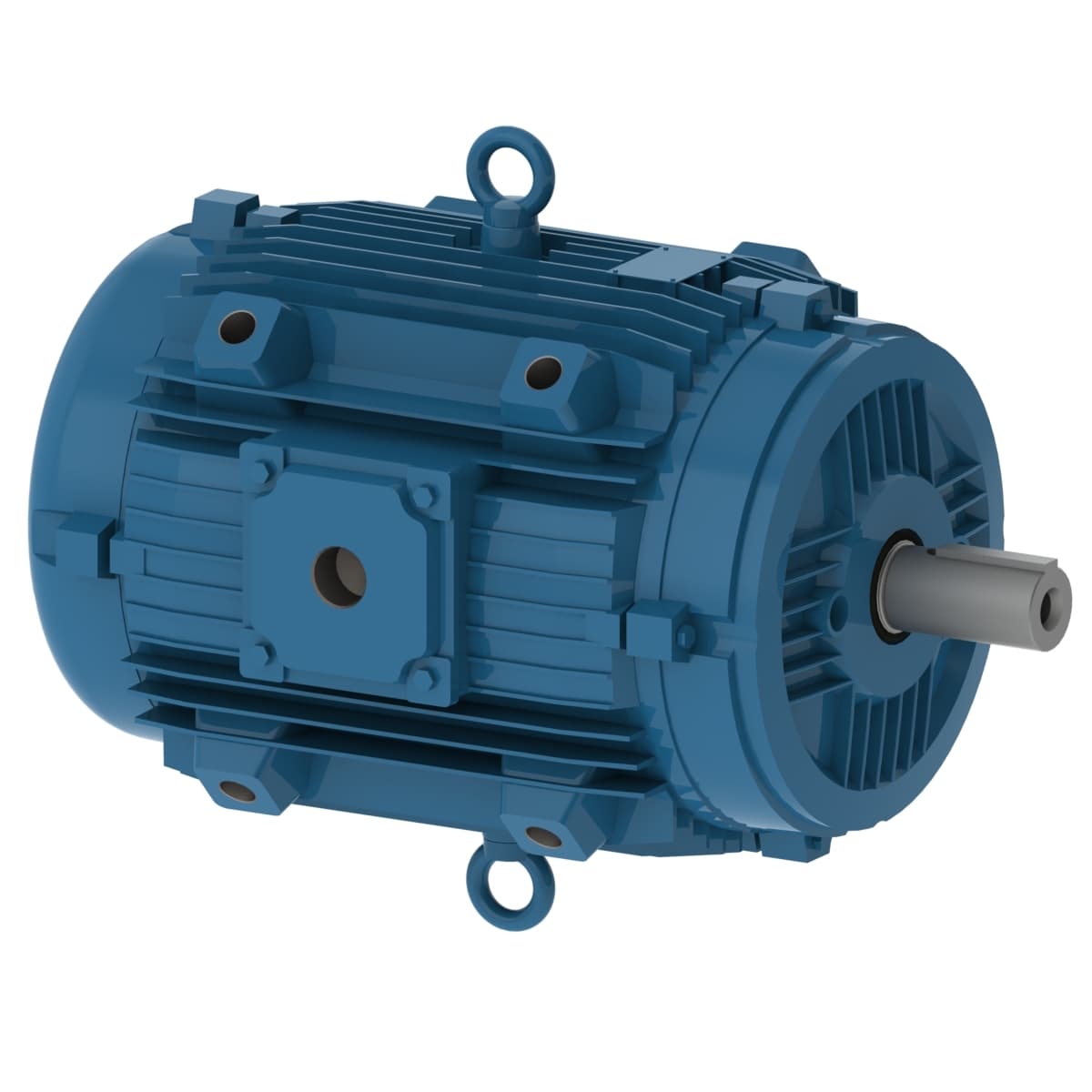

W21 NEMA Premium Efficiency 30 HP 6P 326Y 3Ph 208-230/460 V 60 Hz IC418 - TEAO - Footless
Check out the 12338915 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Locked rotor torque 229 %
- Mounting F-1
- Approx. weight³ 604 lb
- Slip 2.08 %
- Insulation Class F
- Noise level² 62.0 dB(A)
- Rated current 79.1-71.5/35.7 A
- Moment of inertia (J) 13.2 sq.ft.lb
- Temperature rise 105 K
- Output 30 HP (22 kW)
- Design B
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Material (FERT) 50006910
- Breakdown torque 250 %
- Duty Cycle Cont.(S1)
- Number of poles 6
- Number of Poles 6
- No load current 30.2-35.0/17.5 A
- Altitude 1000 m.a.s.l.
- Synchronous speed 1200 rpm
- L. R. Amperes 482-436/218 A
- Service factor 1.25
- Degree of Protection IP55
- Flange Without
- Frame 326Y
- Locked rotor time 50s (cold) 28s (hot)
- Starting Method Direct On Line
- Output rating 30 HP
- Rated speed 1175 rpm
- Rated torque 134 ft.lb
- Enclosure IC418 - TEAO
- Voltage 208-230/460 V
- Rated voltage 208-230/460 V
- LRC 6.1x(Code G)
- Ambient temperature 40°C to +40°C
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
