12676923 WEG AC Motors
Part#:12676923
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

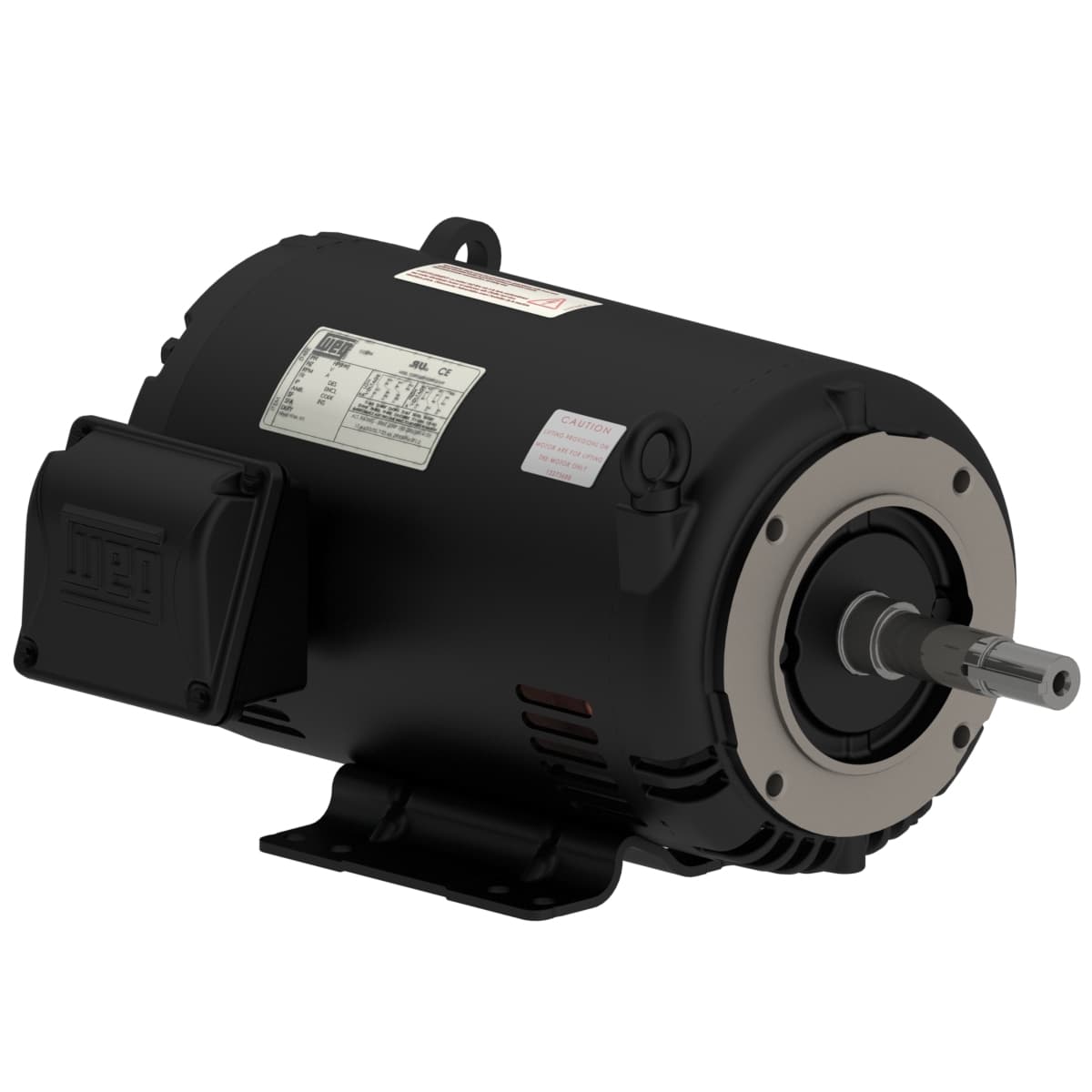

Rolled Steel JM Pump High Efficiency 5 HP 2P 182/4JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12676923 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- Moment of inertia (J) 0.1217 sq.ft.lb
- Approx. weight³ 58.3 lb
- Terminal box¹ Left position
- Number of Poles 2
- L. R. Amperes 87.4/43.7 A
- Temperature rise 80 K
- Voltage 230/460//190-220/380-415 V
- Breakdown torque 280 %
- Noise level² 65.0 dB(A)
- Number of poles 2
- Frequency 60 Hz
- Rated torque 7.48 ft.lb
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Frame 182/4JM
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Locked rotor torque 170 %
- Flange C
- Slip 2.50 %
- Design B
- Enclosure IC01 - ODP
- Output rating 5 HP
- Rated current 12.5/6.24 A
- Output 5 HP (3.7 kW)
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated speed 3510 rpm
- LRC 7.0x(Code H)
- Insulation Class F
- Mounting F-1
- No load current 4.60/2.30 A
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12676923 Specs
