12822575 WEG AC Motors
Part#:12822575
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

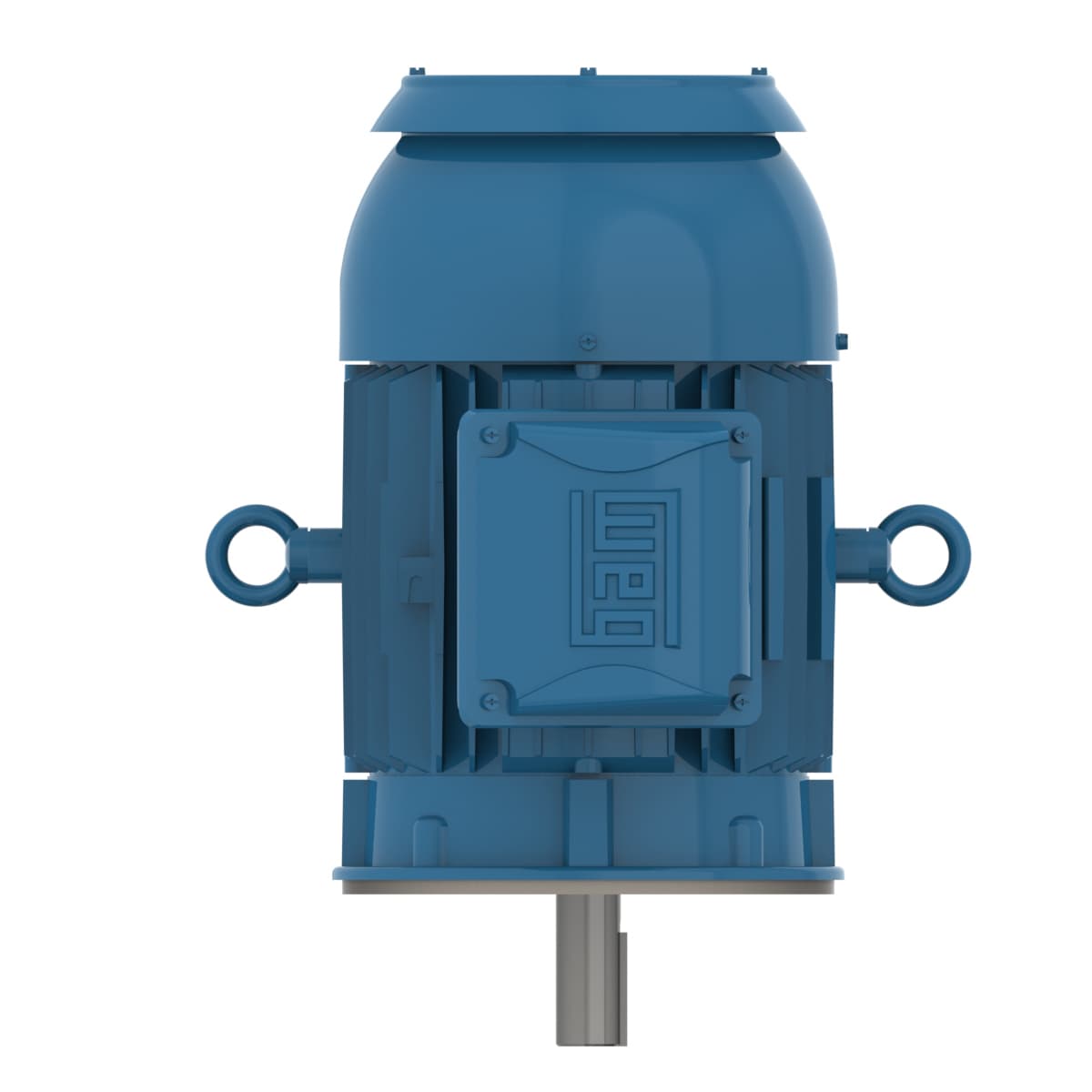

W22 High Efficiency 3 HP 6P 213TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 12822575 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 57.9/28.9 A
- Insulation Class F
- Enclosure IC411 - TEFC
- Output rating 3 HP
- Frequency 60 Hz
- Design B
- Mounting W-6
- Synchronous speed 1200 rpm
- LRC 6.7x(Code J)
- Duty Cycle Cont.(S1)
- Approx. weight³ 134 lb
- Number of poles 6
- Rated speed 1170 rpm
- No load current 5.00/2.50 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Flange C
- Rated current 8.64/4.32 A
- Breakdown torque 240 %
- Starting Method Direct On Line
- Number of Poles 6
- Locked rotor time 136s (cold) 76s (hot)
- Degree of Protection IP55
- Voltage 230/460//380 V
- Rated voltage 230/460 V
- Rated torque 13.5 ft.lb
- Ambient temperature -20°C to +40°C
- Output 3 HP (2.2 kW)
- Moment of inertia (J) 0.9933 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Slip 2.50 %
- Service factor 1.25
- Noise level² 55.0 dB(A)
- Terminal box¹ Left position
- Frame 213TC
- Locked rotor torque 180 %
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
